Sony URX-P03D Large display and small size receiver

Sony URX-P03D designed to fit even small camcorders or DSLR cameras

Product Code: URXP03D

Discontinued
review

Click here for Specifications

URX-P30D is designed to be coupled with the existing Sony UWP-D11 of the same frequency. If you have already owed the D11 you need another one x UTX-B03 belt-pack transmitter ( of the same frequency of course ). With this configuration you will now be able to receive 2 channel of audio signal into this URX-P30D.

2 channel portable receiver for high quality sound for ENG/EFP productions
The URX-P03D 2-channel portable receiver forms part of a complete UWP-D audio system offering the sound quality of digital audio processing combined with the reliability of analogue FM modulation. The URX-P03D offers wide frequency coverage with up to 72 MHz bandwidth (depending on region) across a wide range of channels, with a choice of models to choose from. Easy-to-use features include a large display and small size to fit neatly on any size camcorder or DSLR camera, automatic channel setting function, headphone output, USB connection for power supply and line input availability. The receiver also has external mic input for an additional wired microphone and 3 channel mixer function. The UWP-D Series system provides superb transient response performance for all ENG / EFP production applications.

2 channel portable receiver
Digital Audio Processing for high quality sound

Improves transient response performance between the UWP-D transmitter and receiver, which will provide impressive natural sound quality compared to conventional analogue wireless systems.

External mic input for additional wired microphone
This portable receiver has an external mic input connector for additional wired microphone. It also has a 3 channel mixer function for the two wireless microphones and one wired microphone.

Wide frequency coverage with choice of channels available
The extra wide switching bandwidth covers a wide area, with a wide choice of channels available across multiple models - please refer to product specifications for more information.

Large display and small size receiver

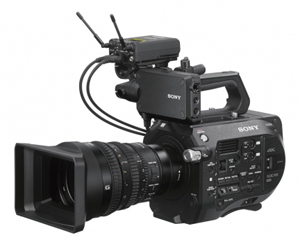

The receiver features a large display for ease of use, while its small size means it fits neatly on any size camcorder or DSLR camera.

Easy to use features
Automatic channel setting function, headphone output, USB connection for power supply and line input availability.

UWP-D digital audio processing for high quality sound
The UWP-D Series wireless microphone systems uses Sony Digital Audio Processing to improve sound quality and transient response performance compared to conventional analogue wireless systems. It provides superb transient response performance. Analogue companding systems cannot accurately reproduce sounds such as a bell, tee shot or handclap, but Sony Digital Audio Processing reproduces them faithfully.

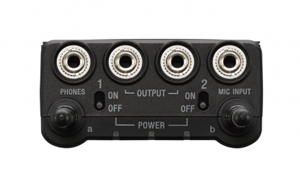

External mic input for additional wired microphone with 3 channel Mixer function
 The URX-P03D 2-channel portable receiver has an external mic input connector for additional wired microphones. Sony microphones with BMP plug or plug-in power microphones (stereo/mono) are applicable by menu setting. It also has a 3 channel mixer function for the two wireless microphones and one wired microphone. It can assign output 1 or/and 2 freely.

Large display and small size receiver

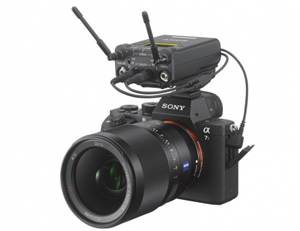

This receiver is designed to fit even small camcorders or DSLR cameras, with dimensions of 63mm x 82mm x 28.4mm (W x H x D) and a weight of approx. 210 g (including batteries). The transmitters and receivers also feature a bright 11.5mm x 27.8mm display, significantly larger than previous UWP models to make them easily readable in all situations.

Fast and easy channel scan
With its Clear Channel Scan, Active Channel Scan function and IR Sync features, the system detects unoccupied channels and selects the most appropriate channel automatically, for fast and easy system setup.

Automatic channel setting mode
The Auto Set channel mode allows the user to find and set available frequencies to use within the operating frequencies of the system. The receiver will automatically set the transmitter channel using the IR Sync feature.

Wide frequency coverage
The extra wide switching bandwidth covers a wide area, with a wide choice of channels available across multiple models - please refer to product specifications for more information.

True Diversity reception system*
The UWP-D system achieves exceptionally stable audio signal being delivered from two independent receiver sections within the unit. Optimum signal quality is delivered by the two receivers sections and a comparison circuit constantly pulls the one with the best signal to give dropout free transmission.
*Applied for 1 channel use. Antenna diversity is applied for 2 channel use.

Compatibility with Sony 800 and UWP Series analogue audio receivers
The UWP-D Series transmitters and receivers are also compatible with Sony's WL-800 Series, UWP Series and Freedom Series, allowing users to switch between different companding modes.

Headphone output for monitoring
The UWP-D system provides its own headphone output socket, which is particularly useful when working with a camera that does not have a headphone output.

USB for external power supply or charging batteries
The URX-P03 portable receiver has a micro USB terminal for connection to USB external portable power sources allowing the unit to be powered by the camcorder during use, resulting in hassle free power. You can also load NiMh batteries into the receiver to be charged through the micro USB.

Robust metal body
The URX-P03 portable receiver is made of strong, durable metal. Metal construction supports reliable use in rough operating conditions.

Variable output level on portable receiver
The system provides variable output level control of ±12dB, for use with the various input levels of camcorders and DSLR cameras.
