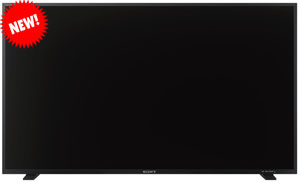

PVM-X550 55-inch 4K TRIMASTER EL™ OLED High Grade Monitor |
PVM-X550: Overview
Large screen 4K OLED picture monitor for precision color grading and quality control
The PVM-X550 55-inch (diag.)* 4K OLED picture monitor offers a large 3840 x 2160 pixels high grade picture for critical monitoring performance. This high
performance TRIMASTER EL™ OLED monitor gives you professional quality black performance, color reproduction, quick pixel response, and accurate signal
processing. Quad view display allows individual settings for each display. In addition, the PVM-X550 supports High Dynamic Range mode and a wide color gamut
supporting DCI-P3 and most of the ITU-R BT.2020 standard. The monitor’s thin bezel edges and lightweight makes it ideal for wall mounting and as a companion
client monitor for the BVM-X300 for color grading and quality control.
* 54.64-inch viewable area, measured diagonally. |
Product Code: PVMX550
|
PVM-X550: Highlights |
- Quad view display
- High Dynamic Range
- Supports DCI P3 and ITU-R BT.2020 wide color spaces
- Multi-format capability
|
Features of PVM-X550 |
·
High Dynamic Range mode
In addition to the intrinsic high-contrast performance of the TRIMASTER EL™ OLED
panel, this monitor provides High Dynamic Range mode. This offers never-seen-before image reproduction—the black is black, and peak brightness can
be reproduced more realistically with colors that are typically saturated in a conventional standard dynamic range. This mode can brilliantly express sparkling town lights and stars in the night sky.
·
Supports DCI P3 and ITU-R BT.2020 wide color spaces
The PVM-X550 supports industry‑leading wide color gamuts, including the DCI‑P3 color gamut and ITU‑R BT.2020 color space*. S‑GAMUT3.cine and S‑GAMUT3 color
gamuts are also supported to achieve coherent cinematography production workflow with Sony’s 4K cinematography cameras.
* The PVM-X550 does not conform to the BT.2020 color space in full.
·
3G-SDI Quad-link up to 4096 x 2160/48p 50p 60p, YCbCr 4:2:2 10-bit
This picture monitor supports both 2 Sample Interleave (2SI) and Square Division
signals. It also supports HD signals including 3G-SDI single link for 1920 x 1080/50p 60p, YCbCr 4:2:2 10-bit, and 3G-SDI dual link for 1920 x 1080/50p 60p, 4:4:4 12/10-bit.
·
Accurate black and color reproduction
A key advantage of TRIMASTER EL is the fact that each pixel can be turned completely off. No other display technology is able to offer this. TRIMASTER EL
is capable of reproducing accurate black with each individual pixel, enabling users to evaluate each picture image faithfully to the signal.
·
Extremely wide viewing angle
Sony PVM-X550 OLED TRIMASTER EL provides a superior viewing angle performance as compared to other flat panel technology available on the market. It makes easier
to evaluate picture performance with a few viewers to see the same colors and contrast.
·
Sony S-Log Gamma, SMPTE ST 2084 and HLG support
The PVM-X550 supports conventional 2.2, 2.4, 2.6, and CRT gamma. In addition, HDR (High Dynamic Range) EOTF tables are provided for 2.4 (HDR) S-Log2 (HDR),
SMPTE ST.2084 (HDR), HLG SG 1.2 (HDR) and HLG SG Variable (HDR).
|
Specifications of PVM-X550
|
| Contol Inputs |
| Network |
Ethernet (10BASE-T/100BASE-TX), RJ-45 (x1) |
| Digital Inputs |
| HDMI |
One |
| SDI (SMPTE 259M) |
BNC x4 x2sets |
| Display |
| Display Technology |
Trimaster EL OLED |
| Native Aspect Ratio |
16:9 |
| Resolution |
3840 x 2160 pixels |
| Screen Size |
54.6 inch diagonal |
| General Specifications |
| Dimensions (W x H x D) |
(49x29x8 1/8inch)(With stand)
(49x28 3/8x3 3/8inch)(Without stand) |
| Number of Option Slots |
HDMI x1 |
| Weight |
(47 lb 13 oz)(With stand)
(47 lb 3 oz) (Without stand) |
| Operating Conditions |
| Operating Humidity |
0 % to 90 % (no condensation) |
| Operating Temperature |
32°F to 95°F
Recommended: 68°F to 86°F |
| Storage Temperature |
-4°F to +140°F |
| Power Requirements |
| Power Requirements |
AC 100 V to 240 V, 50/60 Hz |
|
|
|
