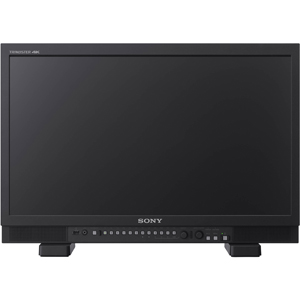

Sony PVM-X1800 18-inch 4K HDR TRIMASTER High Grade Picture Monitor
|
Product Code: PVM-X1800
|
Color-matched 4K HDR picture monitors with the BVM-HX310 4K master monitor, ideal for various 4K productions
The Sony PVM-X1800 18.4-inch 4K HDR high-grade picture monitor incorporates
the Sony specified premium LCD panel and offers 1,000-cd/m2 luminance and color matching with 4K HDR master monitor BVM-HX310, making group monitoring easy on set, in the studio, and as part of an OB van’s wall or 19″ EIA racks for
editing, audio mixing, etc.
TRIMASTER realized accurate color reproduction, precise imaging and quality picture consistency
Sony PVM-X1800 TRIMASTER is a design architecture for accurate picture reproduction, precise imaging and quality picture consistency. There are many advantages to the panel control and signal-processing system, such as fast
processing, accurate linearizing of input signals with the Optical Electrical Transfer Function, accurate color reproduction, etc.
Dynamic Contrast Drive and Black Detail High/Mid/Low
Dynamic Contrast Drive is a new backlight-driving system that dynamically changes backlight luminance to adapt to the scene of a frame. You can
conveniently check the overall balance of highlights and lowlights at a glance. This monitor can perform dynamically at a 1,000,000:1 contrast ratio using this drive.
From 12G-SDI and Quad-Link 3G-SDI to HD-SDI, as well as HDMI
The Sony PVM-X1800 can accept 12G-SDI from the latest device, and it can input quad-link 3G-SDI and a single HD-SDI for a traditional device. This input
utility uses HDMI, and supports from 640 x 480/60P PC signal to 4096 x 2160/60P 4:2:2 YCBCR 12bit.
Various scopes
Both the waveform monitor and the vector scope can be displayed simultaneously,
with scales for either HDR or SDR. You can conveniently check both input signal level and output luminance with the WFM’s HDR scales. The waveform has three different displays: luminance, RGB/YCBCR parade and RGB/YCBCR overlay with gamut
error display. The waveform of a specified line can also be displayed.
Unique Quad View display with User 3D LUT
The Sony PVM-X1800 provides a Quad View display with individual settings for
EOTF (SDR/HDR), color space, transfer matrix, color temperature, contrast, brightness, SDI/HDMI and RGB/YCBCR, as well as User 3D LUTs for each display view.
New user interface and Channel Select button
The OSD is largely changed, and operating this monitor is quicker and more intuitive. The design of the menu allows you to review and change settings very
quickly. The Channel Select button protects an operator from inadvertent setting errors.
Handy features for field operation
DC-24-V operation allows you to operate in the field, regardless of the large 18.4″ screen and the very high 1,000-cd/m2 luminance. The optional protection panel* protects the premium LCD screen from inadvertent shocks. User 3D LUTs and
yoke mount are also supported. Dynamic Contrast Drive is very useful for night-scene shooting.
*The optional protection panel cannot be used to protect the screen from the heat of backlights while the monitor is in operation.
Various mounting capabilities
Regardless of the large 18.4-inch screen size, the PVM-X1800 can be installed onto a 19-inch EIA-standard rack for studio and OB-van uses. Yoke mount and VESA
mount are also convenient for installing it onto a C stand for field use, or a desktop arm for editing.
Powerful stereo sound with audio muting
The Sony PVM-X1800 incorporates stereo speakers (2 W + 2 W) with audio muting.
|
- Dynamic Contrast Drive
- Black Detail High/Mid/Low
- Various signal settings and automatic settings with video payload ID
- 4K video input versatility for both brand-new and traditional devices
- New user interface
- 4K/HD scopes with HDR/SDR scale and audio level meter display
- User 3D LUT
- DC operation
- Yoke-mount and Wall-mount capability
- Sony’s unique Quad View display
- Room clearance connector panel design
- 4K (4096 x 2160) and 2K (2048 x 1080) input
- Flexible and variable area markers, aspect marker and center marker
- Optimized low-latency I/P conversion
- High-sound-pressure stereo speakers (2 W + 2 W) with audio muting |
| Picture Performance |
| Panel |
α-Si TFT Active Matrix LCD |
| Picture Size (Diagonal) |
18.4 inches (469.2 mm) |
| Effective Picture Size (H x V) |
16 1/8 x 9 1/8 inches (408.96 x 230.04 mm) |
| Resolution (H x V) |
3840 x 2160 pixels |
| Aspect |
16:9 |
| Display colors |
Approx. 1.07 billion colors |
| Panel frame rate |
48 Hz / 50 Hz / 60 Hz (48 Hz and 60 Hz are also compatible with 1/1.001 frame rates) |
| Viewing angle (panel specification) |
89°/89°/89°/89° (up/down/left/right contrast > 10:1) |
| Color temperature |
D60, D65, D93, DCI*1, and user 1–10 (5,000 K to 10,000 K adjustable) |
| Luminance (panel specification)
(typical) |
1000 cd/m2 |
| Color space (Color gamut) |
ITU-R BT.2020*2, ITU-R BT.709, DCI-P3, S-GAMUT3*2, S-GAMUT3.Cine*2 |
| Transmission Matrix |
ITU-R BT.2020 (Non-constant luminance is supported), ITU-R BT.709 |
| EOTF |
2.2, 2.4, 2.6, 2.4 (HDR), S-Log3, S-Log3 (Live HDR), SMPTE ST 2084, ITU-R BT.2100 (HLG) |
| Input |
| SDI |
(12G/6G/3G/HD-SDI) BNC (x2), (3G/HD-SDI) BNC (x2), Input impedance: 75 Ω unbalanced |
| HDMI Input |
HDMI (HDCP2.3/1.4) (x1) |
| Parallel Remote |
RJ-45 8-pin (x1) (Fixed pin assignment) |
| Serial Remote (LAN) |
Ethernet, 10BASE-T/100BASE-TX RJ-45 (x1) |
| DC Input |
XLR-type 3-pin (male) (x1), DC 22 to 32 V (output impedance 0.05 Ω or less) |
| Output |
| SDI Output |
(12G/6G/3G/HD-SDI) BNC (x2), (3G/HD-SDI) BNC (x2), Output impedance: 75 Ω unbalanced |
| Audio Monitor Output |
Stereo mini jack (x1) |
| Speaker (Built-in) Output |
2.0 W+2.0W (Stereo) |
| Headphone Output |
Stereo mini jack (x1) |
| General |
| Power Requirements |
AC 100 to 240 V, 50/60 Hz
DC 22 to 32 V |
| Operating Temperature |
0°C to 35°C (32°F to 95°F) Recommended: 20°C to 30°C (68°F to 86°F) |
| Operating Humidity |
30% to 85% (no condensation) |
| Storage / Transport Temperature |
-20°C to +60°C (-4°F to +140°F) |
| Storage / Transport Humidity |
0% to 90% |
| Operating / Storage / Transport Pressure |
700 hPa to 1060 hPa |
| Dimensions (W x H x D) |
17 3/8 x 12 1/4 x 5 7/8 inches (444 x 310 x 148.5 mm*3) (without monitor handle and monitor stand)
17 3/8 x 14 5/8 x 6 3/4 inches (444 x 368.7 x 168.5 mm*3) (with monitor handle and monitor stand)*4 |
| Mass |
18 lb 1 oz (approx. 8.2 kg) |
| Notes |
| *1 DCI: x=0.314, y=0.351
*2 The PVM-X1800 does not cover selected color space in full.
*3 Without projection parts.
*4 Height without handle is 13.05 inches. |
|
|
|
|
|
