VSS-19P
 |
Teleprompters VSS-19P
Professional prompter VSS-19P is constructed under the traditional scheme and
intended for a projection of the readable text to the translucent glass located
in front of the camera lens. The text are completely reflected in the direction
of the announcer, without falling into formed by the camera the video signal.
Provides video shootings with any types of videocameras.
Uses a special mirror (Broadcast Quality Ultraclear Beamsplitter) with the main,
semi-transparent layer of amalgam 70/30 ( transparency / reflectance) and an
additional anti-reflection (AR) coating , minimizing unwanted reflections from
inner side of the mirror to prevent ghosting.
The basis of this design of prompter is Base plate platform made of polished
stainless steel tubes, where are three movable mounting plates and mounting
hardware for front part of the prompter (tube with a mirror and a monitor). The
upper mounting plate is designed to mount the camcorder. The lower plate
provides mount on a pedestal or tripod. The back plate - for set the
counterweight for balancing system.
The base plate provides free horizontal movement of the mouting plates, fixing
them in the desired position, and provides vertical movement up / down of the
tubes with the mirror and the monitor relative to a fixed base plate with camera
and fixing in position that allows to adapt the design to use camera of any
size.
There is ability to change the angle of the mirror up to 55 degrees, it is
allows you to use the camera with a wide angle lens.
Loose (non-rigid) fixing the mirror inside the hood makes it easy to remove it
for replace, to clean and to safe transportation.
The Main Features:
• Increased rigidity
• Ability to use a lens servo control
• Broadcast quality beamsplitter 70/30 with AR coating
• The ability to use any size cameras
• Ability to use wide-angle lenses
• The ability to easily remove the mirror
• Versatile mounting elements
Options:
• Sunlight readable monitor 1000nits
• Sunlight readable monitor 2000nits
• Tally light, normal or sevensegments.
• Talent Feedback Monitor (from 10’ to 40’)
• Spare beamsplitter
• Foot and Hand pedals
• Time Code Display
• Contour Shuttlexpress
• VGA cable extender 20m
• Extender cable for pedals
• Presenter
In the Box
• Teleprompter hood with a beam splitter 70/30 with AR coating, 450x400mm
• Base plate with mounting brackets
• 19’ LCD monitor with standard cables
• Control foot-pedal
• Prompting software VSPrompter3
• Kit of screws with different sizes for mounting
|
|
|
|
|
VSS-19L
|
Teleprompters VSS-19L
Teleprompters VSS-19L are constructed under the traditional scheme
and intended for a projection of the readable text to the
translucent glass located in front of lenses of video camera.
Titles are completely reflected in a direction of the announcer,
not to get in video signal. The VSS-19L is lightweight and
cost-effective teleprompter kits which are designed for studio use.
The construction is weight balanced for tripod mounting and does
not require counterweight. The VSS-19L has a base designed for
mounting small-form cameras (hand held)
A complete package includes LCD monitor, hood, mirror, camera mount
base, tripod mount plate,
software and foot-pedal.
The MS Windows-based ( 98(SE), ME, 2000, XP, 7) software VSPrompter
2.0b(5.2MB) make use of Rich Edit text format (RTF). VSPro
allows to prepare announcer's texts (Edit mode) and their scrolling
(play modes).
Play modes: - smooth scrolling with adjustable speed; - page
submission.
Play control is made by means of a keyboard, a mouse or the
mentioned three foot buttons pedal.
Requirements
to base computer:
less than 32Mb, UDMA HDD with an empty place not less than 500Mb,
the video adapter with two
SVGA outputs for supporting a two-monitor operating mode (or two
SVGA video adapters with 8 Mb
memory size), free COM port.
|
|
|
|
VSS-19M
|
Teleprompters VSS-19M
Teleprompters VSS-19M are constructed under the traditional scheme
and intended for a projection of the readable text to the
translucent glass located in front of lenses of video camera.
Titles are completely reflected in a direction of the announcer,
not to get in video signal. The VSS-19M is lightweight and
cost-effective teleprompter kits which are designed for studio use.
The construction is weight balanced for tripod mounting and does
not require counterweight. The VSS-19M has a base designed
for mounting full-size ENG cameras.
A complete package includes LCD monitor, hood, mirror, camera mount
base, tripod mount plate,
software and foot-pedal.
The MS Windows-based ( 98(SE), ME, 2000, XP, 7) software VSPrompter
2.0b(5.2MB) make use of Rich Edit text format (RTF). VSPro
allows to prepare announcer's texts (Edit mode) and their scrolling
(play modes).
Play modes: - smooth scrolling with adjustable speed; - page
submission.
Play control is made by means of a keyboard, a mouse or the
mentioned three foot buttons pedal.
Requirements to base computer:
less than 32Mb, UDMA HDD with an empty place not less than 500Mb,
the videoadapter with two
SVGA outputs for supporting a two-monitor operating mode (or two
SVGA videoadapters with 8 Mb
memory size), free COM port.
|
|
|
|
|
Teleprompters
Offer
VSS-17
with Complete Accessories
Offer VSS-19
with Complete Accessories
|
VSS-17 and VSS-19
Teleprompter VSS-17/19 are constructed under the traditional
scheme and intended for a projection of the readable text to the
translucent glass located in front of lenses of videocamera. Titles
are completely reflected in a direction of the announcer, not to
get in video signal. Provides video shootings with any types of
videocameras.
The VSS-17 set includes a tube with a translucent mirror in the
sizes 400 x 400 mm, bearing platform, 17-inch color TFT monitor
with cables, control foot-pedal with a cable, specialized software
VSPrompte2.0b . The VSS-19 set differs a tube with a translucent
mirror 480 x 480 mm and 19-inch color TFT monitor.
The platform is made with easy aluminium structure and has sliding
mounting plates for a pedestal or tripod, videocamera,
counterbalance and mobile mounting brackets for a tube with the
mirror and monitor. The 10 meters standard length cable serves for
the connection of the pedal to the base
computer via COM port. When COM port is inaccessible the customary
adapter USB->COM provides connection of pedal with the computer.
The option: at the customerÓs request itÓs possible
to increase this length up to 200 m. Besides using the foot pedal,
scrolling control of the text can be also provided by
ShuttleExpress (of Contour Design).
The option: 10 meters length RGB cable provides the connection of
TFT monitor and the base computer. The option: it is possible to
increase the cable length up to 200 m in case of using the monitor
with a composite video input and presence of a corresponding output
at the computer. It is
possible to provide also by converter Video-VGA (look converter
Video-> VGA ) or by ready set of VGA extender (look at the VGA
extender )
The MS Windows-based ( 98(SE), ME, 2000, XP, 7) software VSPrompter
2.0b ( 5,2 Mb) make use of Rich Edit text format (RTF). VSPro
allows to prepare announcerÓs texts (Edit mode) and their
scrolling (play modes).
Play modes: - smooth scrolling with adjustable speed; - page
submission.
Play control is made by means of a keyboard, a mouse or the
mentioned three foot buttons pedal.
Requirements to base computer:
less than 32Mb, UDMA HDD with an empty place not less than
500Mb, the videoadapter with two
SVGA outputs for supporting a two-monitor operating mode (or two
SVGA videoadapters with 8 Mb
memory size), free COM port.
Accessories
Include
1x tube with a
translucent mirror in the sizes 400 x 400 mm
Bearing
platform
17-inch color TFT
monitor with cables.
Control foot-pedal
with a cable.
Specialized
software
VSPrompte2.0b.
|
|
|
|
|
Universal folding Teleprompter
VSS-19F
VSS-19FT
additional Talent Feedback
Monitor
|
VSS-19F and VSS-19FT
Universal folding model VSS-19F is lightweight teleprompter
kit that allows to mounting cameras of
different size for working in studio and outside. The construction
is made of lightweight aluminum
extrusions and it is weight balanced for tripod mount and does not
require counterweight. The
camera mount platform is height-adjustable. The mirror assembly and
camera mount platform can
fold flat for easy transporting.
A complete package includes LCD display, hood with mirror, camera
mount platform, tripod mount
plate, software and foot-pedal. Can be completed with optional
talent feedback monitor ( model
VSS-19FT). Option - hard carring case.
The MS Windows-based ( 98 (SE), ME, 2000, XP, 7) software
VSPrompter 2.0b (5.2Mb) make use of Rich Edit text format (RTF).
VSPro allows to prepare announcer's texts (Edit mode) and their
scrolling (play modes).
Play modes: - smooth scrolling with adjustable speed; - page
submission.
Play control is made by means of a keyboard, a mouse or the
mentioned three foot buttons pedal.
Requirements
to base computer:
not less than 300Mhz, RAM not less than 32Mb, UDMA HDD with
an empty place not less than 500Mb, the videoadapter with two
SVGA outputs for supporting a two-monitor operating mode (or
two SVGA videoadapters with 8 Mb memory size), free COM port.
Weight with the monitor: 8kg
|
|
|
|
|
Portable folding Teleprompter
|
VSS-10B and VSS-10B2
Designed for use out of studios. Provides the projection of
a readable text to the translucent
glass located in front of lenses of the videocamera. Titles are
completely reflected in the direction of
the announcer, not to get in video signal. Shootings are possible
with any types of videocameras.
Can be used with any standard tripod (3/8 inch fastening). The back
part of bearing platform allows
use it with cameras of different size by changing of supporting
coolumns .The construction is
folding. When folded it can go in 500 x 280 x 120 mm carring case.
This model don't need any
additional counterbalance.
VSS-10B2 is manufactured with one or two monitors. The second one
(Talent Fedback Monitor) vertically located can be used for
monitoring position an actor on the screen.
Includes a tube with a translucent mirror in the sizes 230 x 230
mm, bearing platform, 10-inch TFT monitor, control foot-pedal with
a cable, specialized software VSPro, carrying case.
Weight with the monitor: 4 kg
|
 |
|
|
|
|
Portable folding Teleprompter
|
VSS-10T
Designed for
use out of studios. Provides the projection of a readable text to
the translucent glass located in front of lenses of the video
camera. Titles are completely reflected in the direction of the
announcer, not to get in video signal. Shootings are possible with
any types of video cameras. Can be used with any standard tripod
(3/8 inch fastening). The back part of bearing platform allows use
it with cameras of different size by changing of supporting columns
.The construction is folding. When folded it can go in 500 x 280 x
120 mm carrying case. These models don't need any
additional counterbalance.
This model completely repeats VSS-10B but instead of normal monitor
Tablet PC is mounted
|
 |
|
|
|
|
Studio Teleprompter

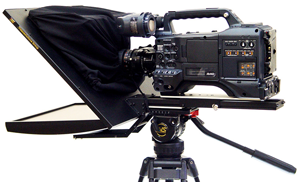

VSS-19S
|
VSS-19S
Teleprompter VSS-19S are constructed under the traditional scheme and intended
for a projection of the readable text to the translucent glass located in front
of lenses of videocamera. Titles are completely reflected in a direction of the
announcer, not to get in video signal. Provides video shootings with any types
of videocameras.
The platform is made with easy aluminium structure and has sliding mounting
plates for a pedestal or tripod, camera, counterbalance and mobile mounting
brackets for a tube-hood with the mirror and monitor.
|
|
|
|
|
Teleprompters for presentations
VSS-20
|
VSS-20
VSS-20 speech – conference
teleprompter
Produced for text prompting during the speech on different
kind of events: conferences, meetings, presentations, etc. semi
transparent mirror (beam splitter)The prompter should be placed in
front of the speaker. The scrolling text is controlled by operator.
The mirror should be placed so that the speaker will look at the
middle of the hall.
Specifications:
Prompter sizes:
width: 51 cm
deep: 50 cm
max height: 196 cm
max mirror height adjustment: 63 cm
weight, netto: 10,5 kg
weight, brutto: 18 kg
mirror size: 50*52 cm
monitor size: 20,1'' (50 cm)
|
|
|
Teleprompter Software
VSPrompter 2.0
|
Teleprompter software
VSPrompter2.0
The SPrompter2.0 is a professional software for Teleprompters.
Supports Dual/Single monitor mode.
Designed for Microsoft Windows 2000/XP/Vista/7 32bit operating
systems.
Embedded text editor based on Rich edit text format.
Supports RTF text files on scrolling, allows to use RTF features
such as selecting different fonts
with different effects (BOLD, ITALIC, UNDERLINE and font color) for
single text line.
Profile database for storing individual user settings
Variable speed table.
Modifiable layout of scrolling aria (size and position).
Additional information for the reader - timer (total, remain),
reader/lens pointer, script name etc.
Run list.
Operator preview window in dual
monitor mode.
The software be controlled with:
- foot pedal
- Contour Design ShuttleXpress
- keyboard and mouse
|
|
|
Sunlight Readeble Monitor
|
Sunlight Readeble Monitor
Specfications:
Device Type : LED-backlight LCD monitor - 19"
Aspect Ratio : 5:4
Native Resolution : 1280 x 1024 at 60 Hz
Pixel Pitch : 0.294 mm
Brightness : 1500 cd/m2
Contrast Ratio : 1000:1
Response Time : 5 ms
Colour Support : 16.7 million colours
Input Connectors : VGA, CVBS (option), HDMI (option), SDI (option)
Dimensions (WxDxH) : 40.4 cm x 6.4 cm x 41.8 cm
Weight : 5,5 kg
|
|
Time Code Display
|
Time Code Display
Overview:
- Mounts to the hood of your Teleprompter
- Display time in 24 hour format: hh:mm:sss
- Displays SMPTE / EBU Timecode from the VITC (Vertical Interval Timecode) or
from the LTC (Linear Timecode).
- 4,8cm Tall Digits
- Internal Crystal Oscillator
|
|
Digital Tally / Camera Number Display
|
Digital Tally / Camera
Number Display
Overview:
- For any Prompter of VSS family
- Displays Camera Number from 0 to 9
- Switches from Red to Green when On-Air
|
| |
|
