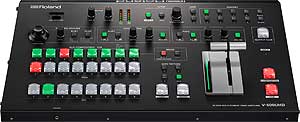

Roland V-600UHD Multi-Format Video Switcher

Roland V600UHD Video Switcher

High Dynamic Range [HDR]

The V-600UHD uses High Dynamic Range [HDR] so your events look amazing. You don’t just see more pixels, you see better, more dynamic-looking pixels that preserve the details in the darkest and brightest areas of an image. HDR provides well-balanced stage lighting without oversaturation for IMAG (and it’s easier to achieve compared with using SDR.) And SDR dynamic range signals can also be input and switched with the V-600UHD.

Full 60Hz Frame Rate

With full 60Hz framerate support, the V-600UHD delivers a smooth, crisp video image without the blur that’s common when fast motion is displayed at 30Hz refresh rates.

A More Vivid Color Space

The V-600UHD supports Rec.2020, the highest-specification Wide Color Gamut (WCG), as well as RGB and Rec.709 standards to display the widest range of visible colors. This provides an increased level of realism and improved color accuracy, especially for red and yellow color ranges.

10-bit 4:4:4 Pixel-accurate Color

Internal 10-bit Color Depth processing reduces color banding and sharpens high-detail sources from computers. This makes it easier to read small fonts and other fine details, even when drastically scaled and magnified.

Support for DCI Cinema 4K Resolution

Not all 4K content has the same aspect ratio. Although 4K content is always 2160 pixels high, DCI or “Cinema 4K” is 4096 pixels wide, which is 256 pixels wider than UHD. The V-600UHD lets you switch and display content at the originally intended aspect ratio, without cropping or letterboxing.

The Right I/O for Your Show

The V-600UHD has four HMDI 2.0 and two 12G SDI inputs, perfect for events needing several computer and video playback sources complete with IMAG camera support. Each input independently supports input and scaling of HD, Full HD, UHD 4K, and DCI 4K, as well as PC resolutions from UXGA to DCI 4K — with no converters needed. AUX destination switching makes it easy to include down-stage confidence monitors, while the configurable multi-view monitor lets you see all your sources, programs and previews — at a glance. Each output also supports downscaling to Full HD for outputting to streaming encoders or other HD-equipped destination displays.

Video
Processing	4:4:4 (Y/Pb/Pr), 10-bit
Supported Video Input Formats	HDMI (Video, CEA-861-F): 720/50p, 720/59.94p HDMI (Video, CEA-861-F): 1080/50i, 1080/59.94i HDMI (Video, CEA-861-F): 1080/50p, 1080/59.94p HDMI (Video, CEA-861-F): 2160/50p (UHD 4K), 2160/59.94p (UHD 4K) HDMI (Video, CEA-861-F): 2160/50p (DCI 4K), 2160/59.94p (DCI 4K) HDMI (PC, VESA DMT): 1024 x 768/60Hz (XGA) HDMI (PC, VESA CVT): 1280 x 768/60Hz (WXGA) HDMI (PC, VESA DMT): 1280 x 1024/60Hz (SXGA) HDMI (PC, VESA CVT): 1400 x 1050/60Hz (SXGA+) HDMI (PC, VESA DMT): 1600 x 1200/60 Hz (UXGA) HDMI (PC, CEA-861-F): 1920 x 1080/30 Hz (FHD), 1920 x 1080/60 Hz (FHD) HDMI (PC, VESA CVT): 1920 x 1200/60 Hz (WUXGA, Reduced blanking) HDMI (PC, CEA-861-F): 3840 x 2160/24 Hz (UHD 4K), 3840 x 2160/30 Hz (UHD 4K), 3840 x 2160/60 Hz (UHD 4K) HDMI (PC, CEA-861-F): 4096 x 2160/24 Hz (DCI 4K), 4096 x 2160/30 Hz (DCI 4K), 4096 x 2160/60 Hz (DCI 4K) RGB (PC, VESA DMT): 1600 x 1200/60Hz (UXGA) RGB (PC, CEA-861-F): 1920 x 1080/60Hz (FHD) SDI (Video, SMPTE ST274): 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p SDI (Video, SMPTE ST2036): 2160/59.94p (UHD 4K), 2160/50p (UHD 4K) SDI (Video, SMPTE ST2048): 2160/59.94p (DCI 4K), 2160/50p (DCI 4K) Still Image: Windows Bitmap File (.bmp), Maximum 4096 x 2160 pixels, 24-bit per pixel, uncompressed Still Image: PNG File (.png), Maximum 4096 x 2160 pixels (*1) *1 Alpha channel of PNG file is not loaded.
Supported Video Output Formats	HDMI (Video, CEA-861-F): 1080/50p, 1080/59.94p HDMI (Video, CEA-861-F): 2160/50p (UHD 4K), 2160/59.94p (UHD 4K) HDMI (Video, CEA-861-F): 2160/50p (DCI 4K), 2160/59.94p (DCI 4K) HDMI (PC, CEA-861-F): 1920 x 1080/30Hz (FHD) (*2), 1920 x 1080/60Hz (FHD) HDMI (PC, CEA-861-F): 3840 x 2160/30Hz (UHD 4K), 3840 x 2160/60Hz (UHD 4K) HDMI (PC, CEA-861-F): 4096 x 2160/30Hz (DCI 4K), 4096 x 2160/60Hz (DCI 4K) *2 Available when Down Convert of HDMI OUT 1-3 is set to "Enabled". SDI (Video, SMPTE ST274):1080/59.94p, 1080/50p SDI (Video, SMPTE ST2036):2160/59.94p (UHD 4K), 2160/50p (UHD 4K) SDI (Video, SMPTE ST2048):2160/59.94p (DCI 4K), 2160/50p (DCI 4K) * Conforms to VESA DMT, VESA CVT, CEA-861-F * Color Gamut: Rec.709, Rec.2020 * Dynamic Range: SDR, HDR PQ (HDR10), HDR HLG
Video Effects	Transition: Mix, Cut, Wipe (9 patterns) Composition: PinP, Key (*1), PinP + Key (*1) DSK: PinP, Key (*1), PinP + Key (*1) Others: Output Fade, Output Freeze, Output Capture *1 Luminance Key, Chroma Key
Audio Processing	24 bits/48 kHz
Audio formats	SDI IN/OUT: Linear PCM, 24 bits/48 kHz, 16 ch (Conforms to SMPTE 299M) HDMI IN/OUT: Linear PCM, 24 bits/48 kHz, 2 ch
Audio Effects	Matrix mixer Delay (1 ms units, max 500 ms) Test tone output
Connectors
Input Connectors	HDMI IN 1--4 connectors: HDMI type A (HDMI 2.0) SDI IN 5--6 connectors: BNC type (12G/3G/HD-SDI, Conforms to SMPTE 2082, 424M (Level-A, Level-B), 292M) RGB IN 1 connector: HD DB-15 type (Analog RGB, Select HDMI IN 1 or RGB IN 1 using menu) AUDIO IN L/R connectors: XLR-3-31 type (balanced)
Output Connectors	SDI OUTPUT connector: BNC type (12G/3G-SDI, Conforms to SMPTE 2082, 424M (Level-A, Level-B)) HDMI OUT 1--3 connectors: HDMI type A (HDMI 2.0) MULTI-VIEW connector: HDMI type A (HDMI 1.4) AUDIO OUT L/R connectors: XLR-3-32 type (balanced) PHONES jack: Stereo miniature phone type
Other Connectors	USB MEMORY port: USB A type (for USB flash drive) RS-232 connector: DB-9 type (Male) (for Remote Control) LAN port: RJ45 type, 100BASE-TX (for Remote Control) TALLY/GPI port: DB-25 type (Female) (Tally: 16, GPI: 8) * XLR type: 1 GND, 2 HOT, 3 COLD
Audio Input/Output Characteristics
Input Level	AUDIO IN L/R: +4 dBu (Maximum: +24 dBu)
Input Impedance	AUDIO IN L/R: 15 k ohms
Output Level	AUDIO OUT L/R: +4 dBu (Maximum: +24 dBu) PHONES: 92 mW + 92 mW (32 ohms)
Output Impedance	AUDIO OUT L/R: 600 ohms PHONES: 10 ohms
Others
Power Supply	80 W
Operation Temperature	+0 to +40 degrees Celsius +41 to +104 degrees Fahrenheit
Dimensions	482 (W) x 300 (D) x 109 (H) mm 19 (W) x 11-13/16 (D) x 4-5/16 (H) inches * When rack mount angles are fitted.
Weight	5.3 kg 11 lbs 11 oz * Including rack mount angles.
Accessories	Owner's Manual Power cord Rack-mount angle x 2
