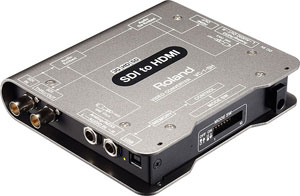

| Input Connectors |
| SDI |
Connector: BNC type x 1 |
| Analog Audio |
1/4" TRS phone type ( balanced ) x 1 pair (L/R) |
| Digital Audio |
1/4" TRS phone type ( balanced ) x 1 (Combined use with Analog Audio R ch Connector ) |
| Output Connectors |
| SDI Connector |
BNC type x 1 ( Thru/Out ) |
| HDMI Connector |
Type A (19 pins) x 1 |
| Analog Audio |
1/4" TRS phone type (balanced) x 1 pair (L/R) |
| Digital Audio |
1/4" TRS phone type ( balanced ) x 1 (Combined use with Analog Audio R ch Connector ) |
| Input/Output Formats |
| SDI Input Signal Standards |
SMPTE 424M(SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C |
| SDI Input Video Format |
1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M ), 1280x720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M ), 720x487/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5 ) |
| Audio Format |
Linear PCM, 24 bits, 48 kHz, 16 ch (Conforms to SMPTE 299M, SMPTE 272M-C) |
| HDMI Input Video Format |
1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-E) |
| HDMI Input Audio Format |
Linear PCM, 24 bit, 48 kHz, 8 ch |
| SDI Output Signal Standards |
SMPTE 424M (SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C |
| Processing |
Audio Embed/De-embed |
| SDI Output Video Format |
1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M), 1280x720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M), 720x487/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5) |
| SDI Output Audio Format |
Linear PCM, 24 bits, 48 kHz, 16 ch (Conforms to SMPTE 299M, SMPTE 272M-C) |
| HDMI Output Video Format |
1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-E) |
| HDMI Output Audio Format |
Linear PCM, 24 bit, 48 kHz, 8 ch |
| Audio Input/Output |
| Analog Audio Input Level |
+4dBu |
| Analog Audio Maximum Input Level |
+24dBu |
| Analog Audio Input Impedance |
110 ohms |
| Analog Audio Output Level |
+4dBu |
| Analog Audio Output Impedance |
600 ohms |
| Digital Audio Output Signal Format |
AES3, 16/24 bits, 32/48 kHz, 2 ch |
| Digital Audio Output Impedance |
110 ohms |
| Others |
| USB Connector |
USB Type B (Hi-Speed USB) x 1 |
| Power Supply |
DC 9V |
| Power Consumption |
8W |
| Operation Temperature |
+0 to + 40 degrees Celsius |
| Accessories |
AC adaptor, Power Cord, Rubber Foot x 4, Owner's Manual |
