 Panasonic AW-HS50 Compact Live Switcher with built-in MultiViewer

Panasonic AW-HS50 Live Switcher
Product Code: AWHS50E
Discontinued
review button



The Panasonic AW-HS50 sub-compact, multi-format live HD/SD AW-HS50 switcher offers 10-bit processing, four HD/SD-SDI inputs and one HD DVI-D input, as well as a built-in MultiViewer, Chroma Keyer, Aux Bus, 1080/29.94PsF support, and more.

Panasonic AW-HS50 Ideal for mobile production, AV facilities, event video and more, the half-rack width HS50's built-in MultiViewer allows users to view four, nine, or 10 images on a single display - significantly reducing the cost, size, and weight of a complete HD production system. The adjustable MultiViewer outputs can also be used to provide a multi-image large-screen presentation display.



Other advanced functions include dedicated hardware for picture-in-picture (PinP) with dissolve transitions, switchable upconversion, color correction, a chroma/linear keyer plus a downstream keyer (DSK), auto or manual video transitions, wipe and PinP preset memories, and frame memories.

As a key component in Panasonic's first complete Internet Protocol (IP) production system, the HS50E also offers an IP link to the new AW-RP50 remote camera controller. This link enables remote switching of the remote controlled camera video on the HS50's AUX bus, and other unique functions The Panasonic AW-HS50 has built-in, switchable 10-bit frame synchronizers on each input, ensuring reliable, glitch-free switching even with non-synchronous sources such as remote camera feeds, small camcorders, and computer graphics.

The Panasonic AW-HS50 has four HD/SD-SDI inputs and one HD DVI-D input, two HD/SD-SDI outputs and one scalable DVI-D output. Additional standard features include an on-screen display (OSD) for viewing switcher settings, GPI input, camera tally outputs, an Ethernet control interface, 4-pin XLR 12VDC input, and an AUX Bus for a versatile production workflow.

• 5 input, 3 output switcher in sub-compact ½ rack-width design
• AUX bus, PinP, Chroma Keyers, 10-bit frame synchs
• Measures only 8 ¼" W x 2-5/8" H x 6-15/16" D
• 10-bit, 4:2:2 HD or SD live switching
• Weighs just over four pounds
• Supports 1080/59.94i, 1080/23.98PsF, 1080/24PsF, and 720/59.94p



• 5 inputs and 3 outputs
Standard features include 5 inputs (4 HD/SD-SDI, 1 DVI-D) and 3 outputs (2 HD/SD-SDI, 1 DVI-D).

• MultiViewer display functionality comes installed as standard

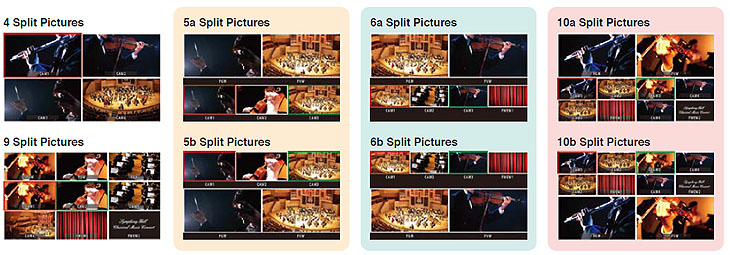

The built-in MultiViewer can display up to ten image windows at one time on a single monitor, including program, preview, inputs, and more!
Panasonic AW-HS50 Live Switcher
• Audio Level Meter Display Function
Embedded audio levels of SDI (group1/ 1 ch, 2 ch) inputs can be displayed.

Panasonic AW-HS50 Live Switcher

• Bus Transition Functions
Cut and Mix transitions are available through AUX bus and PinP bus.

• Frame Synchronizers on All Inputs
Frame Synchronizer is embedded in all inputs. This enables asynchronous video signals to be switched without glitches.
(SDI-IN1 to 4 10 bit, DVI-IN 8 bit)


More Powerful Features
• 2 Switchable Up-converters. (SDI-IN3,IN4)
• Color Correction on SDI Inputs (SDI-IN1 to 4) for convenient matching of video sources.
• Dot-by-Dot feature on 4 inputs (SDI-IN1 to 4) enables insertion of SD images into HD frames with virtually no image distortion
• 13 wipe patterns, plus PinP, Chroma/Linear Key, Aux Bus.
Video format: HD (1080/59.94i, 1080/50i, 1080/23.98PsF,1080/24PsF, 720/59.94p, 720/50p)
SD (480/59.94i, 576/50i)
Video Processing: Y: Cb:Cr, 4:2:2 10 bit (8 bit for FMEM)
RGB, 4:4:4 8 bit
M/E: 1 M/E
Video Input: Standard: 4 SDI inputs (SDI-IN1 to 4)
Standard: 1 DVI-D input (DVI-IN)
XGA (1024 x 768), WXGA (1280 x 768),
SXGA (1280 x 1024), WSXGA+ (1680 x 1050),
UXGA (1600 x 1200), WUXGA (1920 x 1200)
Vertical frequency: 60 Hz
1080/50p, 1080/59.94p
*Video output formats of the AW-HE50H are not supported.
*Analog input signals are not supported.
Video Output: Standard: 2 SDI outputs
(SDI-OUT1 to 2 each, 2 output distribution for SDI-OUT1)
Standard: 1 DVI-D output (DVI-OUT)
XGA (1024 x 768), WXGA (1280 x 768),
SXGA (1280 x 1024), WSXGA+ (1680 x 1050),
UXGA (1600 x 1200), WUXGA (1920 x 1200)
Vertical frequency: 60 Hz
1080/50p, 1080/59.94p
*High-resolution multi view mode supported: Signals are also output with a high resolution even when SD has been selected as the system mode.
When the high-resolution multi view mode is enabled, MV is assigned to the DVI-OUT connector, and MV cannot be assigned to the SDI-OUT1 connectors or SDI-OUT2 connector.
*Analog output signals are not supported.
Interface: LAN: 10BASE-T/100BASE-TX (for IP control); RJ45 x 1
TALLY/GPI
GPI INPUT x 5 channels; D-sub 15 pin
GPI OUTPUT x 7 channels; (female) x 1
Power Supply / Power consumption: DC12 V ±10 % (AC adapter provided), 2.0 A
Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Operating Humidity: 10 % to 90 % (no condensation)
Dimensions (WxHxD): 210 mm x 67 mm x 177 mm (8-1/4 " x 2-5/8 " x 6-15/16 " ) (excluding protrusions)
Weight: Approx. 1.4 kg (3.1 lb) (without options)
Standard Accessories: AC Adaptor, Power Cable
BKGD: Wipe Pattern: Wipe x 13
Transition Type: Cut, Mix, Wipe (including DVE)
FTB: Selectable Materials: Black, White, CBGD, FMEM1, FMEM2
Keyer: Number of Keys: 1
Key Type: Linear key, Luminance key, Chroma key
Transition Type: Mix
PinP: Number of PinP: 1
Transition Type: Mix
BUS Transition Yes (Mix)
AUX Bus: Number of AUX BUS: 1
Selectable Materials: SDI-IN1 to 4, DVI-IN, CBAR, CBGD, BLACK, FMEM1, FMEM2, PGM, PVW, KOUT, CLN, MV
BUS Transition: Yes (Mix)
Input function: Frame Synchronizer: SDI-IN1 to 4, DVI-IN (DVI-IN is always-on)
Freeze: SDI-IN1 to 4, DVI-IN
Dot by Dot: SDI-IN1 to 4
Video Processing: SDI-IN1 to 4
Up-converter: SDI-IN3, IN4
Output function: MultiViewer
Single Screen Display
Labels, Tally indication, Split-screen (the screen may be split into 4, 5a/5b, 6a/6b, 9 and 10a/10b sections)
MV frames, Labels, Tally indications, camera setting information, and Audio Level Meters are not shown on SDI-OUT1.
OSD
Single Screen Display
SDI-OUT2,DVI-OUT (unshown on SDI-OUT1)
Audio Level Meter
SDI embedded audio (group1/ 1 ch, 2 ch)
Frame Memory:
2 channels
The image data in the Frame Memory is stored even when the power is off.
*Video processing for the Frame Memory is 8-bit.
*OSD, Frames, Labels, Tally indications, camera setting information, and Audio Level Meters for MultiViewer are not stored in the Frame Memory.
Memory Function:
PinP Preset
Foot notes: *Effect Dissolve Function
*Be sure to use the included AC adapter and power cable.
