AG-DVX200 Overview:
The Panasonic AG-DVX200 4K camcorder has a large sensor of 4/3 which  offer high-end features including 4K/60p* recording, V-Log L gamma curve and 13X optical zoom. The AG-DVX200 will be optimized for 4K/HD production, and shares the esteemed VariCam family characteristics of filmic tonality and colorimetry, with natural, subtle rendering of skin flesh tones, and a V-Log curve emulating the natural grey-scale rendition of the VariCam 35. The AG-DVX200 camcorder will incorporate a newly-developed 4/3" large-format MOS sensor and offer variable frame rate recording up to 120fps in FHD mode.

The new AG-DVX200 handheld 4K camcorder will offer an array of professional features including a newly-designed Leica Dicomar 4K F2.8~F4.5 zoom lens (4K/24p: 29.5 mm ~ 384.9 mm, HD: 28 mm ~ 365.3mm, 35 mm equivalent), time-code in/out, 3G HD-SDI and HDMI 2.0 (4K) video outs, easy focus and zooming, and programmable user buttons.

The AG-DVX200’s three manual operation lens rings—13x zoom (Cam driven), focus and iris—will provide a comfortable manual control similar to an interchangeable lens camera, but without the need for actual lens changes. The AG-DVX200 zoom ring's solid feel and smooth action allow delicate ultra-slow zooming. Multi-step zoom control provides fast response and smooth zoom action, yielding the creative freedom every camera operator desires. The Panasonic AG-DVX200 zoom control on the handle enables variable speed zoom, allowing fine zoom control even for low angle shots. The AG-DVX200 also features an enhanced Image Stabilizer.


Panasonic AG-DVX200 4/3-type Fixed Lens 4K Camcorder Builds for Highly-Acclaimed HD Cameras.
- Following the footsteps of AG-DVX100, the next new AG-DVX200 debuts as the world’s first*1 4/3-type large format, 4K/60p*2 camcorder to feature an integrated zoom lens.
- The AG-DVX200 captures stunning imagery by virtue of LEICA DICOMAR 4K 13x zoom lens combined with an advanced large format 4K imager and the blending of aesthetics like shallow focus, attractive Bokeh, and an amazing 12 stop dynamic range made possible by the VariCam style V-Log L processing.

-AG-DVX200 Newly designed lens-integrated body provides excellent mobility and extra flexibility is supported by the compartment with hatch-type cover which protects the battery and terminals from dust and impacts.
-The crimson red coloring and stylish carbon-black textured body represents philosophy and advanced features of the new AG-DVX200 which produce emotional and highly detailed 4K images

*1: For a lens-integrated 4K/60p camcorder with a 4/3-type sensor. (As of March 2015, according to a Panasonic survey.)
*2: UHD (3840×2160) resolution, when 60p mode is selected



Target of New Camcorder

Combination of both DSLR and Camcorder

DSLR

Positive
・Picture Quality
・Depth of Field
・Shoot the Still picture, too
・Low Light Capability
・Interchangeable Lens
・Manual Control
▲Negative
・Difficult to master (focus, zoom)
・Limited recoding time
(media slot, Battery, Time limit 29m59sec

Camcorder

Positive
・Better for video shooting
・Simple to Use
・Capability of shooting live events
・Auto Focus
・Lens performance (fast lens w/ long zoom)
・Run and Gun
・Low light capability
▲Negative
・Lack of manual controls

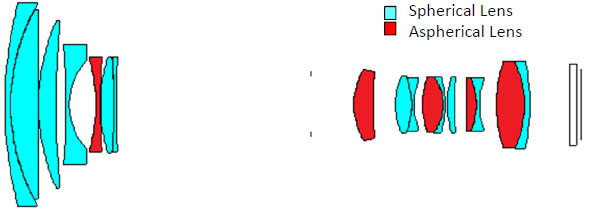

Lens Construction

17 elements in 11 Group, 5 aspherical lens
Panasonic AG-DVX200 4K Video Camera
How to Fix Output on the LCD

This is not a Malfunction

In order to prevent the burn of the DVX200’s OLED viewfinder, it lights only when the eye sensor has reacted.And its LCD panel is turned off during the viewfinder is turned on.

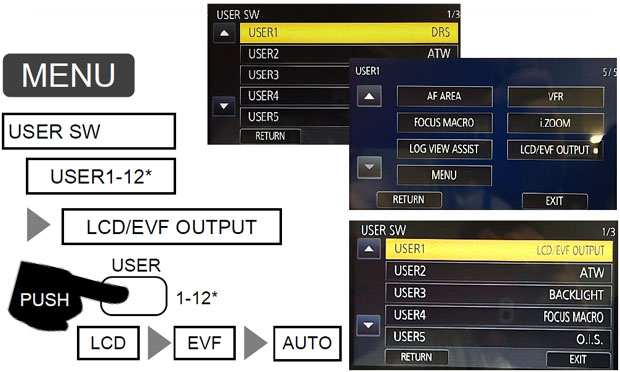

You can fix your DVX200’s output on its LCD panel by the USER SW.

Panasonic AG-DVX200 4K Video Camera
*USER SW 9-12 are displayed on the LCD panel

Note
• OLED (Organic Light-Emitting Diode) works without a backlight; thus, it can display deep black levels and can be thinner and lighter than a liquid crystal display (LCD). In low ambient light conditions (such as a dark room), an OLED screen can achieve a higher contrast ratio than an LCD, regardless of whether the LCD uses cold cathode fluorescent lamps or an LED backlight. (Wikipedia) On the other hand, as a disadvantage of the OLED, generally as compared to the LCD, the product lifetime is shorter, it is apt to occur burn theoretically.
Therefore, the DVX200 has the specification to automatically turn off the OLED viewfinder by the eye sensor.

• Alternatively, you could also set weak sensitivity of the eye sensor.

Panasonic AG-DVX200 4K Video Camera



Various Recording mode

Recording Size Frame Rate Bitrate Compression Sound Format
4096x2160 24.00p 100 Mbps LongGOP LPCM MP4 / MOV
3840x2160 59.94p / 50.00p 150 Mbps
29.97p / 25.00p / 23.98p 100 Mbps
1920x1080 59.94p / 50.00p 200 Mbps ALL-Intra LPCM MP4 / MOV
29.97p / 25.00p / 23.98p
59.94p / 50.00p 100 / 50 Mbps LongGOP
29.97p / 25.00p / 23.98p 50 Mbps
59.94i / 50.00i
1920x1080 59.94p / 50.00p 28 Mbps LongGOP AC3 AVCHD
59.94i / 50.00i 24 / 17 Mbps
23.98p 24 Mbps
1440x1080 59.94i / 50.00i 5 Mbps
1280x720 59.94p / 50.00p 9 Mbps
720x480 59.94i (16:9 / 4:3) 9M
720x576 50.00i (16:9 / 4:3) 9M
