Sony SDTV Compact Production Switcher DFS-800 (Discontinued)

This model has been discontinued
Powerful DME Switcher with a Broad Range of Functionalities and Spectacular 3D Effects

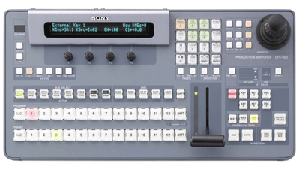

Sony DFS-800
E-mail me the Special Offer
We offer Price less than USD 22,600


Sony introduces a new generation DME Switcher in response to the ever-important needs of SD-based live production systems
The Sony DFS-800 is a powerful DME Switcher that - despite its small footprint and affordable price - provides a wide variety of switcher functions, exceptional system versatility, and extreme creative power.

It is equipped with eight SD-SDI inputs and outputs as standard; however, as user requirements grow, these can be increased to 16 by adding optional expansion boards. Other standard features include six keyers (each capable of chromakeying), frame memory and a six-channel 3D DME unit.
With its creative ability and high-quality special effects, the DFS-800 will serve as a powerful , yet cost-effective tool at live events, for small-scale production studios and editing suites.

Click to View:

Features
Specifications
Supplied Accessories
Optional Accessories


FEATURES
  • Powerful Mix / Effect Functionality
  • Flexible Input/Output Configurations
  • Keyers
  • Wide Range of Creative Effects Including 3D
  • Powerful Frame Memory Function
  • Optional "Pre-Combiner" Function
  • Compact and Intuitive Control Panel
  • Four colour background generators
  • Eight GPI inputs and 24 parallel tally outputs

  • Serial port for control from editors
  • Adjustable levels of process amplifier and white clip
  • USB port on the control panel for connecting USB flash memory drive and mouse
  • Storage of up to 100 patterns of sequences containing 31 settable key frames
  • 96-event memory can be easily recalled using direct buttons
  • 2-RU processing unit
SPECIFICATIONS
Supplied Accessories
Switch Processor : Control Panel connection cable, Rack mount brackets
Control Panel : Operation Manual
General
Power Requirement AC 100V to 240V +-10%, 50.60Hz
Power Consumption: Switcher Processor : 100W (max. 160W)
Control Panel : 50W
Operating Temperature : 5 to 40 degree C (41 to 104 degree F)
Operating Humidity : 30 to 90% (no condensation)
Dimension (WxHxD) Switcher Processor : 430 x 88 x 425 mm (17x3.5x16.75 inches)
Control Panel : 430x155.8x221 mm (17x6.25x8.75inches)
Mass: Switcher Processor : Approx. 15kg (33lb 1oz)
Control Panel : Approx. 5kg (11lb)
Television Standard : 525 / 60 (NTSC), 625 / 50 (PAL) (Selectable at menu)
Signal Processing : 4:2:2 Digital component, 10-bit
Input Signals
Video Inputs : 8 standard inputs, optionally expandable 16 inputs.
Digital component : 270 Mbps, 75ohm, BNC
Video Inputs (option) See the board configuration
Digital component : 270 Mbps, 75ohm, BNC
Analog component : Y: 1.0Vp-p. B-Y/R-Y: 0.7Vp-p, BNC
Analog composite: 1.0Vp-p, 75ohm, BNC
Reference Input: Analogue black burst: 0.429Vp-p (NTSC) / 0.45Vp-p (PAL). 75ohm or Loopthrough, BNC
Output Signals
Video Output : 8 standard output (PGM x 2, PREV, Clean, AUX x 4), optional expandable 16 outputs.
Digital component:  270 Mbps, 75ohm, BNC
Video Output (option) See the board configuration
Digital component : 270 Mbps, 75ohm, BNC
Analog component : Y: 1.0Vp-p. B-Y/R-Y: 0.7Vp-p, BNC
Analog composite: 1.0Vp-p, 75ohm, BNC
RGB + SYNC : R/G/B : 0.7Vp-p, 75ohm, BNC
Reference Output: Analogue black burst: 0.429Vp-p (NTSC) / 0.45Vp-p (PAL). 75ohm or Loopthrough, BNC
Quantization : Y: 10-bit, C: 10-bit, Key: 10-bit
I/O Delay : 1H (When FS, Edge/Shadow and DME not applied to output) max. 4 frames
Control Signals
Switch Processor Control panel : Ethernet 10 / 100BASE-T, RJ-45x1
Editor : D-sub 9pin (female) x 1
GPI IN/TALLY : 37-pin D-sub (female) x 1 (8 inputs / 24 outputs)
Control Panel : Switcher : Ethernet 10 / 100BASE-T, RJ-45x1
VGA: D-sub 15pin (female) x 1
USB : USB1.1 or 2.0 , "A" Type (female) x 1
