HDW-750P

Sony HDCAM Camcorder- Discontinued

HDCAM Camcorder

Home > Sony > HD > HDW-750P

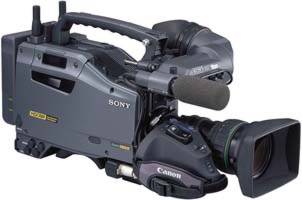

Sony HDCAM Camcorder HDW-750P (Discontinued)HDW750P

Sony HDW-750P

Discontinued




Recommended Microphone

Panasonic AG-AF101
Sennheiser ME66+K6

ME 66 Short gun Microphone Head + K6 Powering Module for Batter/Phantom Powering

ME 66 Short gun Microphone Head


The HDW-750 camcorder is extremely compact and light-weight while maintaining the robust and reliable construction for which Betacam technology is renowned. The Multi Matrix function offers unique possibilities for creative intervention by allowing selective color enhancement of alteration. Features are available that allow image optimization in real-time. Paint functions permit color levels to be adjusted on set according to the cinematographers creative needs. This latest addition to the HDCAM family is an economical, well balanced solution for next generation EPF requirements

Highlights:

  • HAD Sensor technology
  • F10 at 2000 lux
  • 54 dB Signal to noise ratio
  • -135dB smear
  • 10 bit A/D
  • 600% Dynamic Range
  • Turbo Gain (+42dB gain up) position
  • Built in HDSDI output
  • Dual Optical Filter Wheels
  • Dual Earphone Output
Features
  • Colorimetry
  • Color Balance
  • Paint Functions
  • Contrast Range
  • Auto Tracing White Balance
  • Adaptive Detail Control
  • Skin Tone Detail
  • Knee Saturation Control
Specifications:
Mass Approx 5.4kg (12 lb. 15oz) with cassette and BPL-60A battery
Power Consumption 34W (record mode, without HDVF-20A)
Operating Temperature 0°C to 40°C (+32°F to 104°F)
Pickup Device 3 Chip 2/3 type FIT CCD
Picture Elements 2,200,000 pixels
Smear Level -135dB
Modulation Depth 45 +/- 5% at 27.5 MHz
Minimum Illumination .15 lux (at 42dB gain)
Sensitivity f10.0 at 2000 lux

Supplied Accessories:
  • HD 2" Electronic Viewfinder (HDVF-20A)
