Specification
This model has been  Replaced by  DSR-PD177P




Latest Camcorder

PXW-X160 | PXW-X180

PXW-X200 | AG-DVX200 4K camcorder





  DSR-PD170 Specification
  Lens

12:1 Variable Speed (1.2 - 22 sec.) zoom lens (48x digital zoom)

F=6.0 to 72.0 mm; F1.6 to 2.4; Filter Diameter 58 mm

  Focus Auto/Manual (ring)/Infinity/One push auto
  Imaging Device Three 1/3-inch type CCDs, Gross 380,000 pixels/effective 340,000 pixels (NTSC), Gross 450,000 pixels/effective 400,000 pixels (PAL), Progressive/Interlace Scan


White Balance

Auto/One-push/Outdoor (5800 K)/Indoor (3200 K)


Shutter Speed

1/4, 1/8, 1/15, 1/30, 1/60, 1/90, 1/100, 1/125, 1/180, 1/250,1/350, 1/500, 1/725, 1/1000, 1/1500, 1/2000, 1/3000,1/4000, 1/6000, 1/10000 second (NTSC),1/3, 1/6, 1/12, 1/25, 1/50, 1/60, 1/100, 1/120, 1/150, 1/215,1/300, 1/425, 1/600, 1/1000, 1/1250, 1/1750, 1/2500,1/3500, 1/6000, 1/10000 second (PAL)



Exposure

Auto/Manual


Gain

0, 3, 6, 9, 12, 15, 18 dB
  Minimum Illumination 1 lx with F1.6 at 18 dB gain
  Horizontal Resolution 530 TV lines
  Viewfinder 180,000 dot Black & White LCD, Horizontal Resolution: 500 TV lines
  Audio Signal

Rec.                48 kHz/16-bit, 32 kHz/12-bit

Playback         48 kHz/16-bit, 32 kHz/12-bit, 32 kHz/16-bit, 44.1 kHz/16-bit



Built-in Speaker

Dynamic Speaker, 20 mm



LCD

Hybrid, 2.5-inch, 211, 200 dots (960 x 220)


Tape Speed

Approx. 28.2 mm/sec (DVCAM mode)

Approx. 18.8 mm/sec (DV SP mode)



Maximum Recording Time

40 minutes (DVCAM mode)

60 minutes (DV SP mode)



Video Signal

EIA Standard, NTSC color system (DSR-PD170)

CCIR Standard, PAL color system






Connectors


  Video IN/OUT

RCA pin x 1, Luminance signal: 1 Vp-p, 75 ohm unbalanced, sync negative

  Audio IN/OUT

RCA pin x 2, 327 mV , Output impedance with less than 2.2 kohm.Input impedance with more than 47 kohm.

  S-Video IN/OUT Mini-Din 4-pin x 1, Luminance signal: 1 Vp-p, 75 ohm, unbalanced, Chrominance signal: 0.286 Vp-p (NTSC), 0.3 Vp-p (PAL)
  Audio IN

XLR 3-pin female x 2, 327 mV, -60 dBu, 3 kohm, +4 dBu, 10 kohm, (0 dBu = 0.775 Vrms)

i.LINK *7 (DV IN/OUT) 4-pin x 1, LANC Stereo mini jack (2.5 mm) x 1

Headphone Stereo mini jack (3.5 mm) x 1, External DC IN 8.4 V for AC-L15 AC adaptor.

  Operating Temperature 0 to 40 C (32 to 104 F)


Storage Temperature

-20 to 60 C (-4 to 140 F)
  Power Requirements DC 7.2 V (Battery), DC 8.4 V (AC adaptor)
  Power Consumption

Rec. with LCD viewfinder only: 4.7 W

Rec. with LCD monitor only: 5.4 W

Rec. with LCD viewfinder and LCD monitor: 5.7 W

Playback on LCD: 4.1 W

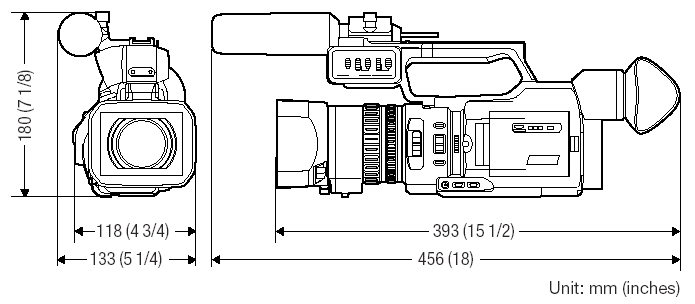

  Dimensions (W x H x D) (camcorder only)

118 x 180 x 393 mm (4 3/4 x 7 1/8 x 15 1/2 inches)

133 x 180 x 456 mm (5 1/4 x 7 1/8 x 18 inches)

including microphone



Mass Approx.

1.6 kg (3 lb 6 oz) (camcorder only)



Supplied Accessories

AC-L15 AC Adaptor

ECM-NV1 Electret Condenser Microphone

NP-F330 InfoLITHIUM Rechargeable Battery Pack

VCL-HG0758 Wide Conversion Lens

LSF-S58 Lens Hood for Wide Conversion Lens and Hood Cap

Lens Hood with Built-in Lens Cap

RMT-811 Remote Commander and R6 Batteries (x2)

Carrying Belt

i.LINK Cable Strap

Stereo AV Cable
