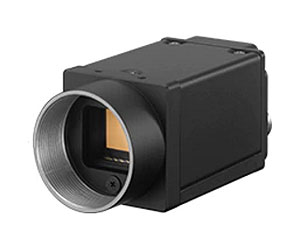

Sony XCG-CG160C Color Digital Video Camera Module

Product Code: XCGCG160C

Sony XCG-CG160C
review button

• High frame rate
• IEEE1588 compliant
• Area Gain
• Free set sequence
• Image Flip
• Binning
• Multi ROI
• Shading Correction
• Defect correction
• 3 x 3 filter
• Temperature Readout
• Trigger Range Limit

It is a new series of PoE-enabled GigE Vision interface digital camera equipped with a global shutter CMOS sensor. XCG-CG160 and XCG-CG160C are the latest digital cameras from Sony to incorporate Global Shutter CMOS sensor technology. The cameras provide Image processing capabilities that satisfy the requirements of high reliability, high speed and high sensitivity in applications such as machine vision.

Image Type Color
Image Size 1.6 Mega
Image sensor 1/2.9-type Global Shutter CMOS Sensor
No. of effective pixels (H x V) 1456 x 1088
Standard output pixels (H x V) 14400 x 1080
Color filter Primary color mosaic
Frame rate 75 fps (8 bit)
45 fps (10 bit)
Minimum Illumination 12 lx
(Iris: F1.4, Gain: +18dB, Shutter: 1/30s)
Sensitivity F5.6 (2000 lx, Gain: 0 dB, Shutter: 1/30s)
SNR More thatn 50 dB (Lens close, Gain:0 dB, 8 bits)
Gain Auto, Manual: 0 dB to 18 dB
Shutter speed Auto, Maual: 60 to 1/100,000 s
White balance Manual, One push, Auto
Camera Features
Readout modes Normal, part reading (Multi-ROI)
Readout features LUT (Binarization, Gamma (arbitary setting), Test pattern
Synchronization Hardware trigger, Software trigger, PTP (IEEE1588)
Trigger modes OFF (Free run), ON (Trigger edge detection, Trigger width detection), Special trigger (Bulk/Sequential)
User Set/ Memory channel 16 channels
User memory 64 bytes x 16ch
Partial Scan 16 to 1456 (W)
16 to 1088 (H)
GPO EXPOSURE / Strobe / Sensor readout / Trigger through / Pulse generation signal / User definition 1, 2, 3 (Selectable)
Other features Area gain, Shading correction, Defect correction, Temperature readout, LUT, 3 x 3 filter
Video data output digital Raw 8, 10, 12 bit (default setting 8 bits), RGB, YUV422, YUV444
Digital Interface Gigabit Ethernet (1000BASE-T/100BASE-TX)
Camera specification GigE Vision Version2.0, 1.2
Output data clock -
Digital I/O ISO IN (x1), ISO OUT (x1), TTL IN/OUT (x1, selectable)
Lens mount C-mount
Flange focal length 17.526 mm
Power requirements DC +12V(10.5V to 15.0V), IEEE802.3af (37v to 57v)
Power consumption DC +12V 3.0 W (max)
IEEE802.3af 3.6 W (max)
Operating temperature -5C to +45C
Dimensions 29 x 29 x 42 mm (excluding protrusions)
Weight Approx 65g
Supplied Accessories Lens mount cap (1), Operating Instructions (1)
