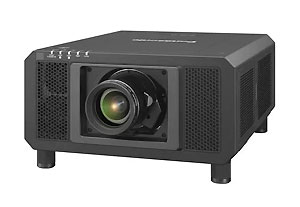

Panasonic PT-RQ13KU 3-Chip DLP™ 4K+ Large Venue Laser Projector

Panasonic PT-RQ13KU The World's Lightest and Smallest 3-Chip DLP 4K+ Laser Phosphor Projector

Panasonic Bright and Vivid Picture Quality

Combining 3-Chip DLP™ imaging with Panasonic’s original SOLID SHINE Laser technology, the PT-RQ13K achieves lifelike 4K+ resolution with a high 10,000 lm of brightness. Two powerful solid-state laser light source modules and three independent DLP™ chips for red, green, and blue ensure outstanding brightness, color accuracy, and contrast.

More Accurate Color Reproduction

The PT-RQ13K captures a more accurate Rec. 709-compliant color space than comparable laser projectors. A blue laser ensures greater precision while an expanded color gamut improves white balance accuracy

Ultra-Durable Laser Optical Engine for Continuous 24-hour Operation

Dual-Drive Laser Optical Engine uses two discrete light sources grouping laser diodes into modules. A laser light source redundancy circuit ensures minimal reduction in brightness and color uniformity in the event of laser diode failure, making the PT-RQ13K ideal for applications where maintaining vision is critical. Further, brightness decreases gradually and in a linear rather than exponential fashion (as is common to lamp-based projectors) over its 20,000-hour
*1 maintenance-free service life.

Quad Pixel Drive Goes Beyond 4K

The PT-RQ13K achieves better-than-4K resolution by employing a high-speed 2560 x 1600-pixel (WQXGA) DMD chip that shifts each pixel vertically and horizontally, effectively quadrupling the pixel count. Working together with Real Motion Processor 240 Hz frame-creation technology, Quad Pixel Drive produces stunningly detailed 5120 x 3200-pixel (4K+, 16:10) images that retain natural sharpness and clarity when upscaling from a native Full HD source. As well as producing liquid-smooth and accurate video, the added detail also makes small text clearly legible on images used in presentations and lectures.

Flexible Setup and Smooth Operation

Unlike conventional lamp-based projectors, the PT-RQ13K’s SOLID SHINE Laser system allows free 360-degree installation through any axis. Together with extra-wide-range powered lens shift and a big range of optional lenses shared by Panasonic’s 3-Chip DLP™ projector family, the PT-RQ13K can be mounted in any way desired without picture distortion

Dynamic Contrast Function for High 20,000:1 Contrast

The PT-RQ13K projector directly modulates laser power output to enable high
contrast while reducing power consumption. Digitally controlled frame-byframe scene-linking modulation ensures highly precise light output adjustment, and accurate 20,000:1 contrast is achieved even when bright and dark scenes suddenly or frequently interchange. There is also almost no drop in contrast after extended use.

System Daylight View 3 Improves Color Perception

This proprietary technology optimizes image quality to improve color perception of images projected onto walls and other exotic surface materials (ideal for mapping applications) as well as in environments with bright ambient light. Combined with high 10,000 lm brightness, the PT-RQ13K delivers clear and comfortable viewing in the most challenging applications.

Waveform Monitor Function

When source device output level uctuates due to the performance of the device or its cable connections, the original black and white le vels of the image cannot be reproduced correctly. The PT-RQ13K displays the waveforms on screen where they can be adjusted either automatically or manually as preferred

General Specifications
Brightness	10,000 lumens
Lamp	3-Chip DLP Laser
Resolution	5,120 x 3,200 pixels (Quad Pixel Drive: ON)
Power Supply	AC 100-240 V, 50/60 Hz (Note: Brightness may decrease depending on power conditions)
Power Consumption	1,270 W (0.3 W with STANDBY MODE set to ECO. 4 W with STANDBY MODE set to NORMAL.), Average power consumption NORMAL: 913W ECO: 782W LONG LIFE1: 531-732W LONG LIFE 2: 477-702W LONG LIFE 3: 423-665W *Operating Temperature: 25 °C (77 °F), Altitude: 700m (22 ft 12 in), ICE627087: 2008 Broadcast contents, Picture mode: Dynamic, Dynamic Contrast3
DLP Chip | Panel Size	22.9 mm (0.9 inches) diagonal (16:10 aspect ratio)
DLP Chip | Display Method	DLP chip x 3 (R, G, B), DLP projection system
DLP Chip | Pixels	4,096,000 (2,560 x 1,600) x 3, total of 12,288,000 pixels 49,152,000 (12,288,000 x 4) pixels when Quad Pixel Drive set to ON
Refresh Rate	240 Hz
Lens	Optional powered zoom/focus lenses
Light Source	Laser Diode (Laser class: Class 1)Class 3R for North America. Luminance life for set: 20,000 hours at half luminance (normal)/ 24,000 hours at half luminance (Eco) Temperature: 35°C (95°F), Altitude 700m (22ft 12in), Dust: 0.15mg/m³ 43,800 hours at constant luminance (Longlife1) 61,320 hours at constant luminance (Longlife2) 87,600 hours at constant luminance (Longlife3)
Screen Size	1.78-25.4 m (70-1,000 inches) (16:10 aspect ratio) 1.78-15.24 m (70 – 600 inches) with the ET-D75LE8 (16:10 aspect ratio) 3.05-15.24 m (120 – 600 inches) with the ET-D75LE90 (16:10 aspect ratio)
Center-to-Corner Uniformity	90%
Contrast	20,000:1 (full on/full off, in Dynamic Contrast 3 mode)
Scanning Frequency | SDI	SD-SDI signal SMPTE ST 259 compliant (YCBCR 4:2:2 10-bit): 480i, 576i Single-link HD-SDI signal SMPTE ST 292 compliant(YPBPR 4:2:2 10-bit): 720/60p, 720/50p, 1035/60i, 1080/60i, 1080/50i, 1080/25p, 1080/25sF, 1080/24p, 1080/24sF, 1080/30p, 1080/30sF Single-link 3G-SDI signal SMPTE ST 424 compliant (YPBPR 4:2:2 10-bit): 1080/60p, 1080/50p, 2048 x 1080/48p, 2048 x 1080/50p, 2048 x 1080/60p, (RGB 4:4:4 12-bit/10-bit, YPBPR 4:4:4 12-bit/10-bit): 1080/60i, 1080/50i, 1080/25p, 1080/25sF, 1080/24p, 1080/24sF, 1080/30p, 1080/30sF, (RGB 4:4:4 12-bit/10-bit, YPBPR 4:4:4 12-bit/10-bit, X’Y’Z’ 4:4:4 12-bit): 2048 x 1080/24p, 2048 x 1080/24sF, 2048 x 1080/25p, 2048 x 1080/25sF, 2048 x 1080/30p, 2048 x 1080/30sF Dual-link HD-SDI signal SMPTE ST 372 compliant(YPBPR 4:2:2 10-bit): 1080/50p, 1080/60p, (RGB 4:4:4 12-bit/10-bit, YPBPR 4:4:4 12-bit/10-bit): 1080/60i, 1080/50i, 1080/24p, 1080/24sF, 1080/25p, 1080/25sF, 1080/30p, 1080/30sF, 2048 x 1080/24p, 2048 x 1080/24sF, 2048 x 1080/25p, 2048 x 1080/25sF, 2048 x 1080/30p, 2048 x 1080/30sF, (X’ Y’ Z’ 4:4:4 12-bit*3): 2048 x 1080/24p, 2048 x 1080/24sF, 2048 x 1080/25p, 2048 x 1080/25sF, 2048 x 1080/30p, 2048 x 1080/30sF Dual-link 3G-SDI signal SMPTE ST 425 compliant (YPBPR 4:4:4 12-bit/10-bit): 1080/50p, 1080/60p, 2048 x 1080/48p, 2048 x 1080/50p, 2048 x 1080/60p, (RGB 4:4:4 12-bit/10-bit) : 1080/50p, 1080/60p, 2048 x 1080/48p, 2048 x 1080/50p, 2048 x 1080/60p, (YPBPR 4:2:2 10-bit): 3840 x 2160/24p, 3840 x 2160/25p, 3840 x 2160/30p, 4096 x 2160/24p, 4096 x 2160/25p, 4096 x 2160/30p Quad-link HD-SDI signal (YPBPR 4:2:2 10-bit) : 3840 x 2160/24sF, 3840 x 2160/24p, 3840 x 2160/25sF, 3840 x 2160/25p, 3840 x 2160/30sF, 3840 x 2160/30p, 4096 x 2160/24sF, 4096 x 2160/24p, 4096 x 2160/25sF, 4096 x 2160/25p, 4096 x 2160/30sF, 4096 x 2160/30p Quad-link 3G-SDI signal SMPTE ST 425 compliant (YPBPR 4:2:2 10-bit)： 3840 x 2160/60p, 3840 x 2160/50p, 4096 x 2160/60p, 4096 x 2160/50p, (YPBPR 4:2:2 12-bit, YPBPR 4:4:4 10-bit/12-bit, RGB 10-bit/12-bit) 3840 x 2160/24sF, 3840 x 2160/24p, 3840 x 2160/25sF, 3840 x 2160/25p, 3840 x 2160/30sF, 3840 x 2160/30p, 4096 x 2160/24sF, 4096 x 2160/24p, 4096 x 2160/25sF, 4096 x 2160/25p, 4096 x 2160/30sF, 4096 x 2160/30p SDI1/SDI2 Simultaneous inputs (2 x speed): 1080/60p, 1080/50p (1st FRAME: SDI1, 2nd FRAME: SDI2) SDI1/SDI2/SDI3/SDI4 Simultaneous inputs (4 x speed): 1080/60p, 1080/50p (1st FRAME: SDI1, 2nd FRAME: SDI2, 3rd FRAME: SDI3, 4th FRAME: SDI4) DIGITAL LINK: Movie signal resolution : 480i/576i – 4096 x 2160, Still picture signal resolution : 640 x 400 – 2560 x 1600 (non-interlace), Dot clock frequency: 25 MHz – 297 MHz
Keystone Correction Range	Vertical: ±40° (±22° with the ET-D75LE50, ±28° with the ET-D75LE6, +5° with the ET-D75LE90), horizontal: ±15° (0° with the ET-D75LE90)
Optical Axis Shift | Vertical	±59% (±44% with the ET-D75LE6), (+74-84% with the ET-D75LE90), from center of screen, powered
Optical Axis Shift | Horizontal	±29% (±19% with the ET-D75LE6), (-12-16% with the ET-D75LE90), from center of screen, powered NOTE: Optical axis shift function cannot be operated when used with the ET-D75LE50.
Installation	Ceiling/floor, front/rear
Terminals | SDI In 1	BNC x 1, 3G/HD/SD-SDI input, Dual-link input (LINK-A) , Quad-link input SD-SDI signal SMPTE ST 259 compliant HD-SDI signal SMPTE ST 292 compliant 3G-SDI signal SMPTE ST 424 compliant Dual-link HD-SDI signal SMPTE ST 372 compliant Dual-link 3G-SDI signal SMPTE ST 425 compliant Quad-link HD-SDI signal Quad-link 3G-SDI signal SMPTE ST 425 compliant
Terminals | SDI In 2	BNC x 1, 3G/HD/SD-SDI input, Dual-link input (LINK-B) , Quad-link input SD-SDI signal SMPTE ST 259 compliant HD-SDI signal SMPTE ST 292 compliant 3G-SDI signal SMPTE ST 424 compliant Dual-link HD-SDI signal SMPTE ST 372 compliant Dual-link 3G-SDI signal SMPTE ST 425 compliant Quad-link HD-SDI signal quad-link 3G-SDI signal SMPTE ST 425 compliant
Terminals | SDI In 3	BNC x 1, 3G/HD/SD-SDI input, Dual-link input (LINK-A), Quad-link input SD-SDI signal SMPTE ST 259 compliant HD-SDI signal SMPTE ST 292 compliant 3G-SDI signal SMPTE ST 424 compliant Dual-link HD-SDI signal SMPTE ST 372 compliant Dual-link 3G-SDI signal SMPTE ST 425 compliant Quad-link HD-SDI signal quad-link 3G-SDI signal SMPTE ST 425 compliant
Terminals | SDI In 4	BNC x 1, 3G/HD/SD-SDI input, Dual-link input (LINK-B), Quad-link input SD-SDI signal SMPTE ST 259 compliant HD-SDI signal SMPTE ST 292 compliant 3G-SDI signal SMPTE ST 424 compliant Dual-link HD-SDI signal SMPTE ST 372 compliant Dual-link 3G-SDI signal SMPTE ST 425 compliant Quad-link HD-SDI signal quad-link 3G-SDI signal SMPTE ST 425 compliant
Terminals | Frame Sync In/Out	BNC x 1, (frame-synchronizing timing signal)
Terminals | Frame Sync Out	BNC x 1, (frame-synchronizing timing signal)
Terminals | Serial In	D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
Terminals | Serial Out	D-sub 9-pin (male) x 1 for link control
Terminals | Remoter 1 In/Out	M3 x 1 for link control (for wired remote control)
Terminals | Remote 2 In	D-sub 9-pin (female) x 1 for external control (parallel)
Terminals | DIGITAL LINK/LAN	RJ-45 x 1 (for network, DIGITAL LINK connection (HDBaseT™ compatible), 100Base-TX,compatible with Art-Net, PJLink™ (class 1), Deep Color, HDCP2.2)
Terminals | Expansion Slot	x 2 (SLOT 1， SLOT 2), SLOT NX (Compatible with Optional Board)
Power Cord Length	3.0 m (9 ft 10 in)
Cabinet Materials	Molded plastic
Dimensions (W x H x D)	578 x 323.5 x 740 mm (22-3/4 x 12-23/32 x 29-1/8 inches) (with projections) 578 x 270 x 725 mm (22-3/4 x 10-5/8 x 28-17/32 inches) (without lens, feet or projections)
Weight	49 kg (108.0 lbs) (without lens)
Operating Noise	46 dB
Operating Temperature	Ambient operating temperature: 0°C to 45°C (32 °F to 113 °F). Ambient operating humidity: 10% – 80% (no condensation) When the operating mode is set to “Normal”, the operating temperature range is 0°C to 45°C (32 °F to 113 °F), and at altitudes from 1,400 m to 4,200 m (4,593 ft to 13,780 ft) it is 0°C to 40°C (32 °F to 104 °F). When the operating mode is set to “Eco”, or “Long Life 1/2/3”, the operating temperature range is 0°C to 40°C (32 °F to 104 °F). When the projector is used with a Smoke Cut Filter, the operating temperature range is 0°C to 35°C (32 °F to 95 °F). Furthermore, when the operating mode is set to “Eco”, or “Long Life 1/2/3”, the projector cannot be used at altitudes above 2700 m (8,858 ft). In addition, when the projector is used with a Smoke Cut Filter, it cannot be used at altitudes above 1,400 m (4,593 ft). The brightness of the light source may drop depending on the operating environment and the operating temperature range in order to protect the projector.
Applicable Software	Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Geometry Manager Pro (ET-UK20 series Upgrade Kit and ET-CUK10 series Auto Screen Adjustment Kit)
Technology	3-chip DLP Laser
