Lasting Brightness and Picture Quality at Lower Cost
Learning Comes Easy with Bright and Dustproof
Projection

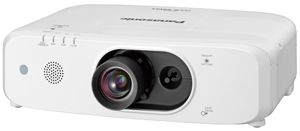

Endurance is the defining quality of our PT-FZ570 Series projector. Engineered to extend picture-perfect
performance, it features a
new dustproof optical drive, long-life lamp, and improved filtering technology
to maintain brightness and cut operating costs. Dependable without
compromise, students benefit from
compelling imaging performance while administrators save money every year: a win-win solution
from Panasonic, the
world leader in education projection.
* To operate wireless projection, the optional Wireless Module ET-WML100 is required. |
| Power supply |
100-240 V AC, 50/60 Hz |
| Power consumption |
413 W, (0.5 W when STANDBY MODE set to ECO*1, 12 W when STANDBY MODE set to NORMAL) |
| LCD panel |
Panel size |
16.3 mm (0.64 in) diagonal (16:10 aspect ratio) |
| Display method |
Transparent LCD panel (x 3, R/G/B) |
| Drive method |
Active matrix |
| Pixels |
2,304,000 (1,920 x 1,200) x 3, total of 6,912,000 pixels |
| Lens |
1.8x manual zoom (throw ratio 1.22-2.26:1), manual focus F 1.6-2.2, f 17.1-31.7 mm |
| Lamp |
270 W UHM lamp x 1, lamp replacement cycle (lamp power: NORMAL / ECO): 6,000 hours/8,000 hours*2 |
| Screen size (diagonal) |
1.02-7.62 m (40-300 in), 16:10 aspect ratio |
| Brightness*3 |
4,500 lm (lamp power: NORMAL, Image Mode: Dynamic) |
| Center-to-corner uniformity*3 |
90 % |
| Contrast*3 |
10,000:1 (full on/full off, lamp power: NORMAL, Image Mode: Dynamic, Iris: ON) |
| Resolution |
1,920 x 1,200 pixels |
Scanning
frequency |
HDMI/
DIGITAL LINK |
Dot clock: 25-162 MHz (640 x 400 pixels to 1,920 x 1,200 pixels) |
| RGB |
fH: 15-91 kHz, fV: 24-100 Hz, Dot clock: up to 162 MHz |
| YPBPR (YCBCR) |
fH: 15.73 kHz, fV: 59.94 Hz [480i (525i)]
fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
fH:
33.75 kHz, fV: 60 Hz [1080 (1125)/60i]
fH: 28.13 kHz, fV: 25 Hz [1080 (1125)/25p]
fH: 27.00 kHz, fV: 48 Hz [1080 (1125)/24sF]
fH: 67.50 kHz, fV:
60 Hz [1080 (1125)/60p]
fH: 31.47 kHz, fV: 59.94 Hz [480p (525p)]
fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]
fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p]
fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p]
fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p] |
| Video/YC fH: |
fH: 15.73 kHz, fV: 59.94 Hz [NTSC / NTSC4.43 / PAL-M / PAL60],
fH: 15.63 kHz, fV: 50 Hz [PAL / PAL-N / SECAM] |
| Optical axis shift |
Vertical |
±60 % |
| horizontal |
±30 % |
| Keystone correction range*5 |
Vertical ±25°, horizontal ±30° |
| Installation |
Ceiling/floor, front/rear |
| Built-in speaker |
4.0 cm round shape x 1, output power 10.0 W (monaural) |
| Terminals |
HDMI IN |
HDMI 19-pin x 2 (Deep Color, compatible with HDCP),
audio signal: Linear PCM (Sampling frequency: 48 kHz/44.1 kHz/32 kHz) |
| Computer 1 IN |
D-sub HD 15-pin (female) x 1 (compatible with RGB or YPBPR / YCBCR) |
Computer 2 IN
/1 OUT |
D-sub HD 15-pin (female) x 1 (compatible with RGB or YPBPR / YCBCR), input / output switching |
| VIDEO IN |
Pin jack x 1 (composite video) |
| AUDIO IN |
Pin jack x 2 (L/R x 1), M3 x 2 (L-R x 2) |
| AUDIO OUT |
M3 x 1 (L-R x 1) for output (variable) |
| SERIAL IN |
D-sub 9-pin (female) x 1 for external control (RS-232C compliant) |
| LAN |
RJ-45 x 1 (for network connection, 10Base-T, 100Base-TX, compliant with PJLink™ |
LAN /
DIGITAL LINK |
RJ-45 x 1 (for network and DIGITAL LINK (video / audio / network / serial control) connection,
100Base-TX, compliant with PJLink™, HDCP compatible, Deep Color compatible) |
| USB-A |
USB terminal for optional Wireless Module (ET-WML100) x 1,
DC output terminal for power supply (DC 5 V, up to 900 mA) x 1 |
| Operation noise*3 |
33 dB (lamp power: NORMAL), 29 dB (lamp power: ECO) |
| Filter |
x 1 set (main filter x 1, pre filter x 1, replacement cycle: up to 16,000 hours*6) |
| Cabinet materials |
Molded plastic (PC + ABS) |
| Dimensions (W x H x D) |
498 x 145*7 x 398.3 mm (19-19/32 x 5-11/16*7 x 15-11/16 in) |
| Weight*8 |
Approximately 7.9 kg (17.4 lbs) |
| Operating environment |
Operating temperature: 0-40 °C (32-104 °F)*9, operating humidity: 20-80 % (no condensation) |
| Supplied accessories |
Power cord (including power cord holder) x 1*10,
wireless remote control unit x1, batteries for remote control (AAA / R03 / LR03 type) x 2,
software CD-ROM (Logo Transfer Software, Multi Monitoring & Control Software) x 1 |
*1 When Standby Mode is set to Eco, network functions such as power on over LAN will not
operate. Also, only certain commands can be received for external control using the serial terminal.
*2 This is the maximum value when the lamp is turned on
for 2 hours and off for 0.25 hours. If the lamp is turned on more frequently or kept on for a long time, lamp replacement cycle will be reduced. Usage
environment affects lamp lifespan.
*3 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
*4
Input signals that exceed supported resolution will be converted.
*5 Value differs when the correction for both directions is operated.
*6 Usage
environment affects the duration of the filter.
*7 With legs at shortest position.
*8 Average value. May differ depending on models.
*9 At
altitudes below 1,400 m (4.593 ft) above sea level. Operating temperature range is 0 °C to 35 °C (32 °F to 104 °F) when used at altitudes from 1,400 m to 2,700
m (4,593 ft to 8,858 ft) above sea level. Also, if the ambient temperature exceeds 35 °C (95 °F) (30 °C [86 °F] at high altitude), lamp power automatically
switches to Eco to in order to protect the projector.
*10 Power cords available (x2) for Europe, the UK and Asia only.
NOTES ON USE
1. Do not install the projector in locations that are subject to excessive water, humidity, steam, or oily smoke. Doing so may result in fire, malfunction,
or electric shock.
2. The projector uses a high-voltage mercury lamp that contains high internal pressure. This lamp may break, emitting a loud sound, or
fail to illuminate, due to impact or extended use.
3. The projector uses of high-wattage lamp that becomes very hot during operation. Please observe the
following precautions:
• Never place objects on top of the projector while it is in operation.
• Make sure there is an unobstructed space of 1,000 mm
(39-3/8 in) or more around the projector's exhaust openings.
• Do not stack projector units directly on top of one another for the purpose of multiple
(stacked) projection. When stacking projector units, be sure to provide the amount of space indicated between them. These space requirements also apply to
installation where only one projector unit is operating at one time and the other unit is used as a backup.
• If the projector is placed in a box or
enclosure, the temperature of the air surrounding the projector must match the operating temperature listed in the specifications table during use. Also, make
sure the projector’s intake and exhaust openings are not blocked. Ensure there is sufficient ventilation to prevent hot air from the exhaust openings being
recirculated into the intake opening.
4. The lamp replacement cycle duration becomes shorter if the projector is operated repeatedly for short periods.
•
The lamp replacement cycle varies greatly depending on individual lamp characteristics and usage conditions.
• The brightness of the lamp will
gradually decrease with use.
• The usage environment affects the lamp replacement cycle.
5. Due to natural characteristics of lamps, screen
brightness may fluctuate. This is not an indication of faulty lamp performance. |
|
|
