| Power supply |
100-240 V AC, 50/60 Hz |
| Power consumption |
484 W, (444 W with LAMP POWER set to NORMAL, 325 W with LAMP POWER set to ECO),
(0.5 W when STANDBY MODE set to ECO*1, 12 W when STANDBY MODE set to NORMAL) |
| LCD panel |
Panel size |
16.3 mm (0.64 in) diagonal (16:10 aspect ratio) |
| Display method |
Transparent LCD panel (x 3, R/G/B) |
| Drive method |
Active matrix |
| Pixels |
2,304,000 (1,920 x 1,200) x 3, total of 6,912,000 pixels |
| Lens |

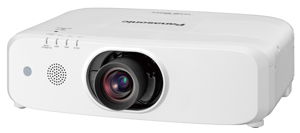

PT-EZ590 |
1.8x powered zoom (throw ratio 1.22-2.26:1), powered focus F 1.6-2.2, f 17.1-31.7 mm |
| PT-EZ590L |
Optional powered zoom/focus lenses and fixed-focus lens |
| Lamp |
320 W UHM lamp x 1,
lamp replacement cycle (lamp power: NORMAL/ECO): 4,000 hours/5,000 hours*2 |
| Screen size (diagonal) |
1.03-10.57 m (40-400 in), 16:10 aspect ratio |
| Brightness*3 |
5,400 lm (lamp power: NORMAL, Dynamic Mode, Iris: OFF, Daylight View: OFF, Auto Power Save: OFF) |
| Center-to-corner uniformity*3 |
90 % |
| Contrast*3 |
10,000:1 (lamp power: NORMAL, Dynamic Mode, Iris: ON, Daylight View: OFF, Auto Power Save: OFF) |
| Resolution |
1,920 x 1,200 pixels |
Scanning
frequency |
HDMI/
DIGITAL LINK |
fH: 15-90 kHz, fV: 24-100 Hz, Dot clock: 25-162 MHz, compatible with HDCP,
DIGITAL LINK not included on PT-EW550/EW550L. |
| RGB |
fH: 15-90 kHz, fV: 24-100 Hz, Dot clock: up to 162 MHz |
| YPBPR (YCBCR) |
fH: 15.73 kHz, fV: 59.94 Hz [480i (525i)]
fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
fH:
33.75 kHz, fV: 60 Hz [1080 (1125)/60i]
fH: 28.13 kHz, fV: 25 Hz [1080 (1125)/25p]
fH: 27.00 kHz, fV: 48 Hz [1080 (1125)/24sF]
fH: 67.50 kHz, fV:
60 Hz [1080 (1125)/60p]
fH: 31.47 kHz, fV: 59.94 Hz [480p (525p)]
fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]
fH:
28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p]
fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p]
fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p] |
| Video/YC fH: |
15.73 kHz, fV: 59.94 Hz [NTSC / NTSC4.43 / PAL-M / PAL60],
fH: 15.63 kHz, fV: 50 Hz [PAL / PAL-N / SECAM] |
| Optical axis shift |
Vertical |
±60 % from center of screen (powered) |
| horizontal |
±30 % from center of screen (powered) |
| Keystone correction range*5 |
Vertical ±25°, horizontal ±30° |
| Installation |
Ceiling/floor, front/rear |
| Built-in speaker |
4.0 cm round shape x 1, output power 10.0 W (monaural) |
| Terminals |
HDMI IN |
HDMI 19-pin x 2 (Deep Color, compatible with HDCP),
audio signal: Linear PCM (Sampling frequency: 48 kHz / 44.1 kHz / 32 kHz) |
| RGB 1 IN |
BNC x 5 (RGB or YPBPR/YCBCR x 1) shared with VIDEO IN (S-video / composite video) |
| RGB 2 IN |
D-Sub HD 15-pin (female) x 1 |
| VIDEO IN |
Pin jack x 1 (composite video) |
| MONITOR OUT |
D-sub HD 15-pin (female) x 1 (RGB x 1) (compatible with RGB or YPBPR / YCBCR) |
| AUDIO IN |
Pin jack x 2 (L/R x 1), M3 x 2 (L-R x 2) |
| AUDIO OUT |
M3 x 1 (L-R x 1) for output (variable) |
| SERIAL IN |
D-sub 9-pin (female) x 1 for external control (RS-232C compliant) |
| REMOTE 1 IN |
D-sub 9-pin (female) x 1 for external control (parallel) |
| REMOTE 2 IN |
M3 x 1 for wired remote control |
| LAN |
RJ45 x 1 (for network connection, 10Base-T, 100Base-TX, compliant with PJLink™) |
DIGITAL LINK /
LAN |
RJ-45 x 1 (for network and DIGITAL LINK (video/audio/network/serial control) connection,
100Base-TX, compliant with PJLink™, HDCP compatible, Deep Color compatible) |
| USB-A |
USB terminal for optional Wireless Module (ET-WML100) x 1,
DC output terminal for power supply (DC 5 V, up to 900 mA) x 1 |
| Operation noise*3 |
35 dB (lamp power: NORMAL), 29 dB (lamp power: ECO) |
| Filter |
x 1, recommended replacement cycle: 15,000 hours*6 |
| Mechanical shutter |
Yes |
| Cabinet materials |
Molded plastic (PC + ABS) |
Dimensions
(W x H x D) |
PT-EZ590 |
498 x 145*7 x 398.3 mm (19-19/32 x 5-11/16*7 x 15-11/16 in) (with supplied lens) |
| PT-EZ590L |
498 x 145*7 x 358 mm (19-19/32 x 5-11/16*7 x 14-3/32 in) (with supplied lens) |
| Weight*8 |
PT-EZ590 |
Approximately 8.4 kg (18.5 lbs) (with supplied lens) |
| PT-EZ590L |
Approximately 7.7 kg (17.0 lbs) (without lens) |
| Operating environment |
Operating temperature: 0-45 °C (32-113 °F)*9,
operating humidity: 20-80 % (no condensation) |
| Supplied accessories |
Power cord (including power cord holder) x 1*10,
wireless remote control unit x1, batteries for remote control (AAA / R03 / LR03
type) x 2,
software CD-ROM (Logo Transfer Software, Multi Monitoring & Control Software) x 1 |
Note: The PT-EZ590L/EW650L/EW550L delivers the same performance as the
PT-EZ590 / EW650 / EW550, but comes without a lens.
*1 When Standby Mode is set to Eco, network functions such as power on over LAN will not operate.
Also, only certain commands can be received
for external control using the serial terminal.
*2 This is the maximum value when the lamp is turned on for 2 hours and off for 0.25 hours. If the lamp is
turned on more frequently or kept on for a long time, lamp replacement cycle will be reduced. Usage environment affects the duration of the lamp.
*3
Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
*4 Input signals that exceed supported
resolution will be converted.
*5 With the supplied lens. Value differs when the correction for both directions is operated.
*6 Usage environment affects
the duration of the filter.
*7 With legs at shortest position.
*8 Average value. May differ depending on models.
*9 At altitudes below 1,400 m (4.593
ft) above sea level. Operating temperature range is 0 °C to 40 °C (32 °F to 104 °F) when used at altitudes from 1,400 m to 2,700 m (4,593 ft to 8,858 ft) above
sea level. Also, if ambient temperature exceeds 40 °C (104 °F) (35 °C [95 °F] at high altitude), lamp power automatically switches to Eco to in order to protect
the projector.
*10 Power cords available (x2) for Europe, the UK and Asia only. |
