Full HD video output via IP transmission
In addition to 3G-SDI and HDMI output, production quality full HD video output via IP transmission is supported with the AW-HE130W/K.

The camera delivers up to four channels of IP streaming video (H.264), with a maximum quality level of 1080/60p at 24 Mbps*1.

Simultaneous transmission to as many as 14 devices is also supported.*2 Flexible system setup is possible to meet various application needs.

List of supported Multi-streaming Outputs:

Settings		H.264			JPEG
		CH1	CH2	CH3/CH4	CH1/CH2/CH3
Resolution		1920x1080 1280x720	1920x1080 1280x720 640x360 320x180 160x90	1280x720 640x360 320x180 160x90	1920x1080 1280x720 640x360 320x180 160x90
Frame Rate	60Hz	60 fps	5 fps/15 fps/30 fps	5 fps/15 fps/30 fps	5 fps/15 fps/30 fps
	50Hz	50 fps	5 fps/12.5 fps/25 fps	5 fps/12.5 fps/25 fps	5 fps/12.5 fps/25 fps
Bit Rate		up to 24 Mbps
Voice Transmission		yes (AAC 48 KHZ)
PoE+		Yes



Transmit IP video without a separate encoder reduces cost and simpli es installation
There is no need for the separate encoder normally required when streaming video and audio via IP. Systems can be built with exceptional cost/performance benefits.



Supporting POE+*3 for lower installation cost
By connecting to network devices that support the IEEE 802.3at POE+ standard, power can be supplied via LAN cable. Since it is not necessary to install a power supply or even a local A.C. outlet, installation costs can be significantly reduced.



IP control with image monitoring using PC, Mac and mobile terminals
Using an IP browser, such as Internet Explorer or Safari, it is possible to set up and control the camera from a remote location,
This feature simplifies the management of cameras around a campus, or across a worldwide enterprise network. IP video monitoring and remote camera control can also be performed from mobile terminals such as an iPhone, iPad or Android device.



Flexible IP Control Architecture Simplifies System Design and Operation
Up to 100 x AW-HE130W/K cameras can be controlled via IP from a single AW-RP120G, AW-RP50, or PC.

An AW-HE130W/K can also be simultaneously controlled by up to five AW-RP120G or AW-RP50's via IP.AK-HRP200G can be used for precise color adjustment.



Three newly developed 1/2.86-type MOS sensors for high-level video capture and production.
Equipped with three newly developed 1/2.86-type full HD MOS sensors and DSP (Digital Signal Processor), AW-HE130W/K achieves high sensitivity, a high S/N ratio and high resolution through the use of advanced video processing.



Optical Image Stabilizer and Digital Extender for capturing clear images at any distance.
Optical Image Stabilization System (OIS)
Automatically minimizes the effect of small vibrations from the surface where the camera is mounted caused ; whether this is caused by the opening and closing of doors, nearby speakers, or other disturbances.

High Performance 20x Zoom Lens/1.4x Digital Extender Zoom
In addition to a sharp, fast F1.6, 20x optical zoom lens, the AW-HE130W/K is equipped with an innovative 1.4x digital extender that can increase the effective focal length of the lens by 40% while delivering smooth, high resolution video.

Color Temperature Adjustment Mode

In addition to the usual white balance modes, a new vari able Color Temperature-based function has been added. This makes it easier to make the precise camera adjustments required for dif ferent lighting conditions.

Dynamic Range Stretch (DRS) / Hybrid Digital Noise Reduction (Hybrid DNR)
Black defects, halation and washed-out colors are minimized for video images with a visually broad dynamic range (DRS). In addition, with Hybrid Digital Noise Reduction (Hybrid DNR), two types of noise reduction, 2D and 3D, are used together to enable clear video capture under a wide range of lighting conditions, with minimal af ter-image blurring or image degradation.

Equipped with Night Mode for infrared shooting
The AW-HE130W/K can deliver high-quality monochrome video in total darkness, when the camera's Night Mode is used in conjunction with an optional IR illuminator.

Freeze During Preset function
The new Freeze During Preset function may be enabled to freeze the video during preset playback. The immediately preceding still image is output during preset movements so that the swiveling movement is not displayed, making operations possible with one camera.

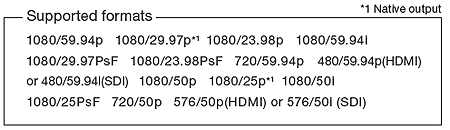

Supports multiple formats for exible output
In addition to typically supported formats, the camera supports output formats required for specialized applications, including 1080/29.97p, 1080/25p, 1080/23.98p.

Remote control video capture can now be more easily performed for specialized applications such as teleproduction, and scientic research.

Audio input function
The AW-HE130W/K also supports audio input, embedding, and encoding.
The input from the camera's switchable mic/line input can be combined with the HD-SDI, HDMI, and streaming outputs for mixing, recording or transmission.

Excellent quietness
Thanks to its fan-less design and advanced pan-tilt mechanism, the AW-HE130W/K is very quiet and greatly reducing audio noise during video capture.

The pan-tilt head also has a wide shooting range*, with a pan range of ±175 ° and a tilt range of -30 ° to 210 ° .

The newly developed pan-tilt drive provides high-speed operation
at maximum 60 °/s, excellent response to remote control operation, and highly precise stop control. These features combine to accurately capture fast action sports scenes or smooth concert footage. The noise level during operation is also very low, at NC35 or less, which is ideal for use in quiet environments.

Other Functions
●Equipped with ND lters (Through, 1/8, 1/64).
●Equipped with four types of scene les that can be set by the user.
●Preset memory of up to 100 positions.
●Functions such as freeze during preset, digital extender zoom, color temperature settings can be assigned to the user buttons on Panasonic controllers.
●Equipped with RS422 remote terminal; up to ve units can be controlled via serial control from a controller.
●Equipped with RS232C remote terminal (Standard serial communication support).
●Up to four units can be operated with a wireless remote controller (AW-RM50G sold separately).
●Easy installation thanks to use of turn-lock mechanism.
●Color variations (black/white) that can be chosen for different applications or conditions.

^*1: It may be necessary to upgrade the version of the controller in order to support the unit.
^*2: This cannot be configured when the format is 1080/29.97p, 1080/23.98p, 1080/29.97PsF 1080/23.98PsF, 1080/25p, or 1080/25PsF.
^*3: Native output
^*4: A ‘P’ signal is output as HDMI output, an ‘I’ signal is output as SDI and an analog output for output formats of 480/59.94p(i) and 576/50p(i)
^*5: To ensure safety, the unit must be secured using the mount bracket supplied.
^*6: Use of an STP (shielded twisted pair) cable is recommended.
^*7: Depending on the pan or tilt position, the camera may be reflected in the image.

 ^*1 Use the desktop version of Internet Explorer. (Internet Explorer for Windows UI is not supported.)
^*2 Windows® XP compatibility mode is not supported.
^*3 The 64-bit version of Internet Explorer® is not supported.

Rear View
