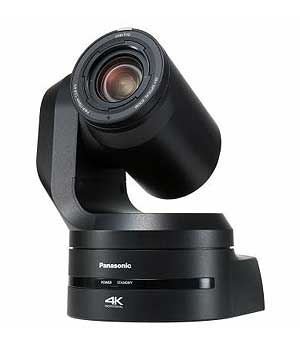

4K
60p/50p*1 Output, High-Magnification
Zoom and Wide-Angle Shooting for
Flexible Video Production
The next-generation PTZ camera
supports high-quality video
production in stadium, lecture
halls, churches and other venues.
Smooth and high-quality 4K
60p/50p*1, high-magnification zoom
and a wide shooting angle expand the
range of the PTZ camera's
applications. The camera is equipped
with a variety of interfaces and
supports simultaneous 4K/HD
operation which allows for
versatility in current and future
production systems.
1.0-type MOS Sensor Mounted
The large 1.0-type MOS sensor
enables high sensitivity shooting
with low noise. The sensor boasts a
light-capturing area that is
approximately four times larger than
that of the 1/2.3-type sensor to
guarantee a wide dynamic range.
Optical 20x Zoom /
Industry’s First* 75.1° Horizontal
Wide-Angle Shooting
Adding “i zoom” to our optical 20x
zoom, maintains high resolution
while enabling ultra-high resolution
32x zoom in HD mode and 24x zoom in
4K mode. This enables distant
subjects to be captured clearly.
Furthermore, 75.1° horizontal
wide-angle shooting enables capture
of the entire area, even when
installation space is limited.
* Internal investigation, Nov.
2018.
HDR (HLG)
Support*4
The camera
supports HDR (High Dynamic Range) to
prevent blown-out highlights and
blocked-up shadows and enable
picture quality close to that of the
naked eye. Conforms to BT.2020.
*4: The display
color space does not completely
comply with BT.2020. The color
balance is shifted to display
according to the BT.2020 color
gamut.
Optical Image
Stabilizer (OIS) Loaded
Vibrations of the mounted surface
caused by doors opening and closing,
audio systems and other installed
equipment are automatically
corrected to ensure stable shooting.
Night Mode Support
Equipped with Night Mode for
infrared shooting. The use of IR
rays in low-light situations enables
shooting in situations that would
normally be difficult, such as when
capturing wildlife (image output is
black and white).
Incredible Pan and Tilt Performance
Pan and tilt operate from a minimum
speed of 0.08°/s to a maximum of
180°/s in high-speed mode. This is
approximately 3 times the speed of
our current product*5 for rapid
capture of the intended target.
Furthermore, a low noise level of
NC35 or less has been ensured when
operating in normal mode, which is
perfect for shooting in quiet
environments*6.
*5:
Comparison with our current product,
AW-HE130W/K.
*6: Quietness,
stationary accuracy, etc., in
high-speed mode may vary from normal
mode.
Equipped with a
large Tally Lamp
Easy to
see from a distance
Multiple Interfaces Supported
A wide range of outputs are
supported: 12G-SDI, 3G-SDI, HDMI, IP
and even Optical Fiber output. The
addition of 4K/HD simultaneous
output guarantees the right output
for the operation at hand. 4K video
can be down converted to HD directly
within the camera. |
| <GENERAL> |
| Power Requirements: |
12 V DC (10.8 V to 13.2 V) |
| PoE++: |
IEEE802.3bt standard: DC 42 V to 57 V (Camera Input) |
| Current Consumption: |
4.0 A (XLR IN connector), 1.2 A (PoE++ power supply) |
| Ambient Operating Temperature: |
0 °C to 40 °C (32 °F to 104 °F) |
| Ambient Operating Humidity: |
20 % to 90 % (no condensation) |
| Storage Temperature: |
–20 °C to 50 °C (–4 °F to 122 °F) |
| Mass: |
Approx. 4.2 kg (9.24 lb) (excluding mount bracket) |
| Dimensions (W x H x D): |
213 mm x 267 mm x 219 mm (8-3/8 inches x 10-1/2 inches x 8-5/8 inches)
(excluding protrusions, direct ceiling mount bracket) |
| Finish: |
AW‑UE150WP/AW‑UE150WE: Pearl white
AW‑UE150KP/AW‑UE150KE: Black |
| Controller Supported: |
AW-RP150GJ, AW-RP50*1, AK-HRP1000GJ*1, AK-HRP1005GJ*1 |
| <Camera Unit> |
| Imaging Sensors: |
1-type 4K MOS×1 |
| Lens: |
Motorized Optical 20x zoom, F2.8 to F4.5
[f=8.8 mm (11/32 inches) to 176.0 mm (6‑15/16 inches); 35 mm (1‑3/8 inches)
equivalent: 24.5 mm (31/32 inches) to 490.0 mm (19‑9/32 inches)] |
| Zoom: |
• Optical zoom: 20x
• i.Zoom: UHD 24x, FHD 32x
• Digital zoom: 10x |
| Conversion Lens: |
Not supported |
| Angle of View Range: |
Horizontal angle of view: 75.1° (wide) to 4.0° (tele)
Vertical angle of view: 46.7° (wide) to 2.3° (tele)
Diagonal angle of view: 82.8° (wide) to 4.6° (tele) |
| Optical Filter: |
Through, 1/4, 1/16, 1/64, IR through (IR through is used as “Night mode”) |
| Focus: |
Switching between auto and manual |
| Focus Distance: |
Entire zooming range: 1000 mm (3.3 ft)
Wide end: 100 mm (0.33 ft) |
| Color Separation Optical System: |
1MOS |
| Standard Sensitivity: |
F9, 2000 lx (When normal mode is selected) |
| Minimum Illumination: |
2 lx (F2.8, 59.94p, 50IRE, 42 dB, without accumulation) |
| S/N: |
60 dB or more |
| Horizontal Resolution: |
1600 TV lines Typ (Center area) |
| Gain Selection: |
Auto, 0 dB to 36 dB*2
Super Gain function equipped : +37 dB to 42 dB |
| Frame Mix*3: |
0 dB, 6 dB, 12 dB, 18 dB, 24 dB |
| Electronic Shutter Speed: |
59.94p/59.94i
1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
29.97p
1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
23.98p/24p
1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
50p/50i
1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
25p
1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| Synchro Scan: |
59.94p/59.94i
60.00 Hz to 7200 Hz |
29.97p
30.00 Hz to 7200 Hz |
23.98p/24p
24.00 Hz to 7200 Hz |
50p/50i
50.00 Hz to 7200 Hz |
25p
25.00 Hz to 7200 Hz |
| Gamma: |
HD / FILMLIKE1 / FILMLIKE2 / FILMLIKE3/ FILM REC / VIDEO REC / HLG |
| White Balance: |
ATW : 3200K, 5600K
ATW Speed : Normal / Slow / Fast
AWB : AWB-A / AWB-B
VAR (selectable between 2000K and 15000K by designating a value) |
| Chroma Amount Variability: |
OFF, –99 % to 99 % |
| Scene File: |
Scene1, Scene2, Scene3, Scene4 |
| Output Format: |
4K
2160/59.94p, 2160/50p, 2160/29.97p*4, 2160/25p*4, 2160/24p*4, 2160/23.98p*4 |
HD
1080/59.94p, 1080/50p, 1080/29.97p*4, 1080/29.97PsF, 1080/25p*4, 1080/25PsF, 1080/23.98p*5, 1080/24p*4, 1080/23.98p*4, 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p |
| <Synchronization System> |
| Internal / External synchronization (BBS / Tri-level sync) |
| <INPUT> |
| Input Connector: |
DC 12 V IN, G/L IN (BNC)
• BBS (Black Burst Sync), tri-level sync supported |
| <OUTPUT> |
| Video Output: |
HDMI
HDMI 2.0 standard
4:2:2/10bit
• HDCP is not supported.
• Viera Link is not supported. |
12G-SDI OUT
SMPTE 2082‑1 standard / 75 Ω (BNC x 1) |
3G-SDI OUT
SMPTE292 / 75 Ω (BNC x 1)
• Level-A/Level-B supported |
MONI OUT
SMPTE292 / 75 Ω (BNC x 1) |
Optical Fiber
SFP+ standard
Single Fiber
• The signal sent is the same as 12G-SDI OUT.
• This unit does not support input by optical signals. |
| <INPUT/OUTPUT> |
| Input / Output Connector: |
LAN
LAN connector for IP control (RJ‑45) |
|
RS-422
CONTROL IN RS-422A (RJ‑45) |
|
MIC/LINE input
ø 3.5 mm stereo mini jack
Input impedance: High impedance
• During MIC input
Supported mic: Stereo mic (plug-in power, on/off switching via menu)
Supply voltage: 2.5 V ± 0.5 V
Mic input sensitivity: Approx. –40 dBV ± 3 dBV
(0 dB=1 V/Pa, 1 kHz)
• During LINE input
Input level: Approx. –10 dBV ±3 dBV |
| <Pan-tilt Head Unit> |
| Camera/Pan-tilt Head Control: |
IP connecting cable
• LAN cable*6*7 : (category 5e or above, straight cable / crossover cable)
max. 100 m (328 ft) |
AW protocol connecting cable
LAN cable*6 (category 5e or above, straight cable)
max. 1000 m (3280 ft) |
| Installation Method: |
Stand-alone (Desktop) or suspended (Hanging)*8 |
| Pan/tilt Operation Speed: |
Minimum speed 0.08°/s
Maximum speed 60°/s or higher*9
• Maximum speed is 180°/s in high-speed mode |
| Panning Range: |
±175° |
| Tilting range: |
–30° to 210°*10 |
| Quietness: |
NC35 or less |
| <Supported operating systems and web browsers*11> |
Supported operating systems
and web browsers: |
Windows
Microsoft® Windows® 7, 10
Windows® Internet Explorer® 11 (64‑bit/32‑bit)
Microsoft Edge
Google Chrome |
Mac
Mac OS 10.13, Mac OS 10.12, Mac OS 10.11, Safari 11, Google Chrome
iPhone / iPad
iOS 11.4.1
Google Chrome |
| <IP Streaming> |
| Image Streaming Mode: |
JPEG (MJPEG), H.264, H.265 |
| Image Resolution: |
3840×2160, 1920×1080, 1280×720, 640×360, 320×180 |
| Image Transmission setting (JPEG): |
Frame Rate: Maximum 30 fps
Image quality (Fine / Normal) |
| Image Transmission Setting (H.264): |
■ Image quality (Motion priority / Image quality priority)
UHD 60 fps / 50 fps
■ Transmission Type:
Unicast port (AUTO)
Unicast port (MANUAL)
Multicast port
■ Transmission Priority
Constant bit rate
Frame rate
Best effort |
| Image Transmission Setting (H.264): |
■ Frame Rate
[60Hz] 5fps/15fps/30fps/60fps (UHD: 30fps, 60fps)
[50Hz] 5fps/12.5fps/25fps/50fps (UHD: 25fps, 50fps)
■ Max Bit Rate
HD : 512kbps/768kbps/1024kbps/1536kbps/2048kbps/
3072kbps/4096kbps/6144kbps/8192kbps/10240kbps/
12288kbps/14336kbps/16384kbps/20480kbps/24576kbps/
32768kbps/40960kbps/51200kbps/76800kbps
UHD : 12800kbps/25600kbps/51700kbps/76800kbps |
| Image Transmission Setting (H.265): |
■ Image Transmission Type:
Unicast port (AUTO)
Unicast port (MANUAL)
Multicast port
■ Frame Rate
[60Hz] 30fps
[50Hz] 25fps
■ Max Bit Rate
8192kbps/12800kbps/25600kbps/51200kbps/76800kbps |
| Audio Compression Type: |
AAC-LC, 48 kHz / 16 bit / 2ch |
| Supported Protocol: |
■ IPv6 : TCP / IP, UDP / IP, HTTP, HTTPS, DNS, NTP, DHCPv6, RTP, MLD, ICMP, ARP, RTMP
■ IPv4 : TCP / IP, UDP / IP, HTTP, HTTPS, RTSP, RTP / RTCP, DHCP, DNS, DDNS, NTP, UPnP, IGMP, ICMP, ARP, RTMP |
| <Other Function> |
| NDI support*12: |
NDI | HX |
| Tally LED display color: |
red / green |
|
