 Panasonic AG-HCK10G 1/4.1" 3.05 megapixel 3-MOS POVCAM Full HD Camera Head



Panasonic AG-HCK10G Full HD Camera Head
Product Code: AGHCK10G
Panasonic AGHMR10EU AGHCK10G
Product Code : AGHMR10PPACKAGE
Discontinued
Panasonic AG-C20003G
Product Code : AG-C20003G
Discontinued
review button
  Discontinued




The ultra-compact, mountable AG-HCK10 HD camera head (POVCAM) teams with the AG-HMR10 AVCCAM handheld recorder to offer a low-cost Full HD camera recording system for a wide range of applications. Connected to the HMR10 recorder with a detachable cable, the HCK10 captures 1920 x 1080 high definition video using three 1/4.1" 3.05 megapixel 3-MOS imagers for recording by the HMR10 recorder in the AVCHD format, which provides double the recording time and higher quality than older MPEG-2 compression used in HDV formats.

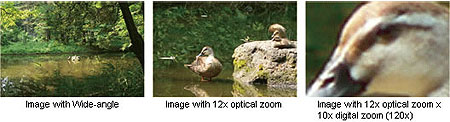

The camera head features a 12X optical zoom lens with 10X digital zoom, (up to 120X), optical image stabilizer (O.I.S.), a built-in 2-channel microphone and a range of advanced tuning functions, including matrix, knee point, adjustable detail and chroma, white balance and zebra settings. Iris, focus and zoom are remotely controlled by the HMR10 recorder. It is powered by the HMR10 recorder.

• Sleek, pocket-sized design (2.1" W x 2.2" H x 4.8" D)
• Allows POV-style image capture from a long distance
• Features 1/4" 20 socket for easy mounting.

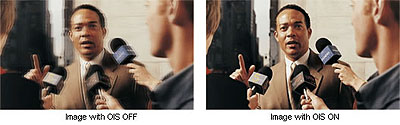

• Optical Image Stabilizer (OIS) function ensures shots remain clear while walking or zooming

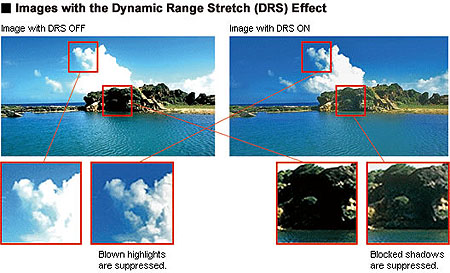

• Dynamic Range Stretch (DRS) feature suppresses blocked shadows and blown highlights
• Slow shutter and synchro scan functions
• Color control and skin tone detail functions
• Cine-like Gamma Curves (seven different gamma modes)

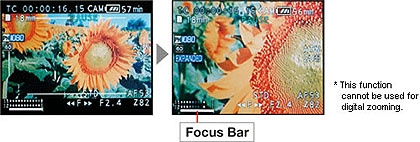

• HD focus assist functions and slow shutter and synchro scan
• It has endless point-of-view applications for use in nature observation, video production, newsgathering, law enforcement, surveillance, sports, healthcare, education and much more.
• 43mm lens filter size (lens options available)
• Weigh: approximately .61 pound
• Cables are detachable (from recorder and from camera head) for total flexibility
• The cable connecting the HCK10 to the HMR10 is required. Available optional cables include a 9-foot, 8-inch cable (model AG-C20003G), and the optional 65-foot cable (model AG-C20020G) for longer distances.



Allows Operation from a Distance Teams with AG-HMR10 Recorder
Zoom, focus, iris, shutter speed and white balance adjustments, as well as camera setup, can all be made from the AG-HMR10. Its built-in stereo microphone also lets you adjust the audio levels. The camera head option cable (optional) comes in 3 m (9.84 ft) (AG-C20003G) and 20 m (65.62 ft) (AG-C20020G) lengths to match your application.


Highly Detailed Image Capture A Progressive 3MOS Sensor with Approx. 2.51 Megapixels
The progressive 3MOS image sensors record full-HD images with a total, 3.05-megapixel (approx.) resolution [effective motion-image resolution of 2.51 megapixels (approx.)]. This produces full-raster HD images with high resolution and superb image quality. Because each of the three separate image sensors receives one of the three primary colors of light (red, green and blue), they render more precise images and more faithful colors than the single light-receiving 1MOS sensor.

Recording Unique News Angle
The AG-HCK10G AG-HCK10G makes it easy to shoot from high angles. And because the AG-HMR10 recorder comes standard with HD-SDI output, you don't need a converter for connecting to an HD digital broadcast recorder, an HD switcher, or a relay transponder.
Panasonic AG-HCK10G

Recording Plant and Animal Observations
The compact AG-HCK10G AG-HCK10G can be easily set up in the shadow of a tree for close-up observation of plants and animals in their natural habitat. The Time Stamp function lets you insert information such as the date and time directly onto the images as you record, for scientific use.
Panasonic AG-HCK10G

Shooting from Special Angles
The AG-HCK10G AG-HCK10G lets you shoot from angles that would be difficult with ordinary cameras, such as high places and narrow spaces. Because the recorder and camera are separate, even if some unexpected problem would occur with the camera, the recorded data remains safe.
Panasonic AG-HCK10G

Power Supply: DC8 V-9 V (Supplied from the AG-HMR10 Series)
Power Consumption: 3.5 W
Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Operating Humidity: 10 % to 80 % (No condensation)
Weight: Approx. 275 g (Approx. 0.61 lb.)
Dimensions (W x H x D): 53.5 x 56 x 123.8 mm (2.11 x 2.20 x 4.87 inches) excluding the projection part
Pick-up Device: 3MOS (1/4.1-inch progressive modes supported)
Picture Elements: Effective: Approx. 2.51 megapixels x 3 (16:9)
Lens: Lens with optical image stabilizer, 12x zoom, F1.8 to 2.8 (f=4.0 mm to 48 mm), 35 mm equivalent: 40.8 mm to 490 mm (16:9)
Filter Diameter: 43 mm
Optical Color Separation: Prism system
ND Filter: Auto On/Off by IRIS
Minimum shooting distance: 35.43 inches (0.9 m)
Gain Selection: 0 dB to +34 dB (Variable in 1-dB steps)
White balance: ATW, preset 3200 k, preset 5600 k, W.set
Shutter Speed - Preset: [59.94 Hz] 60i/60p mode: 1/60 sec. to 1/2000 sec.(7 steps)
30p mode: 1/30 sec. to 1/2000 sec. (8 steps)
24p mode: 1/24 sec. to 1/2000 sec. (8 steps)
[50 Hz] 50i/50p mode: 1/50 sec. to 1/2000 sec. (7 steps)
25p mode: 1/25 sec. to 1/2000 sec. (8 steps)
Shutter Speed - Synchro Scan: [59.94 Hz] 60i/60p mode: 1/60.0 sec. to 1/250.0 sec.
30p mode: 1/30.0 sec. to 1/250.0 sec.
24p mode: 1/24.0 sec. to 1/250.0 sec.
[50 Hz] 50i/50p mode: 1/50.0 sec. to 1/250.0 sec.
25p mode: 1/25.0 sec. to 1/250.0 sec.
Slow Shutter Speed: 59.94 Hz] 60i/60p mode: 1/2 sec., 1/4 sec., 1/8 sec., 1/15 sec., 1/30 sec.
30p mode: 1/2 sec., 1/4 sec., 1/8 sec., 1/15 sec.
24p mode: 1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec.
[50 Hz] 50i/50p mode: 1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec., 1/25 sec.
25p mode: 1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec.
Minimum Luminance: Approx. 1 lx (Gain: +34 dB, Slow Shutter: 1/2 sec.)
Digital Zoom: 2x/5x/10x (When set to 59.94 Hz: 1080/60i, 720/60p only; when set to 50 Hz: 1080/50i, 720/50p only)
Recording Video Format*5 - Recording with the AG-HMR10 Series: [59.94 Hz] PH mode: 1080/60i, 1080/30p (over 60i), 1080/24p (native)*6,
720/60p, 720/30p (over 60p) and 720/24p (native)*6
HA, HG and HE mode: 1080/60i only
[50 Hz] PH mode: 1080/50i, 1080/25p (over 50i),
720/50p and 720/25p (over 50p)
HA, HG and HE mode: 1080/50i only
AG-HMR10 Series Output: 20-pin dedicated terminal (connection with the AG-HMR10 Series)
Internal Microphone: Stereo microphone
Standard Accessories: Lens cap (mounted to the AG-HCK10G)
