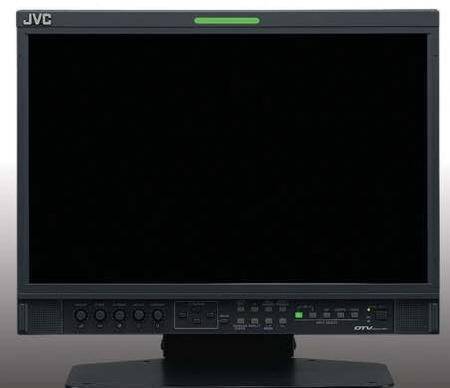

DT-V17L2D , JVC 17" HD multi-format AC/DC Rack Mountable LCD monitor(Discontinued)

DT-V17L2D

 Model: DT-V17L2D
JVC 17" HD multi-format AC/DC Rack Mountable LCD monitor


Click below to view
 - Input Format
 - Specification

DT-V17L2D

  • 1440x900 pixels

  • AC/DC operation

  • Gold-plated HD/SD SDI terminals with embedded audio

  • DVI-D with HDCP terminal

  • High-performance LCD panel

  • Exclusive JVC image processing technology

  • Status display in unused section of 16:10 panel

  • Wide selection of video production functions

  • Easy-to-operate front panel controls

  • Rugged, adjustable stand provided
FEATURES

High Quality Pictures

  • Exclusive JVC image processing technology

  • High-performance liquid crystal panels

  • Traditional front panel operation

  • Various video production functions

  • No sync action

  • Status Display

  • Built-in stereo speakers

Battery powered operation enhances mobility

  • Dual power source (DT-V9L1D can be powered by a standard AC connection or by 12V DC batteries (IDX, Anton Bauer or PAG) installed via bracket on the rear panel. This dual power system makes these two monitors extremely versatile, enabling HD image review in the field)


Rugged, Durable Design

  • Connector Portection Structure

  • Metal Rear Cabinets

  • Protective Screen (option)

  • Convenient Grip Handle

System Flexibility

  • 4-way Remote Controller (Remote control can be selected from make-contact, triggerpulse, RS-485 (excluding DT-V9L1D), and RS-232C methods.)

Easy Installation

  • Compact all-in-one design

  • VESA-compliant design

  • Rack-mounted design

  • Adjustable stand

INPUT FORMAT
Video Input Terminals Computer Input Terminals
Signal Name Video Component / RGB HS/SD SDI DVI-D with HDCP (video) Signal Name DVI-D (PC)
NTSC Yes - - -

VGA60

 Yes
PAL Yes - - -

W-VGA60

 Yes
SECAM Yes - - -

SVGA60

 Yes

BW(50Hz/60Hz)

 Yes - - -

XGA60

 Yes
480/60i - Yes Yes -

W-XGA60 (1280 x 768)

 Yes
576/50i - Yes Yes -

SXGA60 (1280 x 1024)

 Yes
480/60p - Yes - Yes

1920 x 1080@60

 Yes
576/50p - Yes - Yes

1280 x 720@60

 Yes

640 x 480@60

 - - - Yes

W-XGA+60 (1440 x 900)

 Yes

720/24p, 25p, 30p

 - Yes Yes -

U-XGA60(1600 x 1200)

 Yes

720/50p, 60p

 - Yes Yes Yes

W-UXGA60 (1920 x 1200)

 Yes

1080/50i, 60i

 - Yes Yes Yes

1080/50p, 60p

 - - - Yes

1035/60i

 - Yes Yes -

1080/24p, 25p, 30p

 - Yes Yes Yes

1080/24psf, 30psf

 - Yes Yes -


PRODUCTS
LCD Monitor
GM-552DU
PS-840W
PS-470W
PS-420W
DT-E15L4U
DT-E17L4GU
DT-E21L4U
DT-R24L41DU
DT-F9L5U
DT-V9L5U
DT-V17G15E
DT-V17G1Z
DT-V24G1Z
DT-X91Hx2
DT-X71Hx2
DT-X51Hx3
DT-X92F
DT-X92H
DT-X71CI
DT-X71HI
DT-X71FI
DT-X92HX2
DT-X16H
DT-X21H
DT-X24H
GD-W192
GD-W232
DT-3D24G1
Pro Monitors Accessories
Others
Sony CRT
Sony LCD
Panasonic
SPECIFICATIONS
Model DT-V24L1D DT-V20L1D DT-V17L2D DT-V9L1D
Type Multi-format HDTV/SDTV LCD Display Monitor
Screen Size Type 24 Wide Format Type 20 Wide Format Type 17 Wide Format Type 9 Wide Format
Aspect Ratio 16:10 15:9
LCD Panel 24" wide, active matrix TFT 20" wide, active matrix TFT 17" wide, active matrix TFT 9" wide, active matrix TFT
Effective Screen Size 51.84 x 32.4cm 43.34 x 27.09 cm 36.72 x 22.95 cm 19.5 x 11.7 cm
Pixels 1920 x 1200 (W-UXGA) 1680 x 1050 (W-SXGA+) 1440 x 900 (W-SXGA+) 800 x 480 (WVGA)
Display Colours 16.7 million approx. 16.2 million
Viewing Angle Horizontal 176° 170° 140° 170°
Vertical 176° 170° 120° 170°
Brightness 400 cd/m2 350 cd/m2

Contrast Ratio

 1000:1 800:1 600:1 400:1
Horizontal/Vertical Frequency (PC Signals) Horizontal 31.469 kHz to 75.000 kHz -
Vertical 60 Hz ± 5 Hz -
  Depending on the signal within the range of these frequencies, some signals may not be displayable, in which case, "Out of range" is shown.

Applicable Standard

HD SDI: BTA S-004B, SMPTE292M

SD SDI: ITU-R BT.656: 525/625, SMPTE259M: 525

EMBEDDED AUDIO: SMPTE299M, SMPTE272M

Audio Output

 Internal: 1.0 W + 1.0 W (L/R) 1 W (Mono)

Environmental Conditions

Operating temperature

 5°C to 35°C 0°C to 40°C

Operating humidity

 20% to 80% (non condensing)

Power Requirements

 AC 120/220-240 V, 50/60 Hz

AC 120/220-240 V, 50/60 Hz/DC 12 V

Rated Current

 0.67 A 0.60 A 0.36 A (AC 220-240 V),3.0 A (DC 12 V) 0.25 A (AC 220-240V),1.7 A (DC 12 V)

Dimensions (WxHxD) excluding protrusions)

With desktop stand

 564 x 448.6 x 243 mm 477 x 394.6 x 243 mm 395 x 344.6 x 243 mm 222.4 x 180.5 (Low) x 202 (Low) mm

Without stand

564 x 408 x 99 mm

 564 x 408 x 99 mm 395 x 304 x 86 mm 222.4 x 176 x 116 mm

Weight

Excluding stand

 8.7 kg 7.4 kg 5.3 kg 2.6 kg

Including stand

 11.6 kg 10.3 kg 8.2 kg 3.5 kg

Provided Accessories

 AC power cord, power cord holder, screw x 2 (for power cord holder)

Protective screen x1, screw x4

AC power cord, power cord holder, screw x 2 (for power cord holder)

(for protective screen), AC power

cord, power cord holder, screw

x 2 (for power cord holder)

Options

 Protective screen Protective screen/rack mount adapter Rack mount adapter



Input/Output Terminals



Video

VIDEO 1

 Composite video signal input/output: 1 line, BNC x 2, 1 V (p-p), 75 ohms *1
(IN and OUT are connected with a bridge connection) (auto termination)

VIDEO 2

 Composite video signal input/output: 1 line, BNC x 2, 1 V (p-p), 75 ohms *1
(IN and OUT are connected with a bridge connection) (auto termination)		 - -

DVI-D (HDCP)

 DVI-D signal input (compatible with HDCP): DVI-D connector x 1 (compatible with DDC2B)

COMPO./RGB*2
(G/Y, B/Pb/B-Y, R/Pr/R-Y)

 Analogue component signal/analogue RGB signal input/output: 1 line, BNC x 6
Video signal: G/Y: 1 V (p-p), 75 ohms (sync signal included), B/Pb/B-Y, R/Pr/R-Y: 0.7 V (p-p), 75 ohms
(IN and OUT are connected with a bridge connection) (auto termination)

EXT. SYNC (CS

 Composite sync signal input/output: 1 line, BNC x 2, 0.3 V (p-p) to 4 V (p-p), 75 ohms (bipolar tri-signal, negative pole binary signals, BB) (video signals excluded) (IN and OUT are connected with a bridge connection) (auto termination) - -

HD/SD SDI (IN 1)

 Digital signal input (compatible with EMBEDDED AUDIO): Auto detection, 1 line, BNC x 1

HD/SD SDI (IN 2)

 Digital signal input (compatible with EMBEDDED AUDIO): Auto detection, 1 line, BNC x 1 -

HD/SD SDI (OUT)

 Digital signal output (compatible with EMBEDDED AUDIO): 1 line (switched out), BNC x 1

Digital signal output (compatible with EMBEDDED AUDIO):1 line, BNC x 1

Audio

AUDIO ASSIGN (IN 1)

 Analogue audio signal input: 1 line, RCA x 2, 500 mV (rms), high impedance Analogue audio signal input: 1 line, RCA x 2, 500 mV (rms), high impedance Analogue audio signal input: 1 line, RCA x 1, 500 mV (rms), high impedance

AUDIO ASSIGN (IN 2)

 - -

AUDIO ASSIGN (MONITOR OUT)

 Analogue audio signal output: 1 line, RCA x 2, 500 mV (rms)

Analogue audio signal output: 1 line, RCA x 1, 500 mV (rms)

External Control

MAKE/TRIGGER

 RJ-45 x 1 (8-pin)

RS-485

 RJ-45 x 2 (IN/OUT) (8-pin) -

RS-232C

 D-sub (9-pin) x 1

*1: DT-V9L1D; Component (common use) *2: DT-V17L2D; Component only, DT-V9L1D; Component (IN only)
