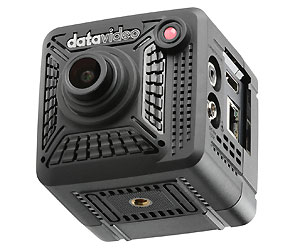

![Datavideo BC-15P](BC-15P.jpg)
Datavideo BC-15P 4K POV Camera
|
Video format/Resolution | 2160p 60/59.94/50/30/29.97/25 1080p 60/59.94/50/30/29.97/25 |
Image Sensor | 1/2.3" CMOS |
Effective Pixels (approx.) | 12.3Mega Pixels |
S/N Ratio | 50dB |
Min. Illumination | 0.5Lux (F1.0, AGC ON) |
Electronic Shutter | 1/25(1/30), 1/50(1/60), 1/75(1/90), 1/100(1/120), 1/125(1/150), 1/150(1/180), 1/200(1/210), 1/500(1/600), 1/1000(1/1200), 1/2000(1/2400), 1/4000(1/4800), 1/8000(1/9000) sec |
Zoom Ratio | 2x Digital Zoom |
Gamma Control | Standard / Mode1 / Mode2 / Mode3 |
Iris Control | Fixed IRIS (F1.0) |
Digital Noise Reductions | 2D/3D |
On-Screen Display (OSD) | English/Simplified Chinese/Traditional Chinese |
White Balance | Auto, Indoor, Outdoor, OnePush, Color Temp., R/B Gain, Lock |
AGC / Gain Control | Auto(AGC) / Manual / Lock (Follow Exposure Mode) |
Mirror / Flip Image | Yes |
Focus Mode | Full Manual |
Panning / Tilting Range | --- |
Panning / Tilting Speed | --- |
Preset | --- |
Focal Length | Standard Lens: 6mm Wide Lens: 2.8mm |
Field of View (Horizontal, Wide) | Standard Lens: H: 38.6, V:21.9, D:
44.1 Wide Lens: H: 75.5, V:46.6, D:82.7 |
Image Compensation | Auto |
Video Output | HDMI 2.0 x1 |
Audio Input | 3.5mm Line in/Mic in (Stereo) |
Tally LED | Dual color (Red, Green) |
Lens Filter | IR cut built-in |
Control Protocol | DVIP |
Remote Control Interface | RJ-45: for IP control (DVIP) |
Video Compression Format | H.265, H.264 |
Audio Compression Format | AAC |
Audio Bitrate | 128Kbps |
Streaming Protocols | RTMP(S), SRT |
First Stream Supported Resolution | 1920x1080 1280x720 1024x576 960x540 640x480 640x360 |
Second Stream Supported Resolution | -- |
Video Bitrate | 1Mbps ~ 7Mbps |
Video Bitrate Mode | VBR, CBR |
Encoding Frame rate | 50Hz: 1-50fps 60Hz: 1-60fps |
POE | IEEE 802.3af |
F/W Update | Ethernet |
IR Control | --- |
Camera Control Unit | RMC-300 series/BC View Assist APP |
Tripod Mount | 1/4-20 UNC |
Color | Black |
Dimension (LxWxH) | 77mm (W) x 82mm (D) x 78mm (H) |
Weight | 200 g |
Operating Temp. Range | 0~40 °C |
Power | DC 12V 9W |
• 1 x BC-15P Main Unit
• 1 x Standard Lens
(attached on camera with lens cap)
• 1 x Wide-angle Lens (attached with
lens caps)
• 1 x DC 12V power adaptor
