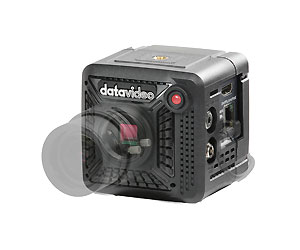

Datavideo BC-15C 4K CS Mount POV Camera

Datavideo BC-15C 4K CS Mount POV Camera

Designed to be Compact

The small box design makes it flexible for mounting anywhere. Though it is compact, it doesn't compromise on quality. The 1/2.3” 4K CMOS sensor captures high-quality images and incredible details of the subject.

Interchangeable CS Mount Lenses

User can install a CS Mount camera lens to the BC-15C/BC-15CN, or use a C Mount camera lens with the bundled 5mm CS-C camera lens adapter ring. User can have a wide range of visual expression by using different lenses for the BC-15C/ BC-15CN.

* The lens is NOT included with the BC-15C/BC-15CN package.

1/2.3” CMOS Sensor with 4K 50/60p Output

The BC-15 series is one of the best cameras for capturing eSports applications with the included eSports lens. When changing back to the standard lens, it will fulfill a wide range of other applications.

Elevate Your Content with Seamless 4K Streaming

During video production, you can stream your program to different platforms such as YouTube and Facebook. If using Datavideo dvCloud, you can even stream your program to 25 different platforms at the same time while backing up your program on the cloud server.

Built-in Tally Light

Built-in tally lights make it easier for the talent to know which camera is live during a multi-camera live production.

Physical Buttons Make Camera Setup Very Easy

When the camera is set up, there is no need to use an additional remote controller. The physical buttons on the rear panel of the BC-15C make it very easy to adjust settings.

Power over Ethernet

The BC-15C supports PoE for easy installation. No need to find local power outlets or hire an electrician to install outlets wherever you want to mount your camera. Simply run a single CAT 6 cable to power your BC-15C.

Built-in DC-IRIS Function

Most off-the-shelf C/CS lenses are manual aperture lenses but some adopt DC-IRIS technique which is thus also included in the BC-15C, making lens selection hassle-free.

1/4” Screw Hole for Mounting

Changing the camera angle is easy with the three 1/4” screw holes on the BC-15C. It gives you the flexibility of mounting it anywhere.

Other Web:

Datavideo BC-15C 4K CS Mount POV Camera

Video format/Resolution	2160p 60/59.94/50/30/29.97/25 1080p 60/59.94/50/30/29.97/25
Image Sensor	1/2.3" CMOS
Effective Pixels (approx.)	12.3Mega Pixels
S/N Ratio	50dB
Min. Illumination	0.5Lux (F1.0, AGC ON) * depend on Lens
Electronic Shutter	1/25(1/30), 1/50(1/60), 1/75(1/90), 1/100(1/120), 1/125(1/150), 1/150(1/180), 1/200(1/210), 1/500(1/600), 1/1000(1/1200), 1/2000(1/2400), 1/4000(1/4800), 1/8000(1/9000) sec
Zoom Ratio	2x Digital Zoom Optical Zoom depend on lens
Gamma Control	Standard / Mode1 / Mode2 / Mode3
Iris Control	DC IRIS supported * depend on Lens
Digital Noise Reductions	2D/3D
On-Screen Display (OSD)	English/Simplified Chinese/Traditional Chinese
White Balance	Auto, Indoor, Outdoor, OnePush, Color Temp., R/B Gain, Lock
AGC / Gain Control	Auto(AGC) / Manual / Lock (Follow Exposure Mode)
Mirror / Flip Image	Yes
Focus Mode	Full Manual
Panning / Tilting Range	--
Panning / Tilting Speed	--
Preset	--
Focal Length	* depend on Lens
Field of View (Horizontal, Wide)	* depend on Lens
Image Compensation	Auto
Video Output	HDMI 2.0 x1
Audio Input	3.5mm Line in/Mic in (Stereo)
Tally LED	Dual color (Red, Green)
Lens Filter	IR cut built-in
Control Protocol	DVIP
Remote Control Interface	RJ-45: for IP control (DVIP)
Video Compression Format	H.265, H.264
Audio Compression Format	AAC
Audio Bitrate	128Kbps
HD IP Interface	10/100/1000M
Streaming Protocols	RTMP(S), SRT
First Stream Supported Resolution	1920x1080 1280x720 1024x576 960x540 640x480 640x360
Second Stream Supported Resolution	--
Video Bitrate	1Mbps ~ 7Mbps
Video Bitrate Mode	VBR, CBR
Encoding Frame rate	50Hz: 1-50fps 60Hz: 1-60fps
POE	IEEE 802.3af
F/W Update	Ethernet
IR Control	---
Camera Control Unit	RMC-300 series/BC View Assist APP
Tripod Mount	1/4-20 UNC
Color	Black
Dimension (LxWxH)	77mm (W) x 82mm (D) x 78mm (H)
Weight	204 g
Operating Temp. Range	0~40 °C
Power	DC 12V 9W

• 1 x BC-15C Main Unit
• 1 x CS-C Lens adaptor ring
• 1 x DC 12V power adaptor
