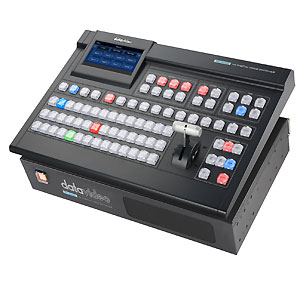

Datavideo SE-4000 4K 8-Channel Live Production Switcher

Datavideo SE-4000 Complete and Compact 8-inputs 4K production switcher

Professional Broadcasting 4K production Video switcher

Datavideo SE-4000 is a comprehensive 4K video switcher tailored for the omnimedia generation. The SE-4000 is equipped with broadcast quality UHD 4K50/60 12GSDI and HDMI 2.0 video input ports, allowing you to operate the device using the traditional physical control panel and a state-of-the-art 5 inch color LCD touch screen.

The SE-4000's one-button-one-function feature simplifies your video production flow. With the auxiliary outputs, cross point, four chroma keyers, PIP, DSK effects, you will be able to easily generate various professional effects for all scenarios and applications.

Designed for Easy Installation

SE-4000’s base unit can be easily mounted into a standard 19″ rack. The power button on the front panel makes it easy to turn on and off the switcher.

5″ Touchscreen Display

The SE-4000 is Datavideo 4K switcher with 4K support on every input. Additionally, it has a 5″ LCD touch panel to adjust all the setting without any laptop or app needed.

The OSD menu is behind the one-button-one-function design.

In order to set up the one-button-one-function feature, we’ve included a color HD 5 inch touch screen. Well-designed icons help you identify settings therein.

All menu functions can be found here. You can group multiple functions into one button so you will be able to execute these functions with one tap.

The touch panel screen and the physical control panel form the most convenient and efficient user interface.

True 12G 4K 50/60 video production switcher

Support UHD 4K60/50p signals on inputs and outputs. It also has built-in input scaler, for up conversion on each available input.

Plug-and-Play

There is no need to install the driver to connect with the laptop. The images and videos can be directly input to the switcher through the HDMI interface of the laptop.

Integrated 5″ Touchscreen Display: One touch one function

With the 5″ touchscreen panel built-in, you will not need a laptop or app to assist with your live production.

With many built-in functions, including user memory with customized icon, transition animation set up, chroma key, luma key, DSK, PIP, wipe generator, still stores, and logo insertion; these can all be done on the 5″ LCD touchscreen.

Flexible video input selections

The Datavideo SE-4000 has 12 video inputs, with 8 of the inputs being selectable for flexibility, as well as variety of video and audio inputs and outputs, 7 outputs with AUX assignment.

Professional Switcher for Studio and Outdoor Broadcast Van

The SE-4000 is a versatile solution with the main unit mountable in the 19 inch rack. The control keyboard panel can be placed on a flat surface or built inside an outdoor broadcast van.

Other Web:

Datavideo SE-4000 Live Production Switcher

Video Standard	4K & HD
Video Format	Input: 3840x2160p: 60/59.94/50/30/29.97/25 1080p: 60/59.94/50/30/29.97/25 1080i: 60/59.94/50 Output: 3840x2160p: 60/59.94/50/30/29.97/25 1080p: 60/59.94/50/30/29.97/25 1080i: 60/59.94/50
Input Routable / Crosspoint	YES
Video Input	Total 8 live inputs (select 8 from 12) 8 x 12G-SDI 4 x HDMI
Computer Graphic Interface	4 via HDMI
Down-converted Output	Yes
Video Output	4 x 12G-SDI 3 x HDMI All assignable: Multiview, PGM, PVW, PGM+DSK, Clean PGM, Clean PVW, Input 1-12
Built-in Multi-view Monitoring Out	HDMI & SDI assignable
Analog Audio Input	4 x Analogue XLR
Analog Audio Output	2 x Analogue XLR
Digital Embedded Audio Support	Input 4 channels, Output 4 channels
Audio Delay Calibration	Up to 16 fields or 8 frames per channel
A+V Switching	Yes
Chromakey	4
Title Creator	Yes (Coming soon by firmware update)
USK	4x Keyer support Chromakey/ Linear/ Luma Key
DSK	2x DSK support Lumakey & Linear key (Key / Fill)
Picture in Picture	2
Logo Insertion	2
Still Store	250
Effects	FTB, Cut, 32 Wipe with border
Transition Preview	Full transitions preview
Sync / Reference In/Out	1 x BNC Ref in 1 x BNC Ref out (loop-through) (available after firmware upgrade in the future)
Tally Output	1x D-sub 25pin, dual color
PC Remote Control	DVIP (Ethernet)
Firmware Update	USB / Ethernet
Chassis	2 units, 2RU rack-mount mainframe
Dimension (LxWxH)	433 x 312 x 79 mm (switcher) 432 x 250 x 88 mm (main unit)
Weight	7.1 kg
Power	Main Unit: DC 12V, 126W Control Unit: DC 12V 17.3W
Operating Temp. Range	0~40 °C

• 1 x SE-4000 Main Unit
• 1 x SE-4000 Control Board
• 2 x AD Switch DC 12V
• 1 x AC Cord
• 1 x Ethernet Cable
• 12 x Screw
• 2 x 2U Ear Rack
