Canon XF400 Professional Camcorder from our singapore store

Home > Canon > Professional Video Camcorder > XF-400

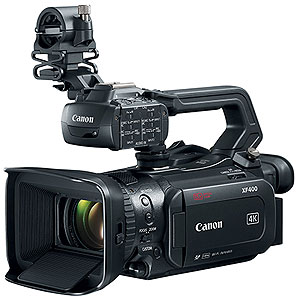

Canon XF400 Professional Camcorder

Product Code: XF400

Features

1.0-inch 4K UHD CMOS Image Sensor
High Sensitivity / Low noise
Wide DR Gamma (800%) Support
15x Optical 4K UHD Zoom Lens with 5-axis Optical Image Stabilization
Dual DIGIC DV 6 Image Processors
Dual Pixel CMOS AF
4K UHD and Full HD Recording to Dual SD Card Slots
Slow and Fast Motion Recording upto 120fps
3.5-inch Touch Panel LCD and 0.24-inch EVF
HDMI 2.0 Termainal with 4K UHD 60p Output Support
Flexible Audio Inputs with Linear PCM 4-channel Support
RC-V100 Remote Controller Support
Compact and Lightweight Design with detachable handle
Network Connections for FTP Transfer and Browser Remote (Wired and Wi-Fi Connectivity)
Firmware Update: XF-AVC 4K UHD 60p Long GOP Recording

XF400 : Overview
Features
Specifications
In the Box

The XF400 Professional Camcorder offers an outstanding combination of 4K UHD image quality, features and functionality in a compact portable design ideally suited for government, broadcast, education, corporate and event videography for cost-effective 4K UHD quality video.

Featuring a 1.0-inch 4K UHD CMOS image sensor and dual DIGIC DV 6 Image Processors, the XF400 records in MP4 format to dual SD card slots. The camcorder is capable of recording 4K UHD video at 60p, as well as slow motion recording up to 120fps in Full HD. A 15x optical zoom lens maintains 4K UHD quality throughout the entire zoom range, while the camcorder's Dual Pixel CMOS AF helps facilitate fast and accurate autofocus.

The camcorder includes an HDMI 2.0 terminal with 4K UHD output support, two XLR terminals with independent audio level control. An adjustable 3.5-inch touch panel LCD monitor and a built-in 0.24-inch electronic viewfinder enhance usability, and the detachable handle helps the XF400 to operate in a variety of shooting situations. Designed to meet the needs of professionals, the XF400 offers a wide range of recording possibilities.

4K UHD/50P recording on SD cards with high frame rates
The XF400 supports UHD/50P MP4 format (150Mbps) recording along with additional XF-AVC support (planned via a firmware update in 2018).

High quality 4K lens with 15x zoom
A powerful 4K lens captures maximum detail from your subjects and offers outstanding flexibility with a 25.5mm-wide angle-of-view along with a 15x zoom, increasing to 30x Advanced Zoom in FHD.

Dual Pixel CMOS AF for high-speed, precise autofocus
Dual Pixel CMOS AF offers improved performance and control with minimal effort thanks to an expanded focusing area covers approx. 80% (vertically) x 80% (horizontally) of the image on the screen.

Network capability with FTP transfer and remote control
The XF400 boasts Wi-Fi and Ethernet LAN connectivity, allowing fast and convenient transfer of files direct from the camcorder to external workflow environments. Control of the camera is also possible via a smartphone or tablet with Browser remote or the Canon RC-V100 wired controller.

Compact and lightweight body, professional operability
The XF400 is one of the smallest and lightest camcorders in its class and designed to be agile, robust and responsive with professional levels of control and connectivity. Dual SD card slots for MP4 recording enable extended shooting times, while an SDI terminal on the XF405 allows live footage to be output to other professional devices.

Standard Definition or High Definition	4K Ultra High Definition
Power Supply (rated)	7.4V DC (Battery Pack), 8.4V DC (DC IN)
Video Recording system	Recording Modes: Compression: MPEG-4 AVC/H.264 Color Sampling: 4:2:2 or 4:2:0 File Format: MP4 150 Mbps: 3840x2160 (60p/30p/24p) 35 Mbps: 1920x1080 (60p/30p/24p) 17 Mbps: 1920x1080 (60p/30p/24p) 8 Mbps: 1280x720 (60p) 4 Mbps: 1280x720 (30p)
Audio Recording system	MPEG-4 AAC-LC (16-bit 2ch) / LPCM (16-bit 4ch), 48 kHz
Image Sensor	1.0-inch CMOS
Total Pixels	Approx. 13.4 megapixels (4268 x 3148)
Effective Pixels	Approx. 8.29 megapixels (3840 x 2160)
Maximum Recording Time	8GB card 150 Mbps: 5 min. 35 Mbps: 25 min. 17 Mbps: 55 min. 8 Mbps: 120 min. 4 Mbps: 245 min. 16GB card 150 Mbps: 10 min. 35 Mbps: 55 min. 17 Mbps: 120 min. 8 Mbps: 255 min. 4 Mbps: 515 min. 32GB card 150 Mbps: 25 min. 35 Mbps: 115 min. 17 Mbps: 245 min. 8 Mbps: 520 min. 4 Mbps: 1045 min. 64GB card 150 Mbps: 55 min. 35 Mbps: 240 min. 17 Mbps: 495 min. 8 Mbps: 1055 min. 4 Mbps: 2115 min. 128GB card 150 Mbps: 110 min. 35 Mbps: 485 min. 17 Mbps: 995 min. 8 Mbps: 2120 min. 4 Mbps: 4245 min. Recording will automatically stop when it has continued for 12 hours. A variable bit rate is applicable in each case.
Lens	Canon 15x Zoom, 8.3-124.5mm (35mm equivalent 25.5-382.5mm), f/2.8-4.5
Focusing System	Dual Pixel CMOS AF, Contrast AF The detection range for CMOS AF is approx. 80% (vertical) x 80% (horizontal) of the entire field of view.
Manual Exposure	Yes
Max Shutter Speed	1/2000
Minimum Focusing Distance	10mm at wide end, 60cm across entire zooming range
White Balance	Auto, Preset (Daylight, Tungsten), Color Temperature Settings (2,000-15,000K), Set (1/2)
Frame Rate	60p, 30p, 24p
Minimum Illumination	P Mode: Approx. 1.7 lux (shutter speed: 1/30 sec., 60p with auto slow shutter on) Low Light Mode: Approx. 0.1 lux (shutter speed: 1/2 sec.)
Genlock Terminal	No
3G-SDI Terminal	No
Timecode Terminals	No
Image Stabilization	Optical system (lens shift) + electronic stabilization (Image rotation and camcorder movements in the yaw and pitch directions are electronically corrected.) Modes: Dynamic IS, Powered IS, Standard IS, IS Off
Filter Diameter	58mm
Viewfinder	0.24-inch TFT wide color LCD, approx. 1.56 million dots, approx. 100% field of view
LCD Screen	3.5-inch wide LCD and wide view angle, wide color range supported and AR surface treatment (Approx. 1.56 million dots)
Microphone	Stereo (using electret condenser microphone)
Recording Media	SD/SDHC/SDXC Card (2 slots): MP4 movies/photos. Menu settings can also be recorded.
USB Terminal	mini-B receptacle and Hi-Speed USB supported (output only)
Video Terminal	3.5mm stereo mini-jack, HDMI™ mini connector,
Audio Terminal	3.5mm stereo mini-jack, XLR 3-pin jack (two channels, provided on the handle unit), HDMI™ mini connector, headphone jack
HDMI Terminal	HDMI™ mini connector
AV Mini Terminal/Headphone Terminal	3.5mm stereo mini-jack
Ethernet Terminal	Ethernet connector (RJ-45) (supports 1000BASE-T)
Operating Temperature range	For Performance: Approx. 0-40° C, 85% (relative humidity) For Operation: Approx. -5-45° C, 60% (relative humidity)
Dimensions	Approx. 5.3 x 3.8 x 8.4 in. / 135 x 97 x 214mm (excluding lens hood, mic holder unit, handle unit and battery pack) Approx. 5.9 x 3.8 x 10.5 in. / 150 x 97 x 267mm (including lens hood and Battery Pack BP-828; excluding mic holder unit and handle unit) Approx. 5.9 x 8.5 x 10.5 in. / 150 x 216 x 267mm (including lens hood, Battery Pack BP-828, mic holder unit and handle unit) All dimensions exclude the grip belt.
Weight	Approx. 2.5 lbs. / 1145g (body only) Approx. 3.7 lbs. / 1665g (includes lens hood, mic holder unit, handle unit, Battery Pack BP-828 and 1 memory card) Grip belt included for all values.

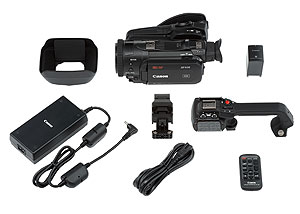

- XF400
- Lens Hood (with Lens Barrier)
- Microphone Holder Unit
- Handle Unit
- Battery Pack BP-828
- Power Adapter CA-946
- Wireless Controller WL-D89 Canon XF 400 Professional Camcorder
