Yolobox Pro is the upgraded version of its previous
Yolobox
.YoloBox Pro is a video switcher,
encoder/streamer, monitor, recorder and audio mixer all in one. With
built-in re-streaming service, native support integrates directly with
YouTube/Facebook/Twitch, adding graphic overlays and featuring comments to
the stream, Side-By-Side, Split-View and much more.
YoloBox Pro
brings the professional features and processing power required for the most
demanding live broadcasts.

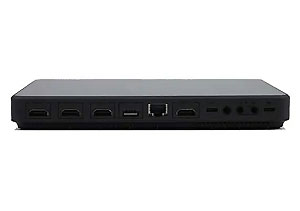

The YoloBox Pro is 8-inch large and 750g
weight, featuring 3 HDMI inputs, 1 HDMI output, 1 full-featured USBC,
allowing you to switch up to 8 sources, of which up to four physical local
cameras. The other two pre-recorded videos, either stored on an internal
memory chip or from a web source. The Pro supports input resolutions of 720p
and 1080i/p, as well as streams of 540p, 720p, and 1080p60 at your choice,
using the H.264 codec. With HDMI output, you can display your stream locally
on an HDMI device.
The
YoloBox Pro provides you with a large LCD
touchscreen interface for easy streaming and control, demonstrating the
streaming image as well as the input streams; the LCD display also presents
the control interface, which allows you to switch sources of information
with a simple touch. It also has a line-level audio input, and a separate
headphone audio out. You can record your stream directly in the .mp4 format
to an optional SD card, up to 128 GB in size, using the built-in SD card
slot. The line-in allows you to connect with the synthesizer and mic-in can
be connected to the microphone for recording.
*USB Webcam Out coming soon
in a future firmware update
Touchscreen Control
The YoloBox Pro provides you with a large touchscreen interface for easy
streaming and control.
Functions
The device works
as a switcher, with a variety of picture-in-picture templates as well as
graphic layers. It has a built-in encoder that allows for live streaming,
and it can record to optional SD cards.
Overlays
You can brand your live stream by adding logos/watermarks/rolling captions
Customized PiP options, including Interview mode, allow you to bring a
unique look and feel to your stream
Engage with your audience in real
time via feature comment overlays
The customizable scoreboard feature
displays a real-time-controlled scoreboard for professional looking results
Built-in lower-thirds templates can be edited or you can add your own
Simultaneous Streaming
YoloBox Pro will first push your feed to the
YoloLIV platform, from where it automatically forwards your feed to a
maximum of 3 destinations simultaneously.
Streaming Platforms
Major streaming platforms such as Facebook live, YouTube, and Twitch are
directly integrated, you can simply login your social account and stream.
Internet
You can connect to the internet using the
integrated RJ45 (Ethernet) port, Wi-Fi, and via cell service using an
optional SIM card.
SD Card Input
Roll in
pre-recorded videos for intro, countdown, B-rolls, or special segments from
an SD media card.
PDF
You can load a PDF as a
local source to your YoloBox Pro
Battery Life
The
internal battery can power your YoloBox Pro for approximately 3 hours. The
YoloBox Pro charges via the USB connection, which is used for power only.
Other Site:
Introduction
to Yolobox
Comparison - OBS vs Yolobox, Yolobox Pro
Yololiv Yolobox
Yolobox Pro
Blog
Comparison between Yolobox Pro and ATEM Mini Pro
Enhanced Yolobox Pro and Instream streaming capability with Ultimate
Stability
Comparing OBS Software with Yolobox Pro
Read our Yolobox Blog
- 3 x HDMI, 1 x USB In, 1 x SD card, 1 x PDF; 1 xIHDMI out; 1 x SIM card;
Mic-in & Line-In;
- Live switch up to 8 sources
- Direct integration
with YouTube/Facebook/RTMP(s)
- Built-in simultaneously streaming
-
Stream via Ethernet, Wi-Fi, LTE 4G
- Import pictures/videos from SD card
- Add logos/watermarks/rolling captions to the stream
- Feature comment
overlays to the Stream
- Add and edit customizable scoreboard, built-in
lower-thirds
- Load PDF as an extra source locally
- Records
internally to SD card
- Battery life up to 3 hours
