Sachtler Spreaders |
 |
|
|
| Order Code: |
7001 |
| Recommended for: |
Tripods Speed Lock® 75 CF, ENG 75/2 D and DA 75 L |
| Build up radius: |
33 - 58 cm / 13 - 22.8 in |
| Weight: |
0.6 kg / 1.3 lbs |
| Payload: |
40 kg / 88 lbs |
|
| Order Code: |
7002 |
| Recommended for: |
Tripods 100 mm |
| Build up radius: |
33 - 58 cm / 13 - 22.8 in |
| Weight: |
0.8 kg / 1.8 lbs |
| Payload: |
50 kg / 110 lbs |
| Height: |
40 mm / 1.6 in |
|
| Order Code: |
7002K |
| Recommended for: |
Tripod DA 100 K |
| Build up radius: |
15.5 - 23 mm / 6.1 - 9.1 in |
| Weight: |
0.55 kg / 1.2 lbs |
| Payload: |
40 kg / 88 lbs |
| Height: |
40 mm / 1.6 in |
|
| Spreader SP 75 |
Spreader SP 100 |
Mini Spreader |
|
|
|
| Order Code: |
7003 |
| Recommended for: |
Tripods 100/150 mm (except DA 100/150 K) |
| Build up radius: |
35 - 58 cm / 13.8 - 22.8 in |
| Weight: |
1.64 kg / 3.6 lbs |
| Payload: |
95 kg / 209 lbs |
| Height: |
40 mm / 1.8 in |
|
| Order Code: |
7003K |
| Recommended for: |
Tripod DA 150 K |
| Build up radius: |
22.5 - 33.5 cm / 8.9 - 13.2 in |
| Weight: |
1.3 kg / 2.9 lbs |
| Payload: |
40 kg / 88 lbs |
| Height: |
45 mm / 1.8 in |
|
| Order Code: |
7013 |
| Recommended for: |
Tripod OB 2000 |
| Build up radius: |
35 - 58 mm / 13.8 - 22.8 in |
| Weight: |
1.75 kg / 3.9 lbs |
| Payload: |
140 kg / 309 lbs |
| Height: |
45 mm / 1.8 in |
|
| Spreader SP 100/150 |
Mini Spreader 150 |
Spreader SP 150 EX |
|
|
Discontinued |
| Order Code: |
7013K |
| Recommended for: |
Tripod Cine 2000 K |
| Build up radius: |
22.5 - 33.5 kg / 8.9 - 13.2 in |
| Weight: |
1.4 kg / 3.1 lbs |
| Payload: |
50 kg / 110 lbs |
| Height: |
45 mm / 1.8 in |
|
| Order Code: |
7023 |
| Recommended for: |
Tripods Cine L and Cine M |
| Build up radius: |
22.5 - 33.5 cm / 8.9 - 13.2 in |
| Weight: |
1.4 kg / 3.1 lbs |
| Payload: |
50 kg / 110 lbs |
| Height: |
45 mm / 1.8 in |
|
| Order Code: |
7012 |
| Recommended for: |
Tripod Ace |
| Build up radius: |
- |
| Weight: |
- |
| Payload: |
20kg |
| Height: |
- |
|
| Mini Spreader EX |
Spreader Cine |
Set Mid-Level Spreader Ace |
Discontinued |
|
|
| Order Code: |
7011 |
| Recommended for: |
Tripods Speed Lock® 75 CF, ENG 75/2 D and DA 75 L |
| Build up radius: |
15 - 25 cm / 5.9 - 9.8 in |
| Weight: |
0,3 kg / 0.7 lbs |
| Payload: |
20 kg |
|
| Order Code: |
7007 |
| Recommended for: |
Tripods with 100 and 150 mm ball (except DA 100/150 K and Cine) |
| Build up radius: |
28 - 46 cm / 11 - 18.1 in |
| Weight: |
0.75 kg / 1.7 lbs |
| Payload: |
- |
|
| Order Code: |
7027 |
| Recommended for: |
Tripods Cine L |
| Build up radius: |
28 - 46 cm / 11.0 - 18.1 in |
| Weight: |
1.4 kg / 3.1 lbs |
| Payload: |
50 kg / 110 lbs |
| Height: |
45 mm / 1.8 in |
|
| Set Mid-Level Spreader 75 |
Mid-Level Spreader 100/150 |
Mid-Level Spreader Cine |
|
|
|
| Order Code: |
7004 |
| Recommended for: |
Tripods with mid-level spreader 100/150 and SOOM TriPod |
| Build up radius: |
Ø 7.2 cm / 2.8 in |
| Weight: |
0.58 kg / 1 lb |
| Payload: |
95 kg / 209 lbs |
| Height: |
40 mm / 1.6 in |
|
| Order Code: |
7014 |
| Recommended for: |
Tripods Cine L |
| Build up radius: |
Ø 7.2 cm / 2.8 in |
| Weight: |
0.5 kg / 1.1 lbs |
| Payload: |
95 kg / 209 lbs |
| Height |
40 mm / 1.6 in |
|
| Order Code: |
S2038-1000 |
| Recommended for: |
ENG 75/2 D HD |
| Build up radius: |
- |
| Weight: |
- |
| Payload: |
20 kg (44 lbs) payload |
| Height |
- |
|
| Rubber Feet 100/150 |
Rubber Feet EX |
Mid-level spreader 75 HD |
Discontinued |
|
|
| Order Code: |
7008 |
| Recommended for: |
tripod ENG 75/2 HD |
| Build up radius: |
22 - 36 cm |
| Weight: |
0,64 kg |
| Payload: |
- |
| Height: |
- |
|
|
|

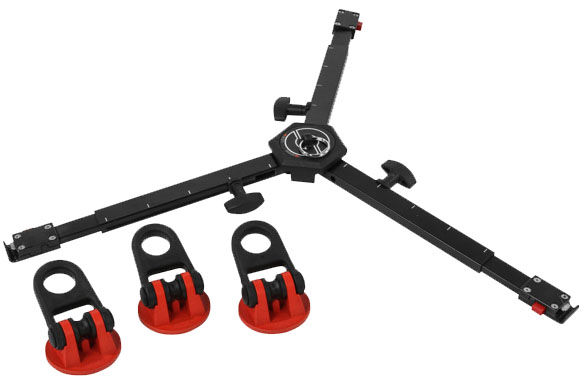

| Set mid-level spreader 75 HD |
|
|
