Enter the World of P.T.Z.

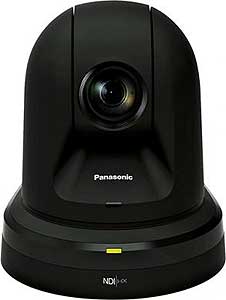

The AW-HN38 camera is
designed to produce great results in
a variety of applications that
require high-quality video and
precise control—such as conference
video, event capture, staging,
distance learning and
houses-of-worship. Thanks to their
precision 22X optical zoom lenses,
wide field of view, smooth PTZ
functions and exceptional image
quality, HN38 cameras are ideal for
demanding remote production and IMAG
use. With IP-Preview transmission
and control, and support for PoE+
(which allows power to be supplied
via a LAN cable), the HN38 also
offers the flexibility needed for
easy installation and management.
It's All in the Optics
In addition to a 22x optical zoom,
the AW-HN38 also features
intelligent zoom up to 30x and a
1.4x digital extender to capture
crisp close-ups even in large
auditoriums and lecture halls. The
HN38 delivers an impressive
signal-to-noise ratio of 54dB
(F4/2000lx, minimum illumination,
.35 lx), 1000 TV lines of resolution
and 16-axis color matrix control for
precise camera “painting” and
matching. The HN38 already includes
many innovative standard features
developed to expand the capabilities
of professional video system users.
In addition to Panasonic's Dynamic
Range Stretch (DRS) and advanced
Digital Noise Reduction (DNR), an
ingenious High Dynamic Range (HDR)
mode helps to produce very good
video even in extreme contrast and
lighting conditions.
See in the Dark
For
shooting in virtually total
darkness, the HN38's Night Mode
makes it possible to automatically
switch to the capture of
high-quality, HD monochrome video
with the use of an (optional) IR
illuminator in the 850nm range,
making the camera ideal for reality
show production, sleep lab research
and staging support.
Versatile, Smooth & Lightweight
The pan range of ±175° and the tilt
range of -30° to +90° cover a wide
shooting area. Pan and tilt operate
at a maximum speed of 90°/second and
respond quickly to remote control
operation. They operate quietly at a
sound level of NC35 or lower. Up to
100 preset positions and camera
settings are stored in the camera,
more than enough for the most
demanding large venue installation.
The camera weighs only 3.3 lbs. and
consumes just over 14.4 watts at 12
VDC.
Connected –
Professional Interfacing for all
sorts of remote production
Video Outputs:
Standard professional interfaces
include HDMI, as well as IP/Network
for single cable delivery of
high-quality content up to 1080/60p.
Audio Input:
Audio input and embedding (on IP,
HDMI) are also available via a
switchable, stereo MIC/LINE input.
Serial Control:
RS-422 serial compatibility is
available for serial-based control
workflows (i.e. connection to
AW-RP50/120 or previous
controllers). RS-232 and RS-422
VISCA protocol is available when
introducing a Panasonic camera into
an existing control structure.
USB or microSD Card
Recording: The mini-USB
connector allows the AW-HN38 to be
utilized as a USB camera utilizing
standard USB Video/Audio class
drivers. Many applications that
connect to USB cameras, such as
teleconferencing or software
switching solutions, will be able to
connect to the HN40 without external
converters. Alternatively, microSD
recording enables ISO MP4/H.264
recording internally in the HN38,
transfer of content over the network
via a web browser or FTP.
Network Connected |
The LAN port on the HN38
unleashes the possibilities:
•
Power of Ethernet+ (PoE+) for easier
system installation and setup.
•
Control the camera via the network
with an AW-RP50/120 hardware
controller or Panasonic software
solutions
•
Access the built-in web interface to
monitor and control all aspects of
the camera
•
Utilize a supported third-party
control system from broadcast
control systems, switchers, lecture
capture systems, AV Control system
and more
•
By default, the camera has a
built-in H.264/MJPEG encoder for 7
channels of encoding up to 25Mbps.
Pair with a supported hardware or
software decoder.
•
Built-in NDI®|HX (a technology of
NewTek Inc.) for the ultimate single
cable production workflow with
ultra-low latency video, audio,
control, tally, and power over a
single cable
Flexible
Installation & Mounting
Blend-in: The
camera is exceptionally easy to
integrate and is available in two
colors (-W: pearl white and -K:
black matte) to suit a wide range of
applications.
Ceiling
Mount: A twist-lock ceiling
mount is included as a standard
accessory.
Tripod Mount
for Mobile Production: The
HN38 is also equipped with a 1/4-20
tripod mounting screw receptacle and
a safety lanyard for use with many
mounting and grip systems.
Wall Mount: An
optional heavy-duty wall mount is
available in either black
(FEC-40WMK) or white (FEC-40WMW). |
| Color
|
Black (K) or White (W) |
| General
|
- |
| Sensor
|
1/2.3 inch MOS |
| Optical Zoom
|
22x |
| i.Zoom
|
30x |
| DIGITAL ZOOM
|
16x |
| FOV (Horizontal)
|
61.6° (W) - 2.9° (T) |
| FOV (Vertical)
|
37.0° (W) - 1.6° (T) |
| FOV (Diagonal)
|
68.7° (W) - 3.3° (T) |
| Focus
|
Auto / Manual |
| Horizontal Resolution
|
1000 Lines |
| MINIMUM ILLUMINATION
|
0.35 lx |
| Gain
|
0 dB - 48dB |
| Power
|
PoE+ or AC |
| Weight (kg)
|
Approx. 1.5 kg |
| Weight (lbs.)
|
3.30 lbs |
| Installation
|
Tripod, Wall*2, Ceiling |
| Mount Position
|
Invertible |
| Standard Warranty
|
1 Year |
| PTZ
|
- |
| Pan Range
|
±175 degrees |
| Tilt Range
|
-30 to 90° |
| Pan / Tilt Speed
|
300°/s (Preset) | 90°/s (M) |
| Operation noise
|
NC35 or Less |
| VIDEO OUTPUT
|
- |
| LAN with built-in NDI|HX*1
|
✓ |
| 3G-SDI
|
- |
| HD-SDI
|
- |
| SD-SDI
|
- |
| HDMI
|
✓ |
| Composite
|
- |
| USB
|
✓ |
| Output Format
|
1080/59.94p, 1080/29.97p, 1080/59.94i,1080/29.97PsF, 720/59.94p, 1080/50p,1080/25p, 1080/50i, 1080/25PsF, 720/50p |
| Control
|
- |
| Browser (PC/Mac/Mobile) via IP)
|
- |
| Live Production Center (Streaming Switcher/Controller)
|
AV-HLC100 |
| Wide-Angle Tablet Control
|
AW-HEA10 |
| IR Remote Control
|
AW-RM50 |
| Compact Controller
|
AW-RP50 |
| Full-Size Controller
|
AW-RP120 |
| Remote Operation Panel
|
AK-HRP200 |
| Compact Live Switcher
|
AW-HS50N |
| Features
|
- |
| IP Live Preview
|
✓ |
| Simultaneous Multi-Stream
|
✓ |
| Image Stabilization
|
Electronic |
| Night Mode (for IR)
|
✓ |
| Dynamic Range Stretch (DRS)
|
✓ |
| Audio Input / Embedding
|
✓ |
| Color Temperature Adjustment
|
✓ |
| Presets
|
Up to 100 |
| microSD Card Recording
|
✓ |
| High Dynamic Range (HDR)
|
✓ |
| Fanless Design
|
✓ |
| ND Filters
|
- |
| Genlock
|
- |
| Advanced Color Adjustment
|
- |
| Digital Noise Reduction (DNR)
|
✓ |
| Note
|
*1: This product is compatible with NDI|HX technology of NewTek, Inc.
*2: With appropriate right angle wall mount, available locally
*3: HDMI output only.
*4: When either 480/59.94p(i) or 576/50p(i) is selected, the output formats are delivered as follows: P signal for HDMI output and I signal for SDI output. |
| Weight
|
3.30 lbs |
|
