JVC DT-E21L4U 21-INCH MULTI-FORMAT LCD MONITOR (LED BACKLIT)
|
|
The DT-E21L4 is a cost-efficient full HD LCD 21-inch Studio Monitor with LED backlighting, reduced power consumption and improved lifespan.
JVC's new DT-E Series HD monitors to provides a cost-effective alternative to our industry-standard DT-V high-end monitors.
They feature a newly-developed TN Panel with LED backlighting that provides improved contrast and black level.
With power consumption 20-30% less than conventional CCFL monitors, the DT-E Series monitors are perfect for use as control and studio monitors.
The reduced power consumption also makes it possible to add 12VDC support for field use.
|
Product Code:DTE21L4U
 |
|
- HD-SDI and HDMI compatible
- Full HD Resolution with 1920 x 1080 panel
- Composite Video In/Out, Component
Video In, Analog RGB Video In, HDMI In, HD/SD-SDI In/Out
- 3-Way stand for versatile installation
- Mercury-free LED Backlight
- IMD (In Monitor
Display) function based on TSL's UMD protocol ver. 4.0
- 10bit color processing
- 16ch embedded audio with level indicator
- Other features
● 16.7 million display colors
● Area/Center / Safety marker
● LTC & VITC time code support
● Built-In speakers
● AC/DC Power Supply
● Non-glare panel (1,000:1 contrast ratio)
|
|
The DT-E21L4 is a full 1920 x 1080 HD monitor with HDMI and HD-SDI interfaces, a number of status
alert functions such as 16-ch audio level meter, multi-color tally lamp, and IMD, plus the convenience of DC power operation.
The latest interfaces — HDMI and HD-SDI
HD-SDI input and output, as well as HDMI connectors, are included as standard, making these monitors suitable for a variety of
professional applications, including post-production and broadcasting.
Full HD resolution non-glare LCD
panel with LED backlighting
The monitors feature a 1920 x 1080 pixel full HD resolution non-glare LCD panel with LED backlighting. Compared to CCFL backlit monitors, LED backlit LCD
monitors are more energy efficient, radiate little heat, and best of all, are free of mercury. The panel is compatible with ITU-709 color gamut and offers
high-speed response with low latency of less than one frame (in field mode).
16-channel embedded audio level meter

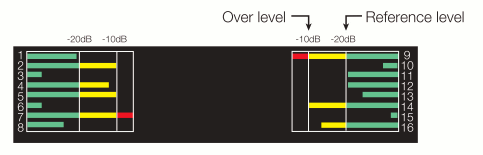

A convenient 16-channel audio level meter with multiple indications such as peak, and graduation levels, provides at-a-glance recognition of audio signal status.
Carrying handle and DC power supply
The DT-E series monitors are light enough to carry around, at just 7.1 kg / 15.6 lbs. (17") and 7.7 kg / 16.9 lbs. (21")
respectively. And in addition to a conventional AC adaptor, a DC power input connector (12-17V) is included.
IMD (in-monitor display) function

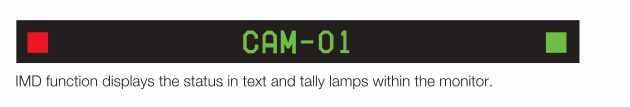

Based on TSL's UMD protocol version 4.0, the built-in IMD (in-monitor display) function keeps track of the monitor's condition, displaying
the monitor identifier as text (e.g., input source equipment, input signal format, etc.) along with tally lamps to show the status.
Easy access front panel controls
The monitor can be controlled directly from buttons and rotary controls located on the front panel. For convenience, users can assign functions to the F1 and F2 buttons.
Other features
●
Multi-color/multifunction tally lamp for Make/Trigger system
●
3-way stand
●
10-bit image processor
●
16.7 million display colors
●
Area/Center/Safety markers
●
LTC, VITC, and D-VITC time code support
● Built-in speakers
|
| Display Device |
|
Display Type |
21.5" LCD Display |
|
Aspect Ratio |
16:9 |
|
Pixel number |
1920 (H) x 1080(V) |
|
Panel surface |
Non-Glare |
|
Viewing Angle |
H:170deg V:160deg |
|
Contrast Ratio |
1000:1 |
|
Display color |
16.7M colors |
|
Backlight |
LED |
|
VESA standard |
100mm x 100mm (M4 x4) |
| Dimension |
| Width |
515mm |
| Height |
352.1mm |
| Depth |
181 mm |
|
Weight |
7.7kg/6.2kg (without stand) |
Power Requirement
|
AC 120, 220-240V 50/60Hz
DC 12~17V
|

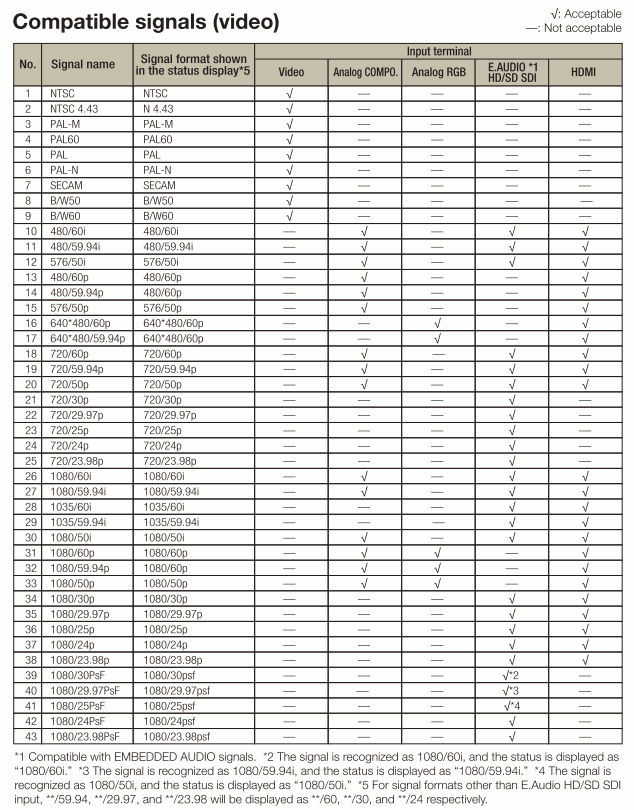

| External In / Out |
Video IN/OUT
|
Composite Video IN: BNC x 1
Composite Video OUT: BNC x1 Loop through
|
- Component

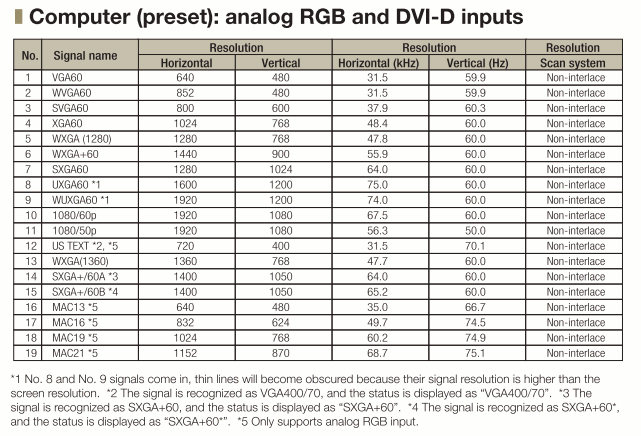

- Analog RGB In
|
Mini D-Sub 15 pin x 1 |
|
HDMI In |
HDMI Connector x 1 |
|
HD/SD-SDI |
- IN: BNC x2
- OUT: BNC x1 (Switched / reclocked out)
|
|
Audio |
- IN: RCA x 2 (L/R) 3.5mm Stereo mini jack x 1
- OUT: RCA x 2 (L/R)
- Monitor Out
|
|
Remote |
- MAKE/TRIGGER: RJ-45(8-pin) x 1
- RS-485 IN : RJ-45 (8-Pin) x 1
- RS-485 OUT: RJ-45 (8-Pin) x 1
- RS-232C: D-sub (9-pin) x 1
|
| Audio |
|
Speaker Output Power |
1W x 2 |
|
|
DT-V9L3GY |
DT-E17L4G |
DT-V17G1Z |
DT-E21L4U |
DT-V21G11ZU |
DT-R24L41D |
DT-V24G11Z |
| Viewable Screen size class (diag.) |
9-inch |
17-inch |
17-inch |
21-inch |
21-inch |
24-inch |
24-inch |
| Screen type |
Active matrix LCD |
Active matrix LCD (TN) |
Active matrix LCD (IPS) |
Active matrix LCD (TN) |
Active matrix LCD (IPS) |
Active matrix LCD |
Active matrix LCD |
| Panel surface |
Non-glare |
Gloss |
Non-glare |
Non-glare |
Non-glare |
Non-glare |
Non-glare |
| Backlight |
CCFL |
LED |
CCFL |
LED |
LED |
CCFL |
CCFL |
| Aspect ratio |
15:09 |
16:09 |
16:09 |
16:09 |
16:09 |
16:10 |
16:10 |
| Viewing angle (H/V) |
170° / 170° |
160° / 140° |
178° / 178° |
170° / 160° |
178° / 178 |
178° / 178° |
178° / 178° |
| Pixels |
800 x 480 |
1920 x 1080 |
1366 x 768 |
1920 x 1080 |
1920 x 1080 |
1920 x 1200 |
1920 x 1200 |
| Brightness / Contrast |
350cd/m², 400:1 |
300cd/m², 600:1 |
350cd/m², 900:1 |
250cd/m², 1000:1 |
1000:01:00 |
400cd/m², 1000:1 |
400cd/m², 1000:1 |
| Waveform monitor |
Yes |
No |
Yes |
No |
Yes |
No |
Yes |
| Vectorscope |
No |
No |
Yes |
No |
Yes |
No |
Yes |
| Closed captioning |
Analog |
None |
Analog/Digital ITU 608/708 |
No |
Analog/Digital ITU 608/708 |
None |
Analog/Digital ITU 608/708 |
| Image processing |
4:2:2 8-bit |
1080p 10-bit 4:4:4 |
1080p 10-bit 4:4:4 |
1080p 10-bit 4:4:4 |
1080p 10-bit 4:4:4 |
1080p 10-bit 4:4:4 |
1080p 10-bit 4:4:4 |
| Chroma range |
Standard |
100% EBU |
100% EBU |
100% EBU |
ITU-709 |
100% EBU |
100% EBU |
| 1:1 Monitoring mode |
No |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| On screen audio metering |
Digital (up to 12 ch) |
Digital (up to 16 ch) |
Digital (up to 12 ch) |
Digital (up to 16 ch) |
Digital (up to 16 ch) |
Digital (up to 12 ch) |
Digital (up to 12 ch) |
| On screen time code |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| IMD (in monitor display) |
No |
TSL (UMD V4.0) |
No |
TSL (UMD V4.0) |
No |
No |
No |
| SD/HDSDI inputs |
x2 in, 1 switched out with embedded audio/TC |
x2 in, 1 switched out with embedded audio/TC |
x2 in, 1 switched out with embedded audio/TC |
x2 in, 1 switched out with embedded audio/TC |
x2 in, 1 switched out with embedded audio/TC |
x2 in, 1 switched out with embedded audio/TC |
x2 in, 1 switched outwith embedded audio/TC |
| Dual link / 3G |
No |
No |
Yes |
No |
Yes |
No |
Yes |
| DVI / HDMI Input |
No |
HDMI |
DVI |
HDMI |
DVI |
DVI |
DVI |
| Component input/output |
Yes (Y, Pb, Pr) |
Mini D-sub (RGB, Y, Pb,Pr) |
Yes (Y, Pb, Pr) |
Mini D-sub (RGB, Y, Pb,Pr) |
Yes (Y, Pb, Pr) |
No |
Yes (Y, Pb, Pr) |
| Composite video in/out |
x1
(connector shared w/component) |
x1 |
x1 |
x1 |
x1 |
x2 |
x2 |
| External sync |
No |
No |
No |
No |
No |
No |
Yes |
| Tally lamp |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| Audio speaker |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| Analog audio input |
mono (x1) |
L/R (x1) |
L/R (x1) |
L/R (x1) |
L/R (x1) |
L/R (x2) |
L/R (x2) |
| Analog audio monitor |
mono (x2) |
L/R (x1) |
L/R (x1) |
L/R (x1) |
L/R (x1) |
L/R (x1) |
L/R (x1) |
| Remote control |
MAKE/Trigger |
MAKE/Trigger
RS-485 (I/O)
RS-232C |
MAKE/Trigger
RS-485 (I/O)
RS-232C |
MAKE/Trigger
RS-485 (I/O)
RS-232C |
MAKE/Trigger
RS-485 (I/O)
RS-232C |
MAKE/Trigger
RS-485 (I/O)
RS-232C |
MAKE/Trigger
RS-485 (I/O)
RS-232C |
| Power requirement |
AC120/220-240V,
50/60Hz DC 12-17 V |
AC 120/220V,
50-60Hz DC 12-17V |
AC 120/220V,
50-60Hz DC 12-17V |
AC 120/220V,
50-60Hz DC 12-17V |
AC 120/220V,
50-60Hz |
AC 120/220V,
50-60Hz |
AC 120/220V,
50-60Hz |
| Rated current |
0.35A (AC120V)
1.7A (DC12-17 V) |
0.5A (AC120V)
3.0A (DC12-17 V) |
1.2A (AC120V)
5.0A (DC12-17 V) |
0.6A (AC120V)
3.5A (DC12-17 V) |
0.6A (AC120V)
0.4A (AC240V) |
1.15A (AC120V) |
1.15A (AC120V) |
| Power saving mode |
Yes (P.SAVE) |
Low power mode |
Yes (P.SAVE) |
Low power mode |
Yes (P.SAVE) |
Yes (P.SAVE) |
Yes (P.SAVE) |
| LCD Saver mode |
No |
Yes |
No |
Yes |
Yes |
No |
No |
| Carry handle |
Yes |
Yes |
Yes |
Yes |
No |
No |
No |
| Desktop stand |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| External Monitor calibration software |
No |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
|
|
| |
| |
 |
|
|
