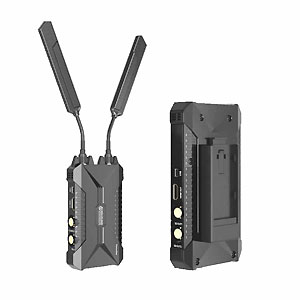

Cosmo 500 500FT Wireless HDMI/SDI Transmission System
Features:
- Guaranteed distance: 500FT
- 3G-SDI In/Loop Out, HDMI In/Out
- No compression, no delay
- True full HD 1080P60;4:2:2
- Point to point & Multipoint
-
Support Timecode & Trigger
- 5GHZ Frequency Band
- Working Voltage:7-36VDC
- AES-128 encrypted transmission
| |
Transmitter |
Receiver |
| Interfacee |
SDI Input (BNC female)SDI Input (BNC female))
SDI Loop Out (BNC female) HDMI Input (Type A female))
2 Antenna Port (RP-SMA male))
DC Input (2pin LEMO female) Mini USBB
3.5mm Stereo In |
SDI 1 Output SDI 2 Outputt
HDMI Output(Type A female))
DC Input(2pin LEMO female))
Mini USBMini USB |
| Supply voltage range |
7-36V DC |
7-36V DC |
| Power consumption |
< 6 W |
< 8 W |
| Size |
(L x W x H):130.5*70.5*21mm,,
not include antennas and battery platenot include antennas and battery plate |
(L x W x H): 161*93*23mm,
not include antennas and battery platenot include antennas and battery plate |
| Mass |
210 g |
250 g |
| Input Video Format |
HDMI:480p60,576p50,720p50/59.94/60,
1080i50/59.94/60,
1080p23.98/24/25/29.9/30/50/59.94/60;
HDMI Type A
SDI：3G, HD, and SD-SDI (auto-selected),
SMPTE-259/274/292/296/372/424/425;
1x BNC;1x BNC Loopout; |
/ |
| Output Video Format |
/ |
HDMI:480p60,576p50,720p50/59.94/60, 1080i50/59.94/60, 1080p23.98/24/25/29.9/30/50/59.94/60;
HDMI Type A
SDI：3G, HD, and SD-SDI (auto-selected),
SMPTE-259/274/292/296/372/424/425;
2x BNC output; |
| Input Audio |
SDI/HDMI embedded 2 channel 24 bit/48KHZ |
/ |
| Output Audio |
/ |
SDI/HDMI embedded 2 channel 24 bit/48KHz |
| Frequency Band |
5.1-5.9GHz，configurable with China North America, Europe,etc |
5.1-5.9GHz, confgurable with China, North American, Europe, etc |
| Modulation Mode |
OFDM-16QAM |
OFDM 16QAM |
| Transmission Power |
Maximum 17dBm |
/ |
| Receiver Sensitivity |
/ |
-75dBm |
| Occupied Bandwidth |
40MHz |
40MHz |
- 5 GHz Antennas*3
- Magic Arm*1
- Crab Clamp*1
- User Manual*1
- D-tap to Lemo Cables*2
- Hard Case*1
-
Transmitter*1
- Receiver*1
- Mushroom Antennas*2
|
