 DPA d:fine™ 88 Single-ear Directional Headset Microphone


DPA d:fine™ 88 Single-ear Directional Headset Microphone

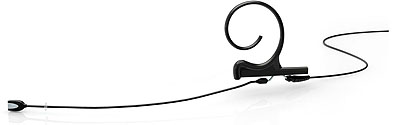

The d:fine™ 88 Headset Microphone combines the legendary 4088 directional capsule with the lightweight and flexible d:fine Headset system.

The d:fine Headsets features:
• Pristine audio quality
• Easy single-ear or dual-ear mounting
• Minimal visual impact
• Adapts to all pro wireless systems

Available in black, beige, brown, and lime green, d:fine has been ergonomically designed to fit easily and seamlessly. It will adjust to fit any ear size and head shape while mounting securely and hardly visible.

Just by rotating the boom and the earhook, the microphone can be moved from left to right ear, or into the optimum position.

Staying true to the DPA legacy, d:fine offers accurate, natural voice intelligibility and very high SPL capabilities – users can both speak and sing into the mic with no hint of distortion.

d:fine 88 is available with single- or dual-ear mounts. The dual-ear mount is dedicated for more active situations and will be safe in even the most rigorous and energetic performance applications.

Boom lengths
Two omnidirectional boom lengths are available to accommodate different applications and head sizes: 120 mm (4.7 in), 100 mm (3.9 in).

Cables
A service connector splits the cable from the microphone boom and allows for quick exchange of cable lengths/colors/connectors and is valuable for servicing broken cables.

Accessories
The d:fine mic with boom, earhook, and cable is delivered in a neat, roadworthy box with room for accessories like transmitters and batteries. The DPA accessory line includes power supplies and adapters or cables with fixed connectors (MicroDot, 3-pin Lemo, TA4F Mini-XLR, Mini-Jack).

• Microphone (boom, ear-hook, cable)
• Cable clip which anchors the cable to your clothing
• A pre-mounted pop screen and foam windscreen
• Five identification rings and one make-up cover (DUA0585)
• Four windscreens (DUA0531)

 Directional characteristics:  Cardioid
 Principle of operation:  Pressure gradient
 Cartridge type:  Pre-polarized condenser
 Frequency range:  20 Hz - 20 kHz
 Frequency range, ± 2 dB, near field 2 to 3 cm (0.8 to 1.2 in):  100 Hz - 20 kHz (4 – 6 dB soft boost at 15 kHz)
 Sensitivity, nominal, ± 3 dB at 1 kHz:  6 mV/Pa; -44 dB re. 1 V/Pa
 Equivalent noise level, A-weighted:  Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A)).
 Equivalent noise level, ITU-R BS.468-4:  Typ. 38 dB (max. 40 dB)
 S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL):  Typ. 68 dB(A).
 Total Harmonic Distortion (THD):  <1 % up to 123 dB SPL peak; <1 % up to 120 dB SPL RMS sine
 Dynamic range:  Typ. 97 dB
 Max. SPL, peak before clipping:  144 dB
 Output impedance:  From MicroDot: 30 - 40 ohm. From DAD6001-BC: 100 ohm.
 Cable drive capability:  Up to 300 m (984 ft) with DAD6001-BC XLR adapter
 Output balance principle:  Signal balanced with DAD6001-BC XLR adapter
 Common Mode Rejection Ratio (CMRR):  > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR adapter
 Power supply:  For wireless systems: Min. 5 V through DPA adapter.
 Current consumption:  Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR adapter.
 Connector:  MicroDot
 Color:  Black, beige or brown
 Weight:  Single Ear: Microphone boom: 1 g (0.035 oz). Earhook: 1 g (0.035 oz).  Cable: 8 g (0.28 oz). Total: 10 g (0.35 oz)
 Microphone diameter:  Length: 10 mm , Diameter: 5 mm
 Capsule diameter:  5.4 mm (0.2 in)
 Microphone length:  Boom length: 120 mm, 100 mm (M)
 Cable length:  1.25 m (4.1 ft)
 Cable color:  Black, beige or brown
 Cable diameter:  1.6 mm (0.06 in)
 Polarity:  +V at MicroDot pin for positive sound pressure (and pin 2 on DAD6001-BC XLR adapter)
 Electro Magnetic Compatibility (EMC):  Fully compatible
 Temperature range:  -40 °C to 45 °C (-40 °F to 113 °F)
 Relative Humidity (RH):  Up to 90%
