• Sony PXW-Z450 4K XDCAM Shoulder Camcorder

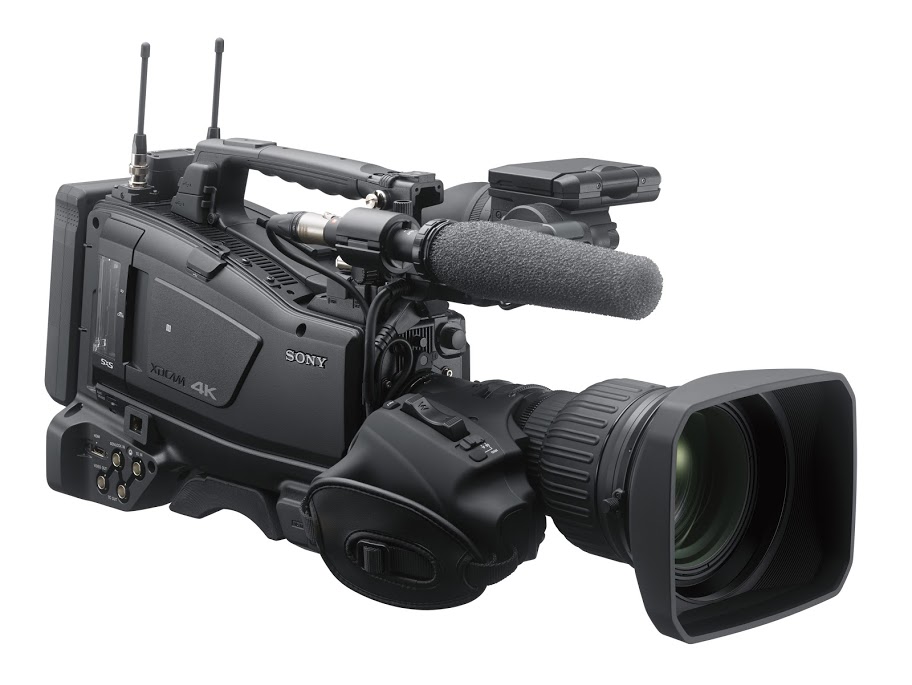

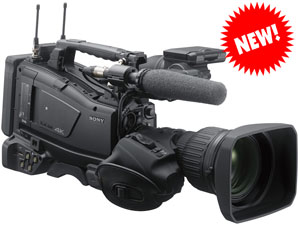

  • Sony PXW-Z450

    4K XDCAM Shoulder Camcorder With 2/3-type image sensor

  • Sony PXW-Z450 4K XDCAM Shoulder Camcorder Sony PXW-Z450 4K XDCAM Shoulder Camcorder

Sony PXW-Z450 4K XDCAM Shoulder Camcorder With 2/3-type image sensor

Home > Sony > XDCAM > PXW-Z450
  • Sony PXW-Z450 4K XDCAM Shoulder Camcorder

    Product Code: PXWZ450
    Buy Sell Sale Sony PXW-Z450 4K XDCAM Shoulder Camcorder


  • Features

    - Shooting in 4K and HD
    - Versatile B4 ENG Lens Options
    - Low power and ergonomic design
    - Excellent network connectivity
    - High quality recordings in 4K QFHD and HD
    - High sensitivity image making
    - Discover Optimized Weight Balance
    - One-touch wireless LAN connection
    - Built-in wireless module

  • Optional Accessories
    Sony Headphone
    Sony MDR-7506

    MDR-7506

    Buy Sell Sale Sony MDR-7506

Sony PXW-Z450 Overview:

Sony's latest XDCAM shoulder-mount camcorder, PXW-Z450 is capable of capturing 4K (3840 x 2160) picture quality from its new 2/3-type Exmor R™ CMOS sensor. The Sony PXW-Z450 camcorder combines enhanced weight balance and low power consumption with field production features needed by broadcasters, including pool feed and multi-format recording.

Users can attach standard B4-mount lenses directly onto the camcorder's body without the need for an adapter, providing the flexibility to easily change lenses.

The Sony PXW-Z450 camcorder also supports multi-format recording, allowing users to shoot at 1080p HD and switch to 4K 60p. The PXW-Z450 supports XAVC Intra and XAVC Long for 4K recording as well as MPEG HD422.

With high zoom ratio and depth of field, the Sony PXW-Z450 supports pool feed functions (HD/SD-SDI), allowing broadcasters to record an external signal on an SxS card from another camera on-site without a portable deck.

The Sony PXW-Z450 inherits many features from Sony's PXW-X400. This includes the "ONLINE button" which lets users transmit proxy clips or stream AV signals to other equipment connected on the network.

For current Sony PXW-Z450 users, Sony will also introduce a 4K upgrade kit (CBK-Z450UK), which will offer users the same functionalities of the PXW-Z450.

The Sony PXW-Z450 is a body-only model with no lens or viewfinder, but it can be paired with the optional HDVF-series full HD OLED viewfinder (HDVF-EL20/EL30).

The Sony PXW-Z450 is scheduled to be available by the end of 2016.


PXW-Z450: Features

High quality recordings in 4K QFHD and HD
The PXW-Z450 supports a variety of 4K and HD formats, including 4K QFHD (3840x2160) at 50p/59.94p, using the XVAC Intra and XAVC Long GOP, MPEG HD 422 and MPEG HD 420 workflow standards.

High sensitivity image making
The camcorder's specially-developed 4K 2/3-type Exmor R CMOS sensor provides superb image quality and high sensitivity. The sensor matches B4 mount lens systems, allowing you to use commercially-available B4 4K/HD lens systems without the need to use an adapter.

Discover Optimized Weight Balance
PXW-Z450 is the world-first* 4K shoulder-mount camcorder and it inherits design concept of the PXW-X400 XDCAM camcorder with a favorable reception. Thanks to its ergonomic design, the PXW-Z450 camcorder achieves optimized weight balance to lessen the weight on the lens grip and stable image shooting.

*As of April, 2016, based on Sony's research.

Supports QHD LCD and Full HD OLED viewfinders
The camcorder supports a variety of Sony's viewfinders, including the Full HD OLED HDVF-EL30 and HDVF-EL20. The OLED viewfinders take an advantage of focusing the 4K shooting.

Embedded RJ-45 connector
An embedded RJ-45 Ethernet 100B-T connector on the right side of the camcorder provides a robust and fast network connection that can be used for file transfer, live streaming and camera control from a web browser.

One-touch wireless LAN connection
A Near Field Communication (NFC) function allows easy, one-touch wireless LAN connection to a smartphone or tablet device without manual setting of the network parameters.

Easy network connection
A dedicated button gives simple on-off control of Network Client Mode, Auto Upload (Proxy) and Live Streaming.

Records a second camera's feed via SDI
An SD or HD-SDI (up to 1.5G) signal can be recorded by the camcorder, a useful function to record an external feed from another camera.

Lower power consumption
By optimising the design of the hardware, the lightweight camcorder has a low power consumption. This enables continuous recording operation for long hours of filming.
