 Panasonic BT-LH2550E 25.5 Multi-Format Color LCD Production Monitor with native 1920 x 1200 IPS Panel


Panasonic BT-LH2550E
Product code: BTLH2550E
Buy Sell Sales Panasonic BT-LH2550
review button




With an advanced In-Plane Switching (IPS) panel and full 1920 x 1200 HD resolution, the 25.5" BT-LH2550 LCD production monitor delivers stunning picture quality and greatly expands the range of colors you can view on screen beyond the NTSC standard. Designed for applications that require the highest resolution and color performance, the LH2550 has an exceptionally wide color gamut -- it surpasses the ITU-R BT.709 standard (130%), enabling it to display a greater range of colors than conventional LCD and CRT displays. The monitors IPS panel technology ensures superior performance with high contrast and brightness (1000:1 contrast ratio), 10-bit processing, wide viewing angles and exquisitely detailed pictures. The LH2550 ensures you have the perfect color every time for far less than premium-priced reference monitors.

The monitor features a full range of professional level inputs including two auto-switching SDI (HD/SD) inputs (with switched output), component and RGB, and adds a DVI-D input. Additional tools include vectorscope and waveform monitor functions, a split-screen function that simultaneously displays two images side-by-side from two different type video inputs. And built-in calibration software that allows the monitor to be calibrated without using a PC.

The LH2550 incorporates a space-saving design with a slim frame and aluminum alloy back panel; its 1/3 lighter than its predecessor, the BT-LH2600W. It offers noise-free operation (no cooling fan), and is VESA mount compatible.

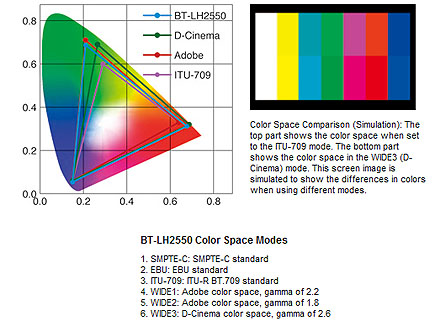

A Wide Color Space with Six Color Space Modes
The color space of the BT-LH2550 is 102% that of the NTSC standard, so it exceeds the EBU/SMPTE range that can be displayed by ordinary LCDs. It accurately reproduces colors that are not easily reproduced by conventional displays, including CRTs, to meet the needs of both broadcasters and image production companies, and to work in fields such as digital cinema, CG production, printing, publishing, advertising, and research. The BT-LH2550 also offers three new color space modes in addition to the three conventional modes. The modes are menu switched. Modes can also be assigned to function switches on the front panel for quick and easy changing.

Panasonic BT-LH2550E

A Space-Saving 647.7 mm (25.5 inches) Full-HD Monitor
The BT-LH2550 is a full-HD WUXGA (1920 x 1200-pixel) high-resolution IPS monitor. Thanks to its LCD panel and the flat and lightweight design, the monitor saves space.

An IPS Panel with a Wide 178° Viewing Angle
This high-brightness, high-contrast, horizontally aligned (using IPS technology) LCD panel has 178° vertical and horizontal viewing angles, the widest viewing angles offered by any LCD display. It delivers high-quality images with superb color accuracy, and exhibits minimal changes in brightness and color due to the viewing angle.
Panasonic BT-LH2550E


Calibration Function
The BT-LH2550 comes installed with software that allows it to be calibrated without using a PC, by simply connecting a manufacturer-designated display color analyzer and measurement probe to the monitor.
Panasonic BT-LH2550E

2-Input Split-Screen Function
This function simultaneously displays two images side-by-side from two video inputs. It is especially useful for combining CGs and actual images. Because a single monitor can temporarily serve as two monitors, it helps to save space. It is also possible to set the size, color space, and gamma and RGB gains individually for each input.

Panasonic BT-LH2550E
*It may not be possible to display both images simultaneously with certain input signal combinations.

Features and Functions
• A three-dimensional LUT offering virtually the same color reproduction as CRTs in all video formats.
• Advanced image-enhancing circuitry, including excellent motion response and a diagonal line compensation circuit.
• Wide viewing angles: 178° horizontal and vertical.
• Ideal gradation for broadcast applications. Color temperature can be selected from 9300 K, 6500 K or 5600 K.
• Various marker, cross hatch overlay and blue-only display functions.
• Vector scope and waveform monitoring.
• Audio level meter overlay display (with SDI input).
• Time code and closed caption display.
• Cine-gamma (F-REC) compensation for Varicam shooting.
• RS-232C/GPI remote control terminals.
• Tally lamp (red, green, amber).
• Wall mounting.

Power Requirement: DC 24 V 4.5 A, DC 5 V 0.03 A
AC adapter In: 100 V to 240 V, 50/60 Hz, 1.6 A to 0.6 A
Dimensions (WxHxD): 599 mm x 440 mm x 220 mm (23-5/8" x 17-3/8" x 8-11/16") - Including stand
599 mm x 410 mm x 100 mm (23-5/8" x 16-3/16" x 3-15/16") - Main unit only; not including stand
232 mm x 50.5 mm x 177 mm (9-3/16" x 2" x 7") - AC adapter
AC adapter: AC adapter: 1.7 kg (3.7 lbs)
Operating Temperature: +5°C to +35°C (41°F to 95°F)
Operating Humidity: 20 % to 80 % (non-dew)
Weight: 9.7 kg (21.4 lbs) (Including stand), 8.2 kg (18.1 lbs) (not including stand)
Storage Temperature: -20°C to +60°C (-4°F to 140°F)
Panel Size: 26 inch
Aspect Ratio: 16:9
Resolution: 1,920 x 1,200 pixels (WXGA)
Display colors: Approx. 16,770,000 colors
Viewing Angle: 178° (both horizontal and vertical)
Video Input/Output:: Video: BNC x 2, (with through-out connector)
Y/PB/PR. RGB: BNC x 6 (with through-out connector x 3)
SYNC/HD: BNC x 2(with through-out connector x 1)
VD: BNC x 2(with through-out connector x 1)
SDI: BNC x 3 (switched-out connector x 1)
DVI-D (HDCP, TMDS Single Link): DVI-D x 1
Vertical frequency: 50.0 Hz to 60.0 Hz
Horizontal frequency: 31.5 KHz to 67.5 KHz
Dot clock: 25 MHz to 165 MHz
Audio input: Pinjack x 2 (stereo)
Headphone Output: M3 stereo mini jack x 1
Remote: GPI: D-SUB, 9 pin RS-232C: D-SUB, 9pin
External DC Power Input: XLR, 4pin (Supplied AC adapter only)
Signal Level: Video: SYNC signal level: 0.3 Vp-p to 4.0 Vp-p HD/VD Signal level: TTL level
Audio:
Audio input signal level: 0.5 Vrms
Head phone output: 32 ?, Variable Level
SDI Embedded Audio:
HD-SDI : SMPTE299M standard, 48 kHz, 8CH synchronous/asynchronous
SD-SDI : SMPTE272M standard, 48 kHz, 4CH synchronous
Accessories: Option: Wall Mount Adaptor
AC Adapter, Power Cord, Power Cord Hook, Screw, DC Cable
