 Panasonic BT-LH1850 HD/SD LCD Widescreen Monitor

Panasonic BT-LH1850
Product Code:BTLH1850
This model is discontinued



The Panasonic BT-LH1850 LCD Monitor offers high-end performance and functions for broadcasting use. With features like the 3D-LUT Color Correction, the high-quality image engine produces faithful color hues and smooth gradation, together with quick-response motion images. It's also packed with convenient broadcasting functions, like a waveform monitor for Y, R, G and B signals, SDI closed caption display, and a RS-485 serial remote. The new panel with an LED backlight provides remarkably low power consumption and high cost-performance. This versatile monitor meets a wide range of needs, from image production to broadcasting and business use.

· Image Quality and Color Management Technologies in the LH Series LCD Monitors for Broadcasting Use
Panasonic BT LH1850

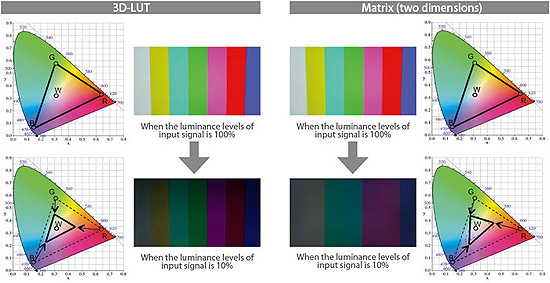

· 3D-LUT Color Correction Keeps Colors Faithful Even at Low Luminance Level
Panasonic BTLH1850
The color space on LCD displays tends to narrow when the luminance level drops, and it's often accompanied by color phase shifts that cause colors to drift. 3D-LUT (Look Up Table) Color Correction on the LH Series LCD monitors includes a look up table for each luminance level, and applies 10 bit image processing to each RGB color to balance the six coordinate poles of the three primary colors (RGB) and their complementary colors (CMY). This solves the problem of color drifting at low luminance levels, and keeps colors vividly natural.

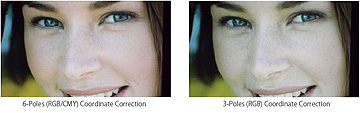

· 6-Poles (RGB/CMY) Coordinate Correction Produces Smooth Intermediate Colors
Panasonic BT-LH1850
In addition to enhancing low luminance areas, 3D-LUT Color Correction helps to produce finely nuanced intermediate hues. Based on color measurements in the intermediate color parts of the image, this function applies smooth correction processing while balancing the six coordinates of the three primary colors (RGB) and their complementary colors (CMY), resulting in beautifully smooth gradation. It keeps the intermediate shades of extremely fine colors vibrant and lifelike.

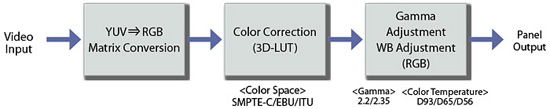

· Faithful Color Correction from the 3D-LUT
By using a three-dimensional LUT (Look Up Table) for each RGB color and applying precise 10 bit image processing, faithful colors are reproduced from low to high luminance levels and natural intermediate colors are attained. (more information)

· I/P Conversion Circuit for Motion Response
A circuit delay time (not including panel delay) of approximately 5 msec* is achieved by incorporating an I/P converter circuit that converts SD and HD interlace signals with high precision to generate progressive signals without causing field-length delay. Minimizing the delay between the input signal and monitor output enables the user to confirm footage without any incongruity.
* Differs slightly depending on the signal format.

· Diagonal Line Compensation
Jagged noise on diagonal lines in moving images is a common problem. This LCD monitor solves this by detecting correlations in the diagonal direction, resulting in smooth, precise reproduction of moving images.
Panasonic BT-LH1850

· Broadcast Settings for Gradation and Color Temperature

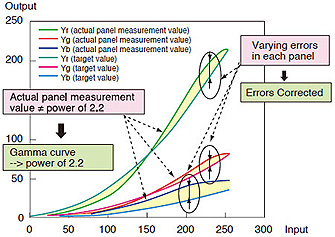

Individual RGB corrections are made on every monitor that is shipped, to ensure that rated gamma properties (g = 2.2) are reproduced, and gradation suitable for broadcasting is achieved. A color temperature of 9300 K/6500 K/5600 K, or 3000 K to 9300 K, can be selected with the variable setting.

· WFM (Y/R/G/B) Display
The built-in waveform monitoring function displays a waveform in a sub-screen. The display signal can be selected from Y, R, G and B.

· Vectorscope Display
All lines of the input signal via SDI are displayed as a vectorscope, and can be positioned in any of the four corners of the screen.

· Various Markers
Various markers can be displayed in both 16:9 and 4:3 aspect ratios.
• Aspect Marker (16:9): 4:3, 13:9, 14:9, CNSCO2.39, CNSCO2.35, 2:1 or VISTA, with background brightness control of Black (0%), Half (50%) or Normal (100%).
• Safe Area Marker (16:9/4:3): 95%, 93%, 90%, 88%, 80% or VAR (variable setting).
• Center Marker (16:9/4:3): ON/OFF. The center marker can be displayed together with another marker, as shown in the example right.


· Cross Hatch Overlay
A simple cross hatch overlay can be displayed to check the tilt of the camera.

Panasonic BT-LH1850
· Pixel-to-Pixel Display
This function lets you display and confirm video pixels without any resizing. When displaying 1080i/p, you can choose from five display areas: center, right-top, rightbottom, left-top or left-bottom.

· Still Frame Display
A frame of video can easily be frozen and displayed as a still image on the left side of the screen. This function can be used to match a live camera with a frame of video shot at an earlier time or with a different camera.

· Audio Level Meter
The color audio level meter displays the input level of embedded audio (SDI, HDMI*) or analog audio.* The display mode can be selected from 2-channel, 4-channel, 8-channel or OFF. It is also equipped with reference point setting, peak hold and over-range display functions.
* For HDMI or analog audio input, the level meter displays only two channels.

· Time Code Display
With HD SDI input, this function displays the value of the VITC, LTC or UB time code.

· HV Delay Display and Mono Mode
The HV Delay function that displays the video blanking period, and the Mono mode that switches the display to black-and-white, can be assigned to function keys for quick access.

· RS-485 Serial Remote
Up to 32 monitors connected in a loop-through configuration can each be designated and controlled by a distinct ID number. TSL commands allow text display (8 alphanumeric characters) and tally indication. The monitors also support unique Panasonic commands (equivalent to RS-232C).

· Calibration Function
The BT-LH1850 comes installed with software that allows it to be calibrated without using a PC, by simply connecting a manufacturer-designated display color analyzer and measurement probe to the monitor.
* Konica Minolta CA-310 Display Color Analyzer with CA-PU32/PU35 or CA-PSU32/ PSU35 Standard Measurement Probe. For more information about the Konica Minolta calibration system, please see the following website [KONICA MINOLTA].
Panasonic BT-LH1850

· Cine-gamma and Black Mode
The BT-LH1850 is equipped with a cine-gamma (F-REC) compensation function and serves as a monitor for the Varicam camera recorder. The black mode also makes dark image areas in low-gradation scenes easier to see. It helps to produce movies as well as film-like HD programs and commercials.

· Function Keys
Each of the function keys on the front panel can be assigned a function selected from various display and switchover functions to enable one-touch display ON/OFF or mode change. These function buttons speed up operation and customize the functions to individual user needs.

· SDI, HDMI and DVI-I Inputs
Two SDI inputs (SDI1/SDI2) with an automatic HD/SD switching function are provided as standard equipment. They support embedded audio, and the channel for audio output to speakers and headphone can be selected. The next-generation HD Link is featured to allow high-quality digital connection of a wide range of digital HD products with an HDMI terminal, such as BD/DVD players. Digital and analog DVI-I (Single Link) input is also provided.

· Low Power Consumption and Mercury-Free Design Help Protect the Environment
A thorough energy-saving design has achieved low power consumption of only 22 W (with DC input), which is a 54% reduction from our previous model (the BT-LH1710 (2009 model) / Power Consumption 48W (DC IN)). A mercury-free LED backlight is also gentle to the environment.

Power Supply: AC 100 V - 240 V, 50 Hz/60 Hz/DC 12V (11V-17V)
Power Consumption: AC 0.30 A - 0.15 A/DC 1.8 A
Operating Temperature: 5°C to 35°C (41 °F to 95 °F)
Operating Humidity: 20% to 80 % (no condensation)
Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F )
Weight: Approx. 7.0 kg (15.43 lb) (including tilt stand),
Approx. 5.6 kg (12.35 lb) (monitor only not including tilt stand)
Dimensions: (W x H x D): 479 mm x 390.7 mm x 240 mm
(18-7/8 inches x 15-3/8 inches x 9-7/16 inches)
(including tilt stand)
479 mm x 339 mm x 76.5 mm
(18-7/8 inches x 13-3/8 inches x 3 inches)
(monitor only not including tilt stand)
Panel Size: 47 cm (18.5 inches) (Effective display area)
Aspect Ratio: 16:9
Resolution: 1,366 pixels x 768 pixels (WxGA)
Display colors: Approx. 16,770,000 colors
View Angle: 170° horizontal, 160° vertical (contrast > 10:1)
Video Input: 1 input, BNC x 1
SDI Input: 2 inputs, BNC x 2
SMPTE274/296M/259M-C/ITU-R BT.656-4 standard
Embedded Audio supported
HD SDI: SMPTE299M standard, 48 kHz, synchronous, 8 CH
SD SDI: SMPTE272M standard, 48 kHz, synchronous, 4 CH
HDMI Input: 1 line, HDMI x 1 (Type A terminal) , HDCP supported, Embedded Audio supported, VIERA Link not supported
DVI-I Input: 1 input (single link)
Audio input: Pin jack x 2 (stereo)
Input Signal Level: 0.31 Vrms
Video Output: 1 line, BNC x 1 (through-out)
SDI Output: 1 line, BNC x 1 (switched out)
GPI: 1 line, D-SUB, 9 pins x 1
RS-232C: 1 line, D-SUB, 9 pins x 1
RS-485: 1 line, RJ-45 x 2 (input, output)
Headphones: Stereo mini jack M3 x 1, 32 Ω, level adjustable
Speaker Output: Monaural 0.5 W
Tally Output (Display): Red , Green, Amber
