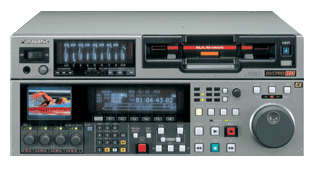

Home > Panasonic > DVCPROHD > AJ-HD1700
Panasonic DVCPROHD HD


Product Code:AJHD1700
Specification

FEATURES
  • DVCPRO HD-LP: Compact and Lightweight, with Extended Recording Time
  • A Superior All-Round Digital HD Performance with 5.1-ch Surround Sound and 24p Cinema
  • High Reliability
  • Complete Upward Compatibility
  • Over Two Hours of Recording on an XL Cassette
  • Selectable 1080i/720p HD Formats
  • 1080/24p Output Supports VARICAM Source Production
  • Records and Plays Eight Channels of Digital Audio
  • Plays Back All DVCPRO Cassettes
  • HD-SD Format Conversion
  • Optional Up-Conversion and Recording of SD Input
  • Output Screen Aspect Ratio Conversion
  • Expanded Front Panel with LCD Monitor
  • 100x Shuttle and Jog
  • Noiseless Slow Playback
  • Multi-Cue Functions
  • High-Precision Editing
  • Built-in Time Code Generator/Reader
  • Standard HD-SDI
  • SD-SDI Output (standard) and Input (optional)
  • SD Analog Composite Output
  • Digital/Analog Audio In/Out
  • SDTI (Serial Data Transport Interface) System*1
    *1. HD signal(1080/60i and 720/60p) only.
  • Meta Data Recording
  • Compact, Easy to Install
  • Versatile Remote Systems
  • Encoder Adjustment



AJ-HD1700 [NTSC, PAL] Specifications
General
Power Supply: AC (100-240) V ±10%, 50 to 60 Hz
Power Consumption: 240W (full option)
220W
Operating Temperature: 41 °F to 104 °F (5°C to 40°C)
Operating Humidity: 10% to 80% (non dew)
Weight: 48.5 lbs (22 kg)
Dimensions (WxHxD): 16-4/3” x 6-15/16” x 17-11/16” (424 x 175.2 x 448.9 mm)
Recording Format: DVCPRO HD-LP
Recording Track: Digital Video:1080i/720p
Digital Audio:8 channels
TC:Subcode area
Cue:1 longitudinal track
CTL:1 longitudinal track
Tape Speed: 67.64mm/s
Rec/Play Time: Max. 126 minutes with AJ-HP126EX
Max. 92 minutes with AJ-HP92LMG
Tape: 1/4” metal particle
FF/REW Time: Less than 1.5 minutes with AJ-HP126EX
Search Speed: ±100x
Editing Accuracy: ±0 frame (TC)
Tape Timer Accuracy: ±1 frame (continuous CTL)
Servo Lock Time: Within 0.3 sec (standby ON)
Loading/Unloading TIme: Approx. 4 sec
Video
Sampling Frequency: Y: 74.25 MHz, Pb/Pr: 37.125 MHz
Quantization: 8 bits
Error Correction: Reed Solomonn Product Code
Compression Ratio: 6.7:1
Bit Rate: 100 Mbps
Digital Audio
Channel: 8 channels
Sampling Frequency: 48kHz
Quantization: 16 bits
Frequency Response: 20Hz to 20kHz, ±1.0dB (reference level)
Dynamic Range: More than 90dB (1kHz, emphassis off)
Distortion: within 0.05% (1kHz, emphassis off, reference level)
Cross Talk: Less than –80dB (1kHz, between any 2ch)
Wow & Flutter: Below measurable limit
Headroom: 20 dB
Cue Audio
Frequency Response: 300Hz to 6kHz (±3dB)
Digital (Video/Audio) Input and Output
HD SDI Input: BNC x 1, SMPTE 292M
BNC x 1 (active through)
SD-SDI Input (option) BNC x 1, BNC x 1 (active through)
Video: SMPTE 259M-C
Audio: SMPTE 259M-C/272M-A
SDTI Input (option): BNC x 1 (SMPTE 305M/321M)
HD SDI Output BNC x 4 (supeimpose x 1)
SMPTE 292M
SD-SDI Output BNC x 2 (supeimpose x 1)
Video: SMPTE 259M-C/294M
Audio: SMPTE 259M-C/272M-A
SDTI Output (option): BNC x 1 (SMPTE 305M/321M)
Video Input
HD Reference: BNC x 2 (loop-through), 75 On/Off
SD Reference: BNC x 2 (loop-through), 75 On/Off
SDTI (option): BNC x 1, SMPTE 305M
Video Output
HD Reference Sync: BNC x 1
SD Reference Sync: BNC x 1
Analog Composite: BNC x 3 (SD playback or down-convert)
OUT2: switchable for WFM OUT
OUT3: super on/off
Audio Input
Analog: XLR x 4 (CH1/2/3/4),
+4/0/–20/–60 dBu switchable,
600
/high-impedance switchable
Digital: BNC x 4 (CH1/2, CH3/4, CH5/6, CH7/8),AES/EBU
Cue: XLR x 1, +4/0/–20/–60 dBu switchable, Low-impedance
Audio Output
Analog: XLR x 4 (CH1/2/3/4), +4/0/–20 dBu switchable, 600/high-impedance switchable
Digital: BNC x 4 (CH1/2, CH3/4, CH5/6, CH7/8), AES/EBU
Cue: XLR x 1, Low-impedance, +4/0/–20 dBu switchable
Monitor: XLR x 2 (L/R), Low-impedance, +4/0/–20 dBu switchable
Phones: M6, variable level control, 8
Others
TC IN: XLR x 1, 0.5 to 8.0 Vp-p
TC OUT: XLR x 1, Low-impedance,2.0Vp-p ±0.5Vp-p
RS-422A IN/OUT: D-sub 9 pin RS-422A I/F
RS-422A OUT: D-sub 9 pin RS-422A I/F
RS-232C: D-sub 25 pin RS-232C I/F
Parallel IN/OUT: D-sub 50 pin
Encoder Remote: D-sub 15 pin
Video Output Signal
•Component style
HD SDI Y Output Gain: – to + 3 dB
HD SDI Pb Output Gain: – to + 3 dB
HD SDI Pr Output Gain: – to + 3 dB
HD SDI Y Black Level: ±10%
SD SDI Y Output Gain: – to + 3 dB
SD SDI Pb Output Gain: – to + 3 dB
SD SDI Pr Output Gain: – to + 3 dB
SD SDI Y Black Level: ±10% (Black Clip ON/OFF switchable)
Composite Y Output Gain: – to + 3 dB
Composite Pb Output Gain: – to + 3 dB
Composite Pr Output Gain: – to + 3 dB
Composite Y Black Level: ±10% (Black Clip ON/OFF switchable)
•Composite style
HD SDI Video Output Gain: – to + 3 dB
HD SDI Chroma Output Gain: – to + 3 dB
HD SDI Chroma Phase: ±30°
HD SDI Y Black Level: ±10%
SD SDI Video Output Gain: – to + 3 dB
SD SDI Chroma Output Gain: – to + 3 dB
SD SDI Chroma Phase: ±30°
SD SDI Y Black Level: ±10% (Black Clip ON/OFF switchable)
Composite Video Output Gain: – to + 3 dB
Composite Chroma Output Gain: – to + 3 dB
Composite Chroma Phase: ±30°
Composite Y Set Up: ±10%
•System Phase
HD SDI Output : ±5.5H (±1200 Sample, 13.5nS Step)
SD SDI Output: ±5.5H (±9438 Sample, 37nS Step)
Compsite Video Output: ±5.5H (±9438 Sample, 37nS Step)
Compsite Video Output SC: ±180°
LCD Monitor 3" Digtal, Wide view angle, approx. 200,000 pixcels
*LCD monitors are manufactured to an extremely high level of precision, but in parts of the screen there may be some pixels that do not display and some that remain on continuously. Please note that this is not a malfunction and that these pixels will not be recorded onto the tape.
