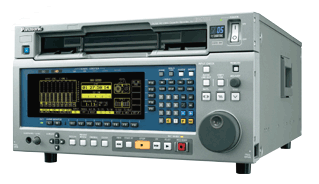

Panasonic Multi Format HD/SD AJ-HD3700B VTR  HD D5 1/2" Digital



Product Code:AJHD3700



FEATURES

  • HD Studio Picture Quality

  • High Quality Film Mastering

  • HD Multi-Format Recording

  • SDTV Compatible

  • 8-channel Digital Audio

  • HD-SD Format Converter Board

  • Variety of Remote Terminals

  • Equipped with HD-SDI/SD-SDI

  • Compact Size, Easy Installation

  • Slow, Search and Edit Functions



AJ-HD3700B [NTSC, PAL] Specifications
General
Power Supply: AJ-HD3700BP; AC 120V , 50/60 Hz
AJ-HD3700BE; AC220V to 240 V, 50/60 Hz
Power Consumption: 260W
Operating Temperature: 41 F to 104 F (5C to 40C)
Operating Humidity: 10% to 90% (non dew)
Weight: 70.1 lbs (31.8 kg)
Dimensions (WxHxD): 16-3/4 x 8-11/16 x 20-1/2 (424 x 220 x 520 mm)
Recording Format: HD:HD-D5 (Video Compression; Intra-Field DCT + VLC)
SD:D5 (Non Compression Digital Component Recording)
Recording Track: Video; 12 track/Field, Audio; 12 track, TC/CTL/CUE Track
Recording Track (576/50i): Video; 16 track/Field, Audio; 16 track, TC/CTL/CUE Track
Rec/Play Time:
(with AJ-D5C124LP)
124 min.(1080/59.94i, 720/59.94P, 480/59.94i,)
155 min.(1080/24PsF, 1080/23.98PsF, 1080/24P, 1080/23.98P)
149 min.(1080/50i, 1080/25P, 1080/25PsF)
112 min (576/50i)
Tape: D5 Cassette Tape
FF/REW Time: within 195 sec. (with AJ-D5C124LP)
Search Speed: 50x
Editing Accuracy: 0 frame (TC)
Tape Timer Accuracy: 1 frame
Servo Lock Time: Within 1 sec
AT Slow-motion Range: 1x to +2x
Video
HDTV Recording
Format: 1080/59.94i, 1080/24PsF, 1080/24P, 1080/23.98PsF,
1080/23.98P, 1080/50i, 1080/25PsF, 1080/25P
720/59.94P
Active Samples/Line Y: 1920, Pb/Pr: 960 (1080)
Y: 1280, Pb/Pr: 640 (720)
Active Lines/Frame 1080 lines (1080)
720 lines (720)
Sampling/Quantization: 4:2:2, Y: 74.176 MHz, Pb/Pr: 37.088 MHz/10 bit
SDTV Recording
Format: 525 line/59.94 field, 2:1 Interlace (SMPTE259M-C)
625 line/50 field/2:1 Interlace (ITU-R BT.656-4)
Active Samples/Line: Y; 720, Pb Pr; 360
Sampling/Quantization: 4:2:2, Y: 13.5 MHz, Pb/Pr: 6.75 MHz/10bit
Digital Audio
Channel: 8 channels (1080/23.98PsF, 1080/23.98P, 1080/24P, 1080/24PsF,
1080/50i, 1080/25PsF, 1080/25P, 576/50i)
4 ch/8 ch selectable (1080/59.94i, 720/59.94P, 480/59.94i)
Sampling Frequency: 48kHz
Quantization: 20 bit (4ch), 24 bit (8ch)
Frequency Response: 20Hz to 20kHz, 0.5dB
Dynamic Range: More than 105dB (1kHz, A weight)
Distortion: within 0.01% (1kHz, reference level)
Cross Talk: Less than 80dB (1kHz, between 2channels)
Wow & Flutter: Below measurable limit
Headroom: 20/18 dB (switchable)
Input/Output Level: +4/0/-20dB switchable
Cue Audio
Frequency Response: 100Hz to 12kHz (3.0dB)
S/N Ratio: More than 44 dB (at 3% distortion)
Distortion: Less than 2% (at 1kHz reference signal)
Wow & Flutter: Less than 0.15% (NAB unlimited)
Input/Output Level: +4/0/-20 dB switchable (Input only)
-
to +18dB adjustable (In/Out)
Video Input
HD SDI In: BNC x 2, Active through 1.5Gbps
(embedded Audio, Time Code) (SMPTE291M/292M)
SD SDI In: BNC x 2 Active through 4:2:2 Component SDI (SMPTE259M/272M)
HD Reference In: BNC x 2 Through Out Analog Tri Level sync. 75 On/Off
SD Reference In: BNC x 2 Through Out Analog Composite 75 On/Off
Video Output
HD SDI Out: BNC x 3, 1.5Gbps
HD SDI Monitor Out: BNC x 1, 1.5Gbps (Superimpose)
SD SDI Out: BNC x 2, 4:2:2 Component SDI Output (SMPTE259M/272M)
SD SDI Monitor Out: BNC x 1 (Superimpose)
Analog Out: BNC x 2, Analog Composite
Analog Monitor Out: BNC x 1, Analog Composite (Superimpose)
Audio Input
Digital Audio In: BNC x 4, Ch1/2, Ch3/4, Ch5/6, Ch7/8, AES-3, 75 unbalanced
Analog Audio In: XLR (3pin) x 4, Ch1/2/3/4 Max. +24dBm 600/high impedance
Cue In: XLR (3pin) x 1 Max. +14dBm, 600/high impedance
Audio Output
Digital Audio Out: BNC x 4, Ch1/2, Ch3/4, Ch5/6, Ch7/8, AES-3, 75 unbalanced
Analog Audio Out: XLR (3pin) x 4, Ch1/2/3/4 Max. +24dBm, low impedance
Cue Out: XLR (3pin) x 1 Max. +14dBm, low impedance
Monitor Out: XLR (3pin) x 2, L/R Max. +24dBm, low impedance
Headphones Out: Level; Variable Control
Others
TC In: XLR x 1, 2.4 1.4Vp-p, 10k balanced
TC Out: XLR x 1, 2.0 + 0.5 Vp-p, low impedance balanced
WFM Out: BNC x 1
RF ENV (Ch 0,1,2,3)/RF EYE (Ch 0,1,2,3)
CTL (R/P CONF)/TC Selectable
SD Sync. Signal: BNC x 1 Black Burst
HD Sync. Signal: BNC x 1, Analog HD Tri Level sync. (+/-0.3V)
Remote
RS-422A In: D-sub 9 pin RS-422A I/F
RS-422A Out: D-sub 9 pin RS-422A I/F
RS-422A In/Out: D-sub 9 pin RS-422A I/F
RS-232C Out: D-sub 25 pin RS-232C I/F
Parallel: D-sub 50 pin
V/A Control: D-sub 15 pin Video Remote
Control Panel: 20P x 1 Connection for Front Control Panel
Optional Accessories
Rack Mount Adaptor: AJ-MA37 (slide rail, not included)
Weight and dimensions shown are approximate.
Features and specifications are subject to change without notice.
These products may be subject to export regulations.
