Panasonic BT-3DL2550E 25.5" 3D Production Display


Panasonic BT-3DL2550

Product code: BT3DL2550E
Buy Sell Sales Panasonic BT-3DL2550



The 25.5" BT-3DL2550 3D LCD Monitor is a powerful 3D production tool with professional features such as dual HD-SDI and DVI interfaces as well as multiple display options. Whether utilized with the AG- 3DA1 fully-integrated Full HD professional 3D camcorder or with 3D rigs, the 3DL2550 displays high-quality, flicker-free 3D content and is equipped with invaluable production tools to help with your 3D production. Designed for broadcast and other professional applications, the full 1920 x1200 resolution display provides exceptional color performance and a ruggedized frame, in addition to offering high-quality 2D performance.

The 3D LCD Video Monitor features a wide color gamut and 10-bit 3D LUT (Look-Up Table) for faithful color reproduction. It is also capable of displaying 3D images for viewing with 3D Polarized Eyewear. The 3DL2550 supports three types of 3D video input: simultaneous, line-by-line and side-by-side. The monitor also features a special 3D display function for image acquisition with rig-type 3D camera systems.

The color space of the 3DL2550 is 102% of the NTSC standard, exceeding the EBU/SMPTE range that can be displayed by ordinary LCD monitors. It accurately reproduces colors that are not easily reproduced by conventional displays – – including CRTs – – to meet the needs of broadcasters and production companies as well as in digital cinema, CG production, printing, publishing, advertising, and research. The 3DL2550 offers six wide color space modes: Adobe RGB y=2.2, y=1.8) and D-Cinema (y=2.6), SMPTE, EBU and ITU-709.


Design and Functionality for Diverse Applications
A Space-Saving 64.8 cm/25.5 inches Full-HD Monitor (3D/2D)

The BT-3DL2550 is a full-HD WUXGA (1920 x 1200 pixel) high resolution IPS monitor. The interface section and operation section are integrated into the compact body. Taking advantage of the slim size and light weight of the LCD panel, this integrated design enhances setup flexibility and simplifies operation.

Function Keys (3D/2D)
Each of the function keys on the front panel can be assigned with a function selected from various display and switchover functions to enable one-touch display ON/OFF or mode change. These function buttons speed operation and customize the functions to the individual user’s needs.

Functions Assignable to Function Keys
HV Delay/Autosetup/Blue Only/Gamma Select/Color Space/SD Aspect/Scan/Two Window/Sub Input Sel./Marker/Level Meter/Cross Hatch/Mono/Time Code/Closed Caption/ Anamo/3D Input Type/Simul Mode/H Mirror/Undef
(Operable functions vary slightly between 3D and 2D.)

A Wealth of Input Terminals Support Multiple Formats (3D/2D)
• SDI (HD/SD): Two SDI inputs with an automatic HD/SD switching function, which can be used for simultaneous 3D input, and one SDI active through output are provided as standard.
• DVI-D (HDCP supported): This terminal can be used for 3D line-by-line/side-by-side input as well as connection of a digital device. It connects to an HDMI cable via a commercially available conversion cable.
* DVI-A (analog) and DVI-DL (Dual Link) are not supported.
• Analog (2D only): Equipped with composite and component (switchable between YPBPR and RGB) terminals. The RGB input
allows the use of the BT-3DL2550 as a PC monitor.

Other Features and Functions (3D/2D)
• RS-232C (9-pin) and GPI (9-pin) remote input terminals
• Tally lamps (red and green)
• Headphone jack
• Silent design with fanless drive ideal for use in editing studios and MA rooms
• Power Save mode reduces power consumption
• Wall-mountable (BT-WMA26G Wall-Mounting Hardware sold separately)

Special Functions for Professional 3D Video Production
Xpol®*1 Polarizing Filter and 3D Polarized Eyewear for 3D Monitoring

The Xpol®*1 polarizing filter, which arranges micro-polarizers in a precise array, is bonded to the front surface of the LCD panel. This allows the viewing of 3D images*2 recorded by the line-byline method using 3D Polarized Eyewear. Two pairs of 3D Polarized Eyewear are supplied with the product. Additional 3D Polarized Eyewear (BT-PGL10G) are available as options.
*1: Xpol® is a registered trademark of Arisawa Mfg. Co., Ltd.
*2: Due to the characteristics of the Xpol®*1 polarizing filter, it is necessary to view 3D
images from a position perpendicular to the LCD panel surface in order to properly perceive 3D effects.

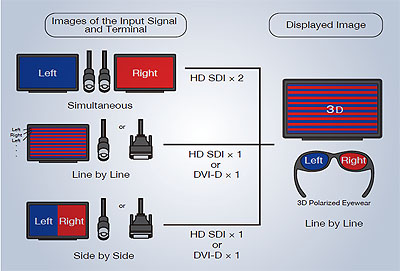

Three 3D Video Input Systems Supported (Simultaneous, Line-by-Line and Side-by-Side)
The BT-3DL2550 supports three 3D video input systems:

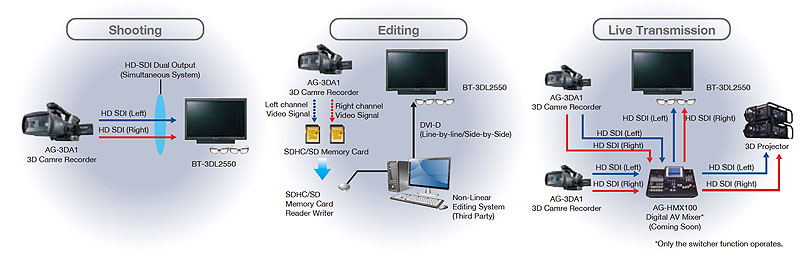

simultaneous, line-by-line and side-by-side. It allows 3D images to be viewed from a line-by-line signal source. It accepts the output from the AG-3DA1 Integrated Twin-Lens 3D Camera Recorder and from existing 3D camera systems such as rig-type 3D camera systems as well as 3DTV broadcast signals, thus meeting virtually all production, editing and transmission needs.
Simultaneous: Outputs left- and right-eye images through separate SDI lines. This system transmits FULL HD 3D video signals.
Line-by-line: Allocates left- and right-eye images to odd-numbered lines and even-numbered lines. Conventional equipment for 2D video can be used with this signal type.
Side-by-side: Splits the screen into left and right halves, and then combines the left and right images for viewing. This system is used mainly for 3DTV broadcasts.

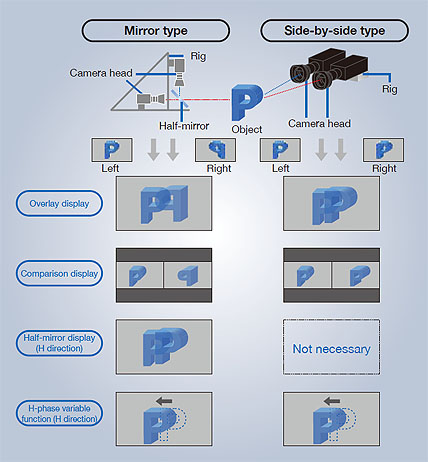

Special 3D Display Function Helps to Use a Rig-Type 3D Camera System
The BT-3DL2550 is equipped with a special display function for adjusting images acquired with a rig-type 3D camera system (mirror type or side-by-side type). The following display/adjustment functions support lens axis adjustment and color matching when receiving simultaneous dual HD SDI inputs from
a rig-type 3D camera system. This allows the BT-3DL2550 to respond widely to professional 3D production needs.
Display Selection: The screen display can be switched to normal 3D image display (line-by-line), overlay display, single channel (Left/Right) display or comparison display.



Overlay Display: Displays left- and right-eye images together.
Single Channel Display: Displays left- or right-eye images.
Comparison Display: Displays left- and right-eye images next to each other.* This display mode is suitable for color matching and gradation adjustment for left-eye and right-eye cameras.
Half Mirror Function: Inverts the right-eye image signal to flip the displayed image in the horizontal direction. This allows the 3D viewing of video input from a mirror type 3D camera system.
H Shift Function: Shifts the image of one channel in the leftright direction while showing an overlay display. This function is convenient for lens axis adjustment.
* The two screen images are the same in size and have an aspect ratio of 16:9. The Marker
function cannot be used in this mode.

Power Supply: 24 V DC, 4.5 A
5 V DC, 0.03 A
AC Adaptor Input: 100 V / 240 V 50 Hz/60 Hz,
1.6 A / 0.6 A
Dimensions (W × H × D): 599 mm × 440 mm × 220 mm (23-5/8 inches × 17-5/16 inches x 8-11/16 inches) - including stand
599 mm × 410 mm × 100 mm (23-5/8 inches × 16-1/8 inches ×3-15/16 inches) - not including stand
AC Adaptor: 232 mm × 50.5 mm × 177 mm (9-1/8 inches × 2 inches × 6-15/16 inches)
Approx. 1.7 kg (3.5 lb)
Weight: Approx. 10.3 kg (22.7 lb) (including stand)
Approx. 8.8 kg (19.4 lb) (not including stand)
Operating Temperature:: 5 °C to 35 °C (41 °F to 95 °F)
Operating Humidity: 20% to 80% (no condensation)
Storage Temperature: 20 °C to 60 °C (-4 °F to 140 °F)
Display Panel Size: 64.8 cm/25.5 inches
Aspect Ratio: 16:10
Resolution: 1920 pixels × 1200 pixels (WUXGA)
Display colors: Approx. 16,770,000 colors
Viewing Angle: 178° (both horizontal and vertical)
Panel surface: Xpol® polarizing panel
Video Input: VIDEO: BNC × 1
SDI: BNC × 2, SMPTE274M/296M/259M-C/ITU-R BT.656-4 standard with embedded audio
YPBPR/RGB: BNC × 3
SYNC/HD:
BNC × 1, SYNC signal level
0.3 V [p-p] to 4.0 V [p-p]
HD signal level: TTL level
VD: BNC × 1, VD signal level TTL level
DVI-D:
DVI-D × 1,
HDCP compatible, TMDS single link
Vertical frequency: 50.0 Hz to 60.0 Hz
Horizontal frequency: 31.5 kHz to 67.5 kHz
Dot clock: 25 MHz to 165 MHz
Video Output: VIDEO: BNC × 1, through out (automatic, 75 Ω termination)
SDI: BNC × 2, active through out
YPBPR/RGB: BNC × 3, through out (automatic, 75 Ω termination)
SYNC/HD: BNC × 1, through out (automatic, 1 kΩ termination)
VD: BNC × 1, through out (automatic, 1 kΩ termination)
Pin jack × 2 (stereo): Signal level 0.5 Vrms
Headphone Output: Stereo mini-jack M3 × 1, 32 Ω, adjustable level
GPI: D-SUB 9-pin × 1
RS-232C: D-SUB 9-pin × 1
External DC Power Input: XLR 4 pins × 1 (for supplied AC adapter)
Signal Level: VIDEO System: SYNC signal level: 0.3 V [p-p] to 4.0 V [p-p] HD/VD signal level: TTL level
AUDIO System:
AUDIO Input signal level: 0.5 Vrms
Headphone output:32 Ω, Adjustable level
SDI Embedded AUDIO:
HD SDI: SMPTE299M standard, 48 kHz, 8 channels, synchronous/asynchronous
SD SDI: SMPTE272M standard, 48 kHz, 4 channels, synchronous
Accessories: 3D Polarized Eyewear (BT-PGL10G) × 2, AC Adaptor (DC cable attachment), Power cable, Power cable hook, Screw (for securing power cable)




Optional Accessories

Panasonic BT-PGL10G

Product Code: BTPGL10G
Buy Sell Sales Panasonic BT-PGL10G


BT-PGL10G

Additional 3D Polarized Glasses
