JVC GY-HM100 VS
Panasonic AG-HMC150 Comparison
|
| Specifications |
JVC
GY-HM700
|
Panasonic AG-HPX300 / Panasonic AG-HPX300
|
| General |
|
|
| Power
Requirements |
DC
12 V (11 V to 17 V) |
DC
12 V (11 V to 17 V) |
| Power
Consumption |
Approx. 23 W (VF, lens, LCD ON) |
Approx. 18 W (VF, lens, LCD ON) |
| Operating
Temperature |
32º to 104º |
32º to 104º |
| Storage
Temperature |
-4º to 122º |
-4º to 140º |
| Humidity |
30%
to 80% RH |
10%
to 85% (no condensation) |
| Weight |
10.5
lbs. (body, SxS unit, lens and battery) |
11
lbs.. (body and lens) |
| Dimensions W x H x
L |
6.6"
x 9.5" x 16.9" (body, SxS unit, lens and battery) |
6.7" x 6.9" x 21.6"
(body and lens) |
| Camera |
|
|
| Image Pickup
Device |
3-chip 1/3"
Progressive CCD |
3-chip 1/3" MOS
Image Sensor |
| Horizontal
Resolution |
More than 1000 TV
lines (Center) |
More than 1000 TV
lines (Center) |
| Electronic
Shutter |
1/6 to 1/10000,
EEI |
1/24 to
1/2000 |
| Variable Frame
Rate |
(HQ 720P mode):
10/12/15/20/24/30/40/48/60 fps |
12//15/18/20/21/22/24/25/26/27/28/30/32/34/36/40/44/48/54/60
fps |
| Minimum
illumination |
1.25lx (typical)
F1.4, +18dB, with 8-frame accum. |
0.8lx (F1.6, +24dB,
Shutter 1/30) |
| Gain |
0dB, 3dB, 6dB, 9dB,
12dB, 15dB, 18dB, ALC |
-3dB, 0dB, 3dB, 6dB,
9dB, 12dB, 24dB |
| Recording
Media |
SDHC Class
6 |
P2
Cards |
| Recording
Format |
MPEG-2 Native .mov
for FCP / MP4 XDCAM EX |
AVC-I 100/50,.
DVCPRO HD,. DVCPRO50,.DVCPRO/DV |
| Recording Data
Rates |
19Mbs (720p), 25Mbs
1080i, 35Mbs 720p/1080i |
25Mbs (DV), 50Mbs,
100Mbs, Intraframe or AVC-I |
| Digital
Audio |
LPCM 2ch, 48
kHz/16bit |
AVC-I 100/50, DVCPRO
HD, DVCPRO50: 48kHz 16bit 4ch; DVCPRO/DV: 48kHz 16bit 2ch/4ch
switchable |
| LCD
Monitor |
4.3" LCD
800x480 |
3.2"
LCD |
| Internal
Speaker |
22mm round shape x1
Adjustable External Unit |
22mm round shape x1
Fixed, Internal |
| Spot Exposure
Meter |
Monitor dynamic
range for accurate exposure |
Not
available |
| Viewfinder |
0.45" LCOS, 1.22
Megapixels (852x480x3) |
0.45" LCOS, 1.22
Megapixels (852x480x3) |
| Lens
Standard |
Standard Kit Lenses:
Canon KT14x4.4KRSJ, Fujinon
TH17x5BRM. No lens option available. |
Standard Kit Lens:
Fujinon XT17x4.5BRM-K14 must purchase with camera. No camera head
only version available. |
| Memory Card
Recorder |
SDHC Class 6 x2
Native .mov & .mp4 / SxS x1 .mp4 with
KAMR100G SxS Media Recorder |
P2 Cards
x2 |
|
|

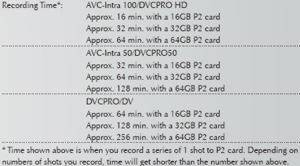

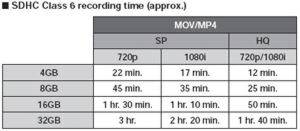

| Recording Time |
|
 |
| Codes
Mode |
|
 |
|
| Specifications |
JVC GY-HM700 |
Panasonic AG-HPX300 |
| Connectors: |
|
|
|
HD-SDI/SDI
|
BNCx1 |
BNCx2 |
| Analog composite |
BNCx1 |
BNCx1 |
| Genlock In |
No |
BNCx1 |
|
TC In & Out |
No |
BNCx2 |
|
Component Video |
BNCx3 |
No |
|
MIC In |
XLR (3pin) x2, +49v compatible,
-60dB |
XLR (3pin) x2, +49v compatible, -40dB, -50dB,
-60dB (Switchable in menu) |
|
Line In |
XLR (3pin) x2, +4 dB, 10k-ohms |
XLR (3pin) x2 (ch1/ch2), Line/MIC/+48v
switchable,.
LINE: 0 dB |
|
Earphone |
3.5mm Mini Jack (stereo) x2 |
3.5mm Mini Jack (stereo) |
|
Remote |
DIN 6-pin |
DIN 10-pin |
|
IEEE 1394 Output |
4-pin |
6-pin |
|
USB |
Mini USB-B type 4-pin, USB 2.0, device
function |
Mini USB-B type 4-pin, USB 2.0, device & host
function |
|
Lens Mount |
Standard 1/3" bayonet system |
Standard 1/3" bayonet system |
|
Supplied Accessories: |
Microphone x 1 |
Shoulder Strap x1, Microphone not
included |
|
