Datavideo TLM-434H

TLM-434H

4x4.3” HD LCD Monitor with SDI/HDMI Inputs

Popular Product GoPro Roland Black Magic  Clear Com Mackie Steinberg AJA Sony Panasonic JVC AG-DVX200 Contact Email us Visit Us Online Shop
Home < Main < LCD Monitor < TLM-434H

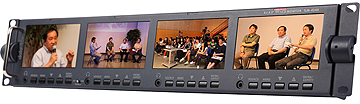

DataVideo TLM-434H 4 x 4.3" HD/SD TFT LCD Monitor

DataVideo TLM-434
Product Code: TLM434H

Buy Sell Sales DataVideo TLM-434H

Built within a robust steel and aluminium 19-inch rack mountable design, this bank of both HD & SD 4.3-inch (16:9 and 4:3) high quality TFT LCD monitors are perfect for integration.

Each monitor has individual adjustments for contrast, brightness and colour saturation as well a LED tally light indication.

Connection includes HD-SDI, SD-SDI and HDMI Inputs. Embedded audio is supported on both SDI & HDMI, with superimposed on-screen audio and time code indicator.

All four of the SDI inputs include a seamless bypass, ensuring the monitor is an ideal companion for switches. They are also perfect for integration within system racks, OB Van, studios or many more applications.



Image Control
Individual adjustment for contrast, brightness and colour saturation
DataVideo TLM-434

19-Inch Rack Mountable
19-inch robust steel and aluminium design, tilt up to 90 degrees perfect integration
DataVideo TLM434

Video Inputs
HD-SDI/SD-SDI & HDMI input. Each SDI inputs with seamless bypass
DataVideo TLM-434

Resolution
RGB 480x272 pixel, 16:9 & 4:3 PAL/NTSC auto recognition
DataVideo TLM434


Time Code Indicator
DataVideo TLM 434

Audio Peak Meter
DataVideo TLM-434

Blue Only Function
DataVideo TLM 434

Colour Temperature Adjustment
DataVideo TLM-434

• Tally Indicator
Standard 15-pin tally connector for easy integration with existing equipment

DataVideo TLM434

LCD Display 4 x 4.3” TFT LCD
Resolution  RGB 480 x 272 pixel
Aspect Ratio 4:3 and 16:9 selectable
Brightness 500 cd/m²
Contrast Ratio 300
View Angle Top: 40 deg / Bottom: 60 deg
Left: 60 deg / Right: 60 deg
When using available 2U 19'' rack mount this product can support the following
adjustable view angle (Tilt 45 degree viewing angle)
Video Input

HD-SDI / SDI (SMPTE 259M-C (270Mbps - 525/625 Component Video) and
SMPTE 292M (1.485/1.001 Gbps)
HDMI (Ver.1.1)
Video System NTSC/PAL auto recognition
Colour Adjustment Brightness, Contrast, Colour Saturation
Tally Indication  1 per monitor
Operation condition Operation temperature from 0􀔨 to 50􀔨, RH less than 90%
Power Consumption DC 12V / 2A (23W)
Weight Gross Packed 2.38 Kg (5.25 lbs) Nett Unit only 1.58 Kg (3.48 lbs)
