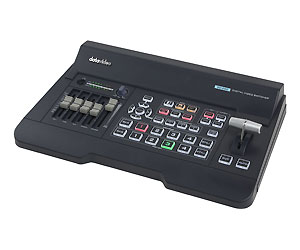

The Datavideo SE-650 is a small,
cost-effective, professional HD
digital video switcher. It offers
two HD-SDI and two HDMI inputs that
support video formats up-to 1080i.
It features two HDMI outputs and
a user assignable HD-SDI output.
The SE-650 is the perfect device
for small scale video production
using professional cameras and HDMI
equipment. The SE-650 also features
an audio mixer with microphone and
unbalanced RCA audio inputs.
Advanced tools include Chromakey,
Luma key, PiP, wipe generator, still
store and tally.
Highlights: - 4 Input HD
digital video switcher - Inputs:
2 x HD-SDI, 2 x HDMI - Outputs: 1
x HD-SDI, 2 x HDMI - Any Input
can be used as a Frame store (Stills
Store) - Assignable Outputs:
Program (w/ LOGO), Clean Program
(w/o LOGO), Clean Preview (w/o
LOGO), Multiview - Frame Sync on
each input - Flexible Mix/Effects
Processor with 1 Upstream Keyer,
supporting Chromakey & Linear/ Luma
Key - 1 Upstream PIP, supporting
Chromakey & Luma Key - Wipe
Generator: 32 Wipe Patterns,
including Circle & Heart - Borders &
Softness Control - Full M/E
Preview function - Logo insertion
- XPT (Cross Point Assignment) -
Tally Output - 6 Channel Audio
Mixer - Audio inputs: 2 x RCA
Analogue (L/R), 2 x Microphone -
Audio outputs: 2 x RCA Analogue
(L/R), 1 x Stereo headphone mini
Jack - Audio em-bedded function
- Multi-language support
|
Interfaces |
Video Inputs |
2 x HDMI 2 x HD-SDI |
Video Outputs |
2 x HDMI (HDMI 1 is user
assignable / HDMI 2 is
Multiview) 1 x
HD-SDI (User assignable) |
Audio Inputs |
1 x Stereo RCA (L/R)
2 x Mono Microphone
De-embedded Digital
Audio (2 CH) |
Audio Outputs |
1 x Stereo RCA (L/R)
1 x Stereo headphone
(Mini Jack with volume
control) Embedded
Digital Audio (2 CH /
Channel 1 & 2) Tally
Yes / D-Sub 15 male
connector Software
Update USB Port |
Audio Mixer |
Audio Fader |
5 VR (Variable Resistor)
6 Channel (3 Pair)
Audio Mixer |
Audio LED Meter |
2 Rows (Left/Right) |
Standards |
Supported Resolutions |
1080i/50, 1080i/59.94,
1080i/60, 720p/50,
720p/59.94, 720p/60 |
Internal Processing |
YUV 4:2:2 10-bit |
Extras |
Keyers |
2 Keyers (2 Chroma
Keyers); linear and luma
keyer |
Upstream Keyers |
2 (M/E Keyer & PIP) |
Chroma Keyers |
2 High Quality Chroma
Keyers; available in
Keyer and PIP |
PIP |
1 x PIP with adjustable
size, position, and
crop. Border with
adjustable width & color |
Wipes |
32 Wipe Patterns such as
Circle and Heart.
Variable border width
with Softness control. |
Stills |
Any unused channel can
also be used as a still
buffer. Stills can be
stored internally |
Stinger Transitions |
Yes |
Logo |
1 |
|
|
