Atomos Shogun Studio 4K/HD Recorder, Monitor


Atomos Shogun Studio
Product Code : SHOGUNSTUDIO
Buy Sell Sales Atomos Shogun Studio
review button
facebook sharegoogle share

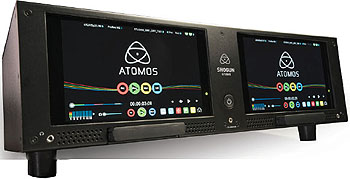

Harnessing the latest 4K/HD recorder, monitor and playback technologies the Shogun Studio enhances existing HD workflows and provides an affordable rack mount solution for creating 4K Masters.

Simultaneously record 4K, HD AND RAW in 4:2:2 10-bit edit ready codecs
Dual Record channels provides the ability to simultaneously record 2 separate inputs in your choice of resolution and codec. It also gives you the choice to record 2 versions of the same input for parity or to suit your workflow. Perfect for recording 4K Masters with HD
deliverables or Full Resolution RAW to ProRes/DNxHR with lightweight proxies or dailies.

Dual 7" monitors with scopes
Full playback controls allow collaboration on set to review content the moment it's captured, using the full suite of monitor tools on screen or out to a larger HDMI or SDI monitor. There is even 4K to HD downscaling to connect with existing HD infrastructure.

Control protocols to suite you operation
Offering the lightning fast touch screen interface of the AtomOS for in rack control, remote control via AMP over ethernet and RS422 Machine control protocols to suit your operation via 9 pin din for flexibility in both Rec and Playback. You can also cascade trigger controls to enable multiple recorders to start recording from a single input.

Metadata tagging at point of acquisition
Save time in post by tagging your captured content the moment you review on set. Mark using 10 tags including Favorite/Reject in record or
playback mode & even mark the i/o points for the tags. Create custom playlist of favorites which respects subclip i/o points, selected clips or all clips with either a rundown or reverse order playback. Then save them out as an XML to the drive and drop straight onto the
timeline of your choice of NLE.

Weight & Dimensions

Weight 5.0kg / 11lb
Rack height 3Ru
Rack mounting Removable rack ears
Dimensions (W x H x D mm) 447 x 152 x 251mm, 17.6 x 6.0 x 9.9" (without rack ears)
490 x 152 x 251mm, 19.3 x 6.0 x 9.9" (with rack ears)
Construction Steel construction for durablility
Cooling Actively controlled fan with heat sinks

Power

Operating power 20 - 60W
Redundant PSU Yes
Compatible batteries No
Input voltage (battery) -
DC Out No
Continuous power
* Patent pending
-

Touchscreen

Size 7.1"
Resolution 1920 x 1200
PPI 320
Aspect ratio 16:9 native
Color standard Rec.709 HDTV
Look up table (LUT) support 3D LUT (.cube file format)
Technology SuperAtom IPS panel (capacitive touch), calibration to Rec.709 with optional Atomos Spyder
Video analysis tools Luma waveform, RGB parade, Vectorscope, Vectorscope zoom
Calibration Calibration in factory to Rec.709, in field calibration with optional Spyder

Video input/loop out

HDMI 1 x HDMI (1.4b) per channel
SDI 1 x 4K-SDI 12G/6G or HD-SDI 3G/1.5G (SMPTE) per channe
Signal Uncompressed true 10-bit or 8-bit 422 (camera dependent)

Video output (play out)

HDMI 1 x HDMI (1.4b) per channel
SDI 1x 4K-SDI 12G/6G or HD-SDI 3G/1.5G (SMPTE) per channe
Signal Uncompressed true 10-bit or 8-bit 422 (playback file dependent)

Supported formats (Record & Playback)

4K - DCI RAW 4096x2160 to Supported cameras;
Sony FS700, FS7 Canon C300MKII, C500
Apple ProRes
HQ, 422, LT
DNxHR
HQX, HQ, SQ, LB
4K-UHD 3840x2160 8/10-bit 4:2:2 to Apple ProRes
HQ, 422, LT
DNxHR
HQX, HQ, SQ, LB
1920x1080 8/10-bit 4:2:2 to Apple ProRes
HQ, 422, LT
DNxHD
220x, 220, 145, 36
1280x720 8/10-bit 4:2:2 to Apple ProRes
HQ, 422, LT
DNxHD
220x, 220, 145, 36

Onboard Processing

Pulldown removal 24/25/30pSF > 24/25/30p (2:2 pulldown)
60i > 24p (3:2 pulldown)
HDMI < > SDI conversion Yes - Always on
4K - UHD to HD downscale On HDMI/SDI loop out (Rec & Playout)

Audio in/out (48kHz PCM audio)

HDMI 2 or 8ch 24-bit, camera dependent
SDI 12ch 48kHz 24-bit
Analogue audio 2 x XLR in & 2 x XLR out on rear per record channel.
Mic or line level with phantom 48V
Processing Gain control on line in & headphone output
Maximum audio quality 24-bit, 48kHz
Audio delay Delay setting +1 to 99 frames

Remote control

HDMI Auto HDMI Trigger
Supported Protocols - Canon, Sony, Atomos Open Standard
SDI SDI trigger camera selectable
RS422 RS422 machine control
AMP via Ethernet RJ45 10/100
Serial Calibration (front)

Timecode

HDMI Embedded timecode from camera or video device
SDI Embedded timecode from camera or video device
LTC In Yes (LTC loop back)
GenLock In Yes (GenLock loop back)

Playback

Playlist Yes (run down or reverse order) for selected, favorite or all clips
Playback options Loop in & out markers

Recording

Dual channel Record 4K master with HD proxies. Record both ProRes & DNxHR versions, independent dual channel record.
Continuous record Single channel 4K / HD recording automatically switches between drive when at capacity
Pre-roll record Yes (HD 8s, 4K 2s)
Custom timelapse Yes (Key frameable up to 10 video and single frame Intervals, can be triggered from internal clock).
Meta data tagging Yes (10 tags available)

Recording media

Drive slots 2 (1 per record channel)
Drive connection types SATA
Supported media
(Approved List Only)
4K / HD (50/60/120p*)
CFast 2.0, SSD 2.5", HDD (HD 50/60 only - 7,200 up to 1080p60)

HD
CFast 1.0, SSD 2.5", HDD (5,400 up to 1080p30)
Master caddy case Master Caddy II (included)
75mm x 105mm x 12mm
Master caddy dock 2.5" SATA to USB 2.0/3.0
Supported applications FCPX/FCP7+ / Media Composer 5.0+ / Premiere 5.5+, EDIUS 6.0+ /
Vegas Pro 10+ / Lightworks / Autodesk Smoke 2015
XML support FCPX XML native, FCP7 supported with conversion (Adobe compatible)
Accessories included Shogun Studio unit, 2x Rack ears with screws, 5x Master Caddy II, 4x Rubber feet,
2x Large rubber feet, 2x IEC power cable, 1x Screen cleaning cloth
Optional extras Master Caddy II x 5, Spyder calibration
Warranty 1 year. Extended to 3 years on product registration

• 1x Shogun Studio unit
• 2x Rack ears with screws
• 5x Master II Caddies
• 4x Rubber feet
• 2x Large rubber feet (for elevating the front of the unit)
• 2x IEC power cable (or external PSU for Japan)
• 1x Screen cleaning cloth
• 1x Quick Start Guide
